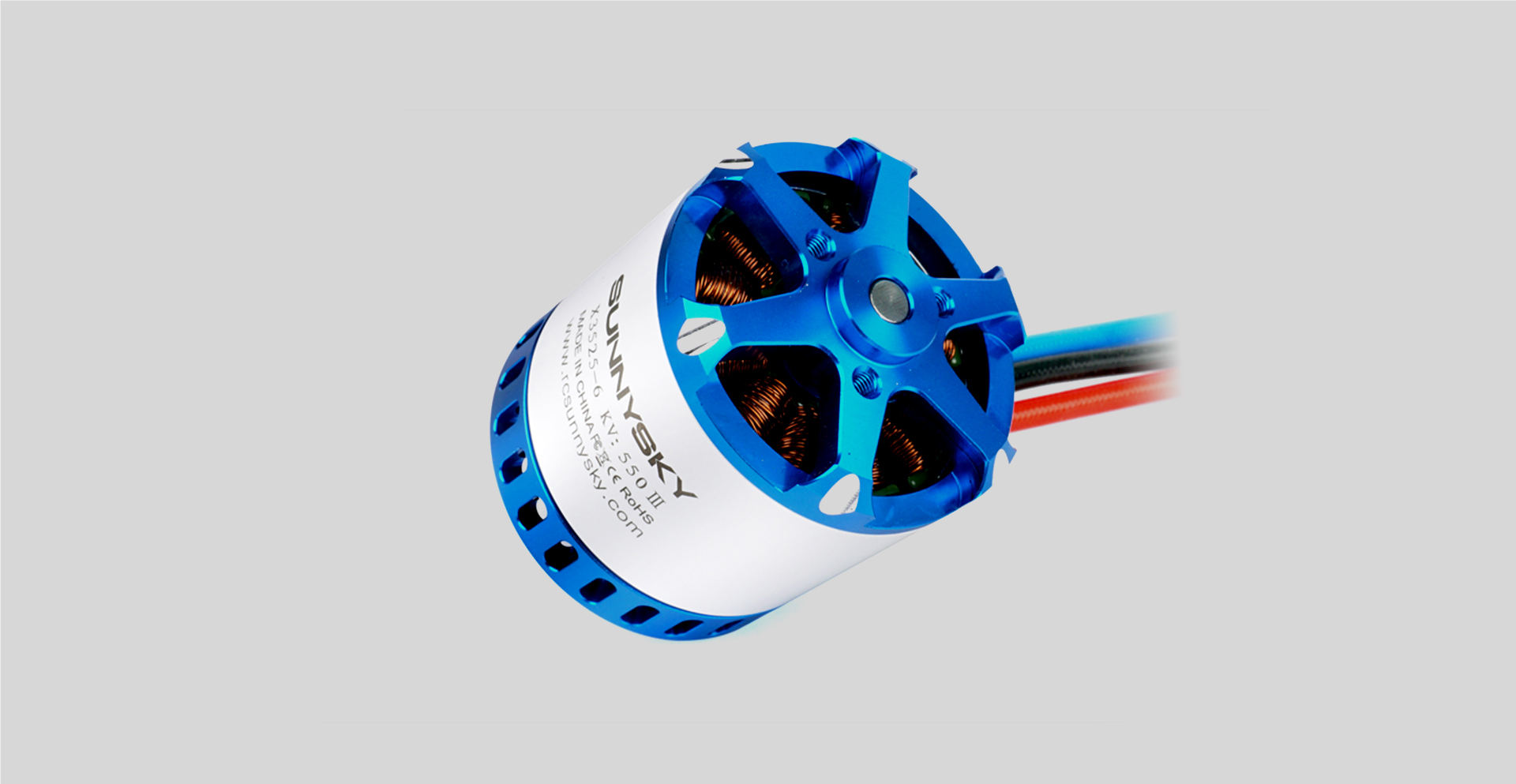

| Motor Model / KV | X3525-III/ KV465 | X3525-III/ KV550 | X3525-III/ KV650 | X3525-III/ KV810 | X3525-III/ KV1080 | X3525-III/ KV400 | X3525-III/ KV250 |
|---|---|---|---|---|---|---|---|
| Stator/Rotor Poles | 12N14P | 12N14P | 12N14P | 12N14P | 12N14P | 12N14P | 12N14P |
| Internal resistance | 26mΩ | 20.9mΩ | 15.2mΩ | 10.1mΩ | 6mΩ | 39mΩ | 65mΩ |

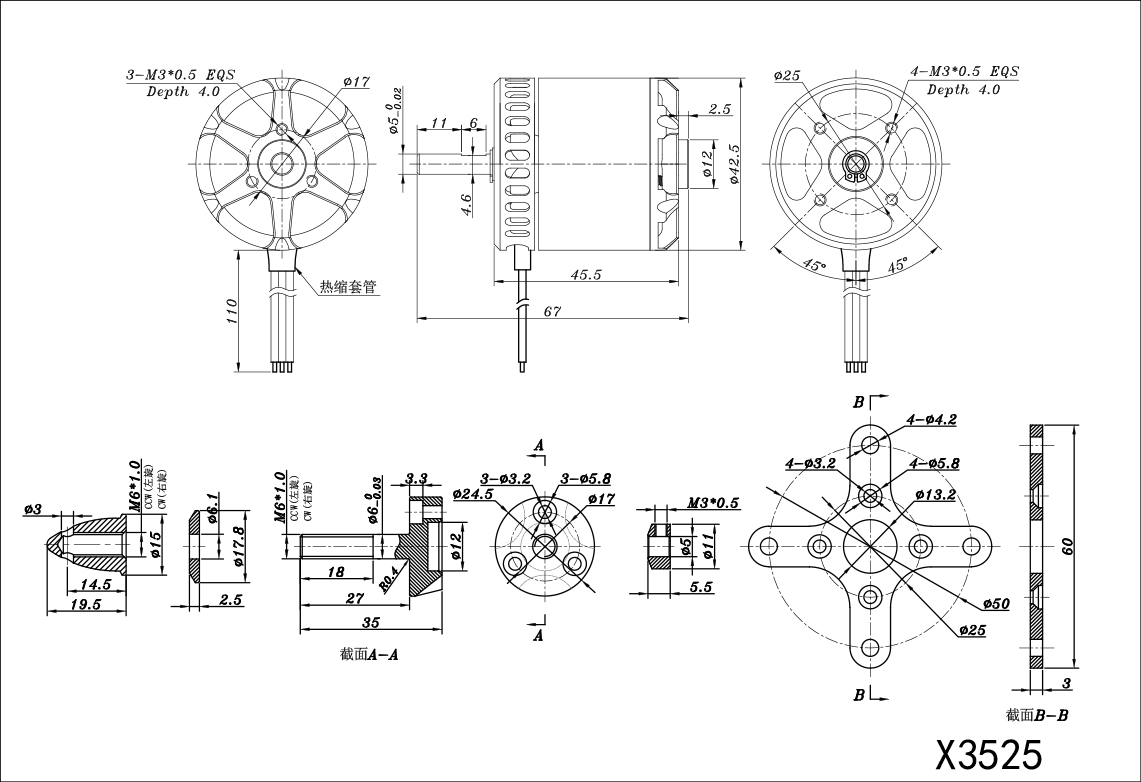

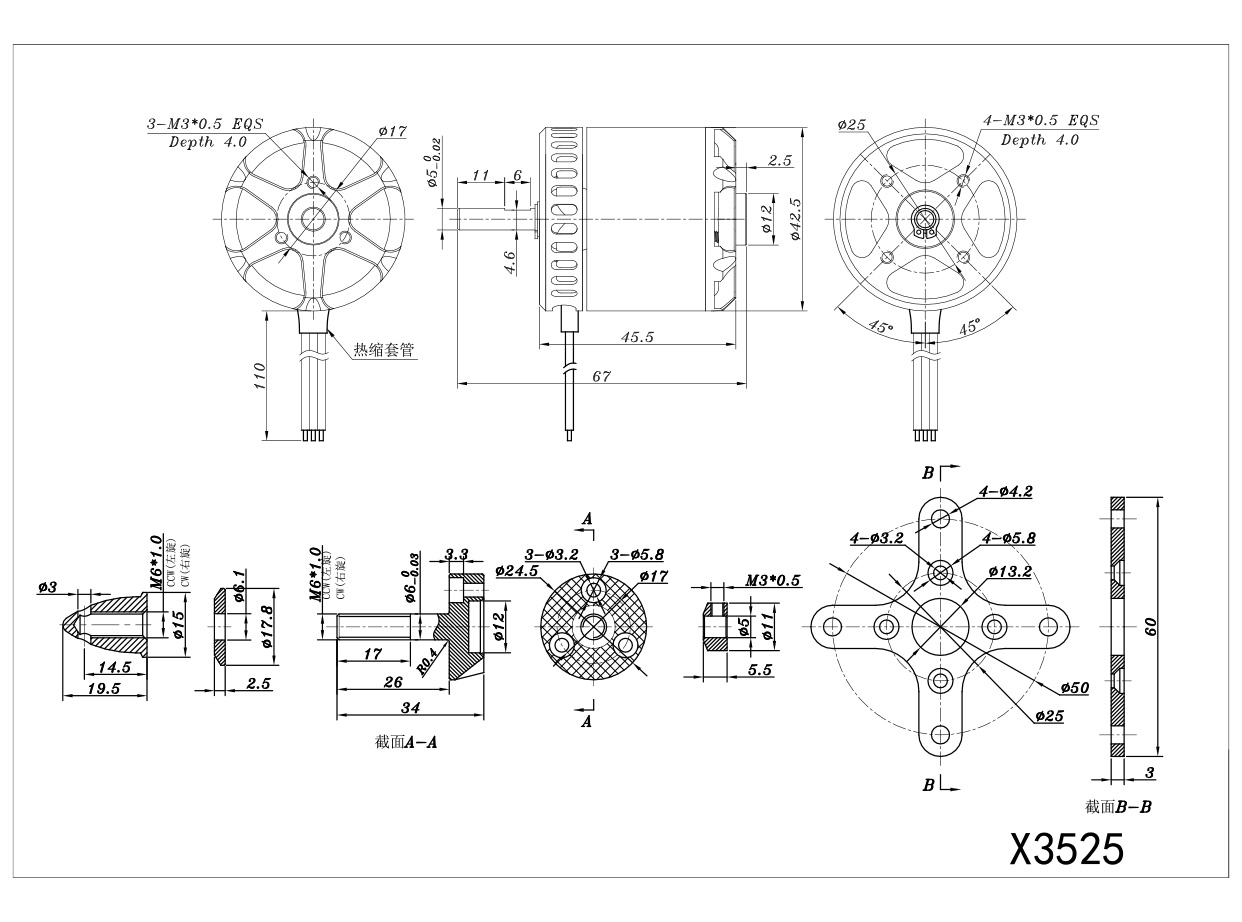

| Motor size | φ42.5*48mm |
φ42.5*48mm |
φ42.5*48mm |
φ42.5*48mm |
φ42.5*48mm |
φ42.5*48mm |
φ42.5*48mm |
| Shaft diameter | 5.0mm | 5.0mm | 5.0mm | 5.0mm | 5.0mm | 5.0mm | 5.0mm |
| AWG | 20AWG 110mm | 20AWG 110mm | 20AWG 110mm | 20AWG 110mm | 20AWG 110mm | 20AWG 110mm | 20AWG 110mm |
| Motor weight(wire included) | 252g | 252g | 252g | 258g | 260g | 252g | 252g |
| Motor weight(wire excluded) | No data | No data | No data | No data | No data | No data | No data |
| Rated operational voltage | 6S | 6S | 4-6S | 4S | 3S | 6S | 8-12S |
| No-load current | 1.1A/10V | 1.3A/10V | 1.6A/10V | 2.35A/10V | 3.3A/10V | 1.1A/10V | 0.5A |
| Maximum continuous power | 1350W | 2000W | 2080W | 1850W | 1100W | 950W | 2000W |
| Maximum continuous current | 54A/30s | 88A/30s | 90A/30s | 110A/30s | 110A/30s | 38A/30s | 40A/30s |
| ESC recommended use | SUNNYSKY 80A | 80-100A | 80-100A | 100-120A | 100A | SUNNYSKY 80A | SUNNYSKY 130A |
| Propeller size recommended use | EOLO13*7 13*8 14*7 14*8 | EOLO 14*7 13*7 14*8 | 6S（12*8 12*10 12*12 13*7）5S(EOLO14*8 14*7 13*7) 4S(EOLO15*8 15*10) | 4S (EOLO15*8/14*8/14*7/13*7) | 3S (EOLO14*8/14*7/13*7) | EOLO13*7 13*8 14*7 14*8 | EOLO13*8 14*8 |
Specifications | 3525-III | Max Continuous Current | 54A/30s |
Stator Diameter | 35mm | Max Continuous Power | 1350W |
Stator Thickness | 25mm | Weight | 252g |
No.of Stator Slots | 12 | Rotor Diameter | 42.5mm |
No.of Rotor Poles | 14 | Body Length | 48mm |
Motor Kv | 465 | Max Lipo Cell | 6S |
NO-Load Current(A/10V) | 1.1A | ESC | SUNNYSKY 80A |
Motor Resistance | 26mΩ | Recommend Prop(inch) | EOLO13*7 13*8 14*7 14*8 |
Propeller (inch) | Voltage (V) | Current (A) | Thrust (g) | Watts (W) | Efficiency (g/W) | RPM | Load temperature in 100%6 throttle |
EOLO 13*7 | 22.2 | 2.7 | 500 | 59.94 | 8.34 | 3660 |
|
4.4 | 750 | 97.68 | 7.68 | 4481 | |||
6.4 | 1000 | 142.08 | 7.04 | 5105 | |||
8.5 | 1250 | 188.7 | 6.62 | 5654 | |||
10.9 | 1500 | 241.98 | 6.20 | 6211 | |||
13.6 | 1750 | 301.92 | 5.80 | 6623 | |||
16.5 | 2000 | 366.3 | 5.46 | 7054 | |||
23 | 2500 | 510.6 | 4.90 | 7957 | |||
34.2 | 3300 | 759.24 | 4.35 | 8966 | |||
25 | 2.4 | 500 | 60 | 8.33 | 3658 | ||
4 | 750 | 100 | 7.50 | 4478 | |||
5.8 | 1000 | 145 | 6.90 | 5100 | |||
7.8 | 1250 | 195 | 6.41 | 5645 | |||
9.9 | 1500 | 247.5 | 6.06 | 6213 | |||
12.2 | 1750 | 305 | 5.74 | 6620 | |||
14.7 | 2000 | 367.5 | 5.44 | 7048 | |||
20.6 | 2500 | 515 | 4.85 | 7952 | |||
27.5 | 3000 | 687.5 | 4.36 | 8689 | |||
41.8 | 4000 | 1045 | 3.83 | 9850 | 80℃ | ||
EOLO 13*8 Folding Paddle | 22.2 | 2.8 | 500 | 62.16 | 8.04 | 3810 |
|
4.8 | 750 | 106.56 | 7.04 | 4678 | |||
7 | 1000 | 155.4 | 6.44 | 5359 | |||
9.6 | 1250 | 213.12 | 5.87 | 5942 | |||
12.3 | 1500 | 273.06 | 5.49 | 6475 | |||
15.6 | 1750 | 346.32 | 5.05 | 7044 | |||
19.2 | 2000 | 426.24 | 4.69 | 7419 | |||
27.5 | 2500 | 610.5 | 4.10 | 7684 | |||
37.6 | 3130 | 834.72 | 3.75 | 8700 | |||
25 | 2.6 | 500 | 65 | 7.69 | 3815 | ||
4.4 | 750 | 110 | 6.82 | 4674 | |||
6.5 | 1000 | 162.5 | 6.15 | 5352 | |||
8.7 | 1250 | 217.5 | 5.75 | 5944 | |||
11.3 | 1500 | 282.5 | 5.31 | 6470 | |||
13.9 | 1750 | 347.5 | 5.04 | 7039 | |||
17.3 | 2000 | 432.5 | 4.62 | 7425 | |||
24.5 | 2500 | 612.5 | 4.08 | 7980 | |||
32.9 | 3000 | 822.5 | 3.65 | 8725 | |||
46.7 | 3830 | 1167.5 | 3.28 | 9644 | 77℃ | ||
EOLO 14*7 | 22.2 | 2.4 | 500 | 53.28 | 9.38 | 3215 |
|
4 | 750 | 88.8 | 8.45 | 3925 | |||
5.8 | 1000 | 128.76 | 7.77 | 4528 | |||
7.8 | 1250 | 173.16 | 7.22 | 5060 | |||
10 | 1500 | 222 | 6.76 | 5549 | |||
12.3 | 1750 | 273.06 | 6.41 | 5941 | |||
14.9 | 2000 | 330.78 | 6.05 | 6332 | |||
20.6 | 2500 | 457.32 | 5.47 | 7079 | |||
27.2 | 3000 | 603.84 | 4.97 | 7750 | |||
40 | 3980 | 888 | 4.48 | 8710 | |||
25 | 2.2 | 500 | 55 | 9.09 | 3218 | ||
3.7 | 750 | 92.5 | 8.11 | 3927 | |||
5.3 | 1000 | 132.5 | 7.55 | 4531 | |||
7 | 1250 | 175 | 7.14 | 5055 | |||
9 | 1500 | 225 | 6.67 | 5548 | |||
11.1 | 1750 | 277.5 | 6.31 | 5934 | |||
13.5 | 2000 | 337.5 | 5.93 | 6329 | |||
18.6 | 2500 | 465 | 5.38 | 7075 | |||
24.7 | 3000 | 617.5 | 4.86 | 7719 | |||
38.1 | 4000 | 952.5 | 4.20 | 8755 | |||
49.7 | 4800 | 1242.5 | 3.86 | 9466 | 6min 100℃ | ||
EOLO 14*8 | 22.2 | 2.6 | 500 | 57.72 | 8.66 | 3172 |
|
4.2 | 750 | 93.24 | 8.04 | 3875 | |||
6.1 | 1000 | 135.42 | 7.38 | 4427 | |||
8.1 | 1250 | 179.82 | 6.95 | 5031 | |||
10.6 | 1500 | 235.32 | 6.37 | 5365 | |||
13.2 | 1750 | 293.04 | 5.97 | 5810 | |||
15.8 | 2000 | 350.76 | 5.70 | 6141 | |||
22 | 2500 | 488.4 | 5.12 | 6850 | |||
29.1 | 3000 | 646.02 | 4.64 | 7474 | |||
43.9 | 4080 | 974.58 | 4.19 | 8655 | |||
25 | 2.3 | 500 | 57.5 | 8.70 | 3175 | ||
3.8 | 750 | 95 | 7.89 | 3869 | |||
5.5 | 1000 | 137.5 | 7.27 | 4426 | |||
7.4 | 1250 | 185 | 6.76 | 5029 | |||
9.5 | 1500 | 237.5 | 6.32 | 5366 | |||
11.6 | 1750 | 290 | 6.03 | 5821 | |||
14.3 | 2000 | 357.5 | 5.59 | 6139 | |||
19.6 | 2500 | 490 | 5.10 | 6840 | |||
25.9 | 3000 | 647.5 | 4.63 | 7495 | |||
40.6 | 4000 | 1015 | 3.94 | 8620 | |||
53.9 | 4890 | 1347.5 | 3.63 | 9300 | 5min 115℃ |
Specifications | 3525 | Max Continuous Current | 88A/30s |
Stator Diameter | 35mm | Max Continuous Power | 2200W |
Stator Thickness | 25mm | Weight | 252g |
No.of Stator Slots | 12 | Rotor Diameter | 42.5mm |
No.of Rotor Poles | 14 | Body Length | 48mm |
MotorKv | 550 | MaxLipo Cell | 6S |
NO-Load Current(A/10V) | 1.3A | ESC | 80-100A |
Motor Resistance | 20.9mΩ | Recommend Prop(inch) | EOLO 14*7 13*7 14*8 |
Propeller (inch) | Voltage (V) | Amps (A) | Thrust(g) | Watts (W) | Efficiency (g/W) | RPM | Load temperature in 100% throttle |
EOLO 13*7 | 22.2 | 2.4 | 500 | 53.28 | 9.38 | 3620 |
|
4 | 750 | 88.8 | 8.45 | 4348 | |||
5.7 | 1000 | 126.54 | 7.90 | 5032 | |||
7.9 | 1250 | 175.38 | 7.13 | 5611 | |||
10 | 1500 | 222 | 6.76 | 6112 | |||
12.6 | 1750 | 279.72 | 6.26 | 6590 | |||
15.4 | 2000 | 341.88 | 5.85 | 7022 | |||
18.1 | 2250 | 401.82 | 5.60 | 7440 | |||
21.3 | 2500 | 472.86 | 5.29 | 7771 | |||
24.5 | 2750 | 543.9 | 5.06 | 8178 | |||
28.1 | 3000 | 623.82 | 4.81 | 8414 | |||
35.2 | 3500 | 781.44 | 4.48 | 9147 | |||
48.9 | 4290 | 1085.58 | 3.95 | 9997 | |||
25 | 2.2 | 500 | 55 | 9.09 | 3640 | ||
3.6 | 750 | 90 | 8.33 | 4383 | |||
5.25 | 1000 | 131.25 | 7.62 | 5049 | |||
7.2 | 1250 | 180 | 6.94 | 5690 | |||
9.15 | 1500 | 228.75 | 6.56 | 6180 | |||
11.4 | 1750 | 285 | 6.14 | 6486 | |||
13.9 | 2000 | 347.5 | 5.76 | 7030 | |||
16.4 | 2250 | 410 | 5.49 | 7360 | |||
19.1 | 2500 | 477.5 | 5.24 | 7817 | |||
21.8 | 2750 | 545 | 5.05 | 8184 | |||
25 | 3000 | 625 | 4.80 | 8423 | |||
31.5 | 3500 | 787.5 | 4.44 | 9134 | |||
39 | 4000 | 975 | 4.10 | 9692 | |||
60.9 | 5130 | 1522.5 | 3.37 | 10809 | 117℃ 3min20s | ||
EOLO 14*7 | 22.2 | 2.1 | 500 | 46.62 | 10.73 | 3214 |
|
3.6 | 750 | 79.92 | 9.38 | 4020 | |||
5.2 | 1000 | 115.44 | 8.66 | 4555 | |||
7.1 | 1250 | 157.62 | 7.93 | 5072 | |||
9.3 | 1500 | 206.46 | 7.27 | 5475 | |||
11.3 | 1750 | 250.86 | 6.98 | 5867 | |||
13.8 | 2000 | 306.36 | 6.53 | 6282 | |||
16.4 | 2250 | 364.08 | 6.18 | 6657 | |||
19.4 | 2500 | 430.68 | 5.80 | 6958 | |||
22.2 | 2750 | 492.84 | 5.58 | 7286 | |||
25.3 | 3000 | 561.66 | 5.34 | 7613 | |||
32.5 | 3500 | 721.5 | 4.85 | 8115 | |||
39.7 | 4000 | 881.34 | 4.54 | 8656 | |||
58.7 | 5090 | 1303.14 | 3.91 | 9603 | |||
25 | 1.9 | 500 | 47.5 | 10.53 | 3220 | ||
3.2 | 750 | 80 | 9.38 | 3957 | |||
4.7 | 1000 | 117.5 | 8.51 | 4537 | |||
6.4 | 1250 | 160 | 7.81 | 5020 | |||
8.3 | 1500 | 207.5 | 7.23 | 5436 | |||
10.3 | 1750 | 257.5 | 6.80 | 5892 | |||
12.5 | 2000 | 312.5 | 6.40 | 6248 | |||
14.6 | 2250 | 365 | 6.16 | 6653 | |||
17.2 | 2500 | 430 | 5.81 | 6962 | |||
20 | 2750 | 500 | 5.50 | 7240 | |||
22.4 | 3000 | 560 | 5.36 | 7620 | |||
28.8 | 3500 | 720 | 4.86 | 8080 | |||
35.6 | 4000 | 890 | 4.49 | 8657 | |||
51.7 | 5000 | 1292.5 | 3.87 | 9634 | |||
71.2 | 6070 | 1780 | 3.41 | 10304 | 125℃ 2min30s | ||
EOLO 14*8 | 22.2 | 2.3 | 500 | 51.06 | 9.79 | 3082 |
|
3.7 | 750 | 82.14 | 9.13 | 3777 | |||
5.4 | 1000 | 119.88 | 8.34 | 4269 | |||
7.4 | 1250 | 164.28 | 7.61 | 4790 | |||
9.7 | 1500 | 215.34 | 6.97 | 5200 | |||
11.9 | 1750 | 264.18 | 6.62 | 5660 | |||
14.65 | 2000 | 325.23 | 6.15 | 6048 | |||
17.3 | 2250 | 384.06 | 5.86 | 6290 | |||
20.1 | 2500 | 446.22 | 5.60 | 6616 | |||
23 | 2750 | 510.6 | 5.39 | 6939 | |||
26.5 | 3000 | 588.3 | 5.10 | 7200 | |||
33.6 | 3500 | 745.92 | 4.69 | 7813 | |||
42.1 | 4000 | 934.62 | 4.28 | 8258 | |||
64.9 | 5180 | 1440.78 | 3.60 | 9278 | |||
25 | 1.9 | 500 | 47.5 | 10.53 | 3100 | ||
3.3 | 750 | 82.5 | 9.09 | 3775 | |||
4.8 | 1000 | 120 | 8.33 | 4280 | |||
6.5 | 1250 | 162.5 | 7.69 | 4800 | |||
8.6 | 1500 | 215 | 6.98 | 5215 | |||
10.6 | 1750 | 265 | 6.60 | 5626 | |||
12.8 | 2000 | 320 | 6.25 | 6003 | |||
15.3 | 2250 | 382.5 | 5.88 | 6393 | |||
17.85 | 2500 | 446.25 | 5.60 | 6608 | |||
20.7 | 2750 | 517.5 | 5.31 | 7020 | |||
23.5 | 3000 | 587.5 | 5.11 | 7295 | |||
30 | 3500 | 750 | 4.67 | 7807 | |||
37.2 | 4000 | 930 | 4.30 | 8306 | |||
55 | 5000 | 1375 | 3.64 | 9116 | |||
78.1 | 6180 | 1952.5 | 3.17 | 9938 | 120℃ 2min |
Specifications | 3525 | Max Continuous Current | 90A/30s |
Stator Diameter | 35mm | Max Continuous Power | 2080W |
Stator Thickness | 25mm | Weight | 252g |
No.of Stator Slots | 12 | Rotor Diameter | 42.5mm |
No.of Rotor Poles | 14 | Body Length | 48mm |
MotorKv | 650 | MaxLipo Cell | 4-6S |
NO-Load Current(A/10V) | 1.6A | ESC | 80-100A |
Motor Resistance | 15.2mΩ | Recommend Prop(inch) | 6S（12*8 12*10 12*12 13*7）5S(EOLO14*8 14*7 13*7) 4S(EOLO15*8 15*10) |
Propeller (inch) | Voltage (V) | Current (A) | Input power (W) | Speed (rpm) | Thrust (g) | Force effect | Load temperature in 100% throttle |
EOLO 13*7 | 18.95 | 3.667 | 69.48 | 3736.58 | 527.22 | 7.58 |
|
18.9 | 5.577 | 105.4 | 4606.33 | 762.89 | 7.23 | ||
18.89 | 7.863 | 148.53 | 5249.64 | 1003.04 | 6.75 | ||
18.82 | 10.261 | 193.11 | 5761.11 | 1245.16 | 6.44 | ||
18.76 | 12.897 | 241.94 | 6082.97 | 1481.76 | 6.12 | ||
18.68 | 16.292 | 304.33 | 6643.97 | 1756.54 | 5.77 | ||
18.62 | 19.361 | 360.5 | 7364.98 | 2008.19 | 5.57 | ||
18.54 | 22.691 | 420.69 | 7621.34 | 2235.6 | 5.31 | ||
18.46 | 26.356 | 486.53 | 7962.65 | 2495.24 | 5.12 | ||
18.38 | 30.225 | 555.53 | 8308.77 | 2738.57 | 4.92 | ||
18.26 | 34.894 | 637.16 | 8766.24 | 3022.47 | 4.74 | ||
18.09 | 43.324 | 783.73 | 9376.31 | 3466.77 | 4.42 | ||
17.8 | 55.589 | 989.48 | 10010.05 | 4070.21 | 4.11 | ||
|
|
|
|
|
| ||
21.04 | 3.18 | 66.9 | 3803.05 | 507.47 | 7.58 | ||
20.98 | 4.925 | 103.32 | 4518.28 | 738.15 | 7.14 | ||
20.95 | 7.012 | 146.9 | 4983.38 | 985.9 | 6.71 | ||
20.9 | 9.3 | 194.37 | 5755.36 | 1239.08 | 6.37 | ||
20.84 | 12.143 | 253.06 | 6355.1 | 1516.63 | 5.99 | ||
20.77 | 15.17 | 315.08 | 6783.67 | 1795.91 | 5.69 | ||
20.72 | 17.709 | 366.93 | 7204.31 | 2007.44 | 5.47 | ||
20.63 | 20.826 | 429.64 | 7598.75 | 2247.87 | 5.23 | ||
20.56 | 24.762 | 509.1 | 8105.82 | 2555.46 | 5.01 | ||
20.49 | 27.955 | 572.79 | 8378.11 | 2755.77 | 4.81 | ||
20.4 | 31.379 | 640.13 | 8682.31 | 2979.88 | 4.65 | ||
20.22 | 39.69 | 802.53 | 9353.16 | 3466.93 | 4.32 | ||
20.01 | 49.962 | 999.73 | 9976.02 | 4030.64 | 4.03 | ||
19.6 | 65.487 | 1283.54 | 10452.66 | 4685.72 | 3.65 | ||
|
|
|
|
|
| ||
23 | 3.037 | 69.85 | 3903.93 | 525.26 | 7.51 | ||
22.98 | 4.91 | 112.83 | 4692.6 | 788.92 | 6.99 | ||
22.94 | 6.586 | 151.08 | 5194.29 | 999.51 | 6.61 | ||
22.88 | 8.87 | 202.94 | 5826.83 | 1262.32 | 6.22 | ||
22.82 | 11.487 | 262.13 | 6387.99 | 1540.02 | 5.87 | ||
22.78 | 13.767 | 313.61 | 6831.76 | 1761.49 | 5.61 | ||
22.72 | 16.254 | 369.29 | 7224.38 | 1987.58 | 5.38 | ||
22.66 | 19.032 | 431.26 | 7532.62 | 2238.68 | 5.19 | ||
22.59 | 22.24 | 502.4 | 7898.53 | 2484.11 | 4.94 | ||
22.52 | 25.768 | 580.29 | 8456.44 | 2766.37 | 4.76 | ||
22.42 | 30.256 | 678.33 | 8615.98 | 3090.72 | 4.55 | ||
22.25 | 38.113 | 848.01 | 9468.64 | 3572.21 | 4.21 | ||
22.09 | 44.328 | 979.2 | 9860.03 | 3966.77 | 4.05 | ||
21.86 | 55.436 | 1211.83 | 10452.21 | 4437.91 | 3.66 | ||
21.35 | 78.166 | 1668.84 | 11151.33 | 5454.67 | 3.26 | ||
|
|
|
|
|
| ||
25.14 | 2.696 | 67.77 | 3779.43 | 516.29 | 7.61 | ||
25.12 | 4.39 | 110.27 | 4633.46 | 781.2 | 7.08 | ||
25.06 | 6.173 | 154.69 | 5264.24 | 1021.54 | 6.6 | ||
25.04 | 7.876 | 197.21 | 5740.71 | 1233.07 | 6.25 | ||
24.99 | 10.421 | 260.42 | 6267.04 | 1543.3 | 5.92 | ||
24.95 | 12.364 | 308.48 | 6811.55 | 1746.17 | 5.66 | ||
24.88 | 14.653 | 364.56 | 7162.24 | 1976.03 | 5.42 | ||
24.81 | 18.459 | 457.96 | 7709.42 | 2324.27 | 5.07 | ||
24.75 | 20.924 | 517.86 | 8113.99 | 2533.69 | 4.89 | ||
24.69 | 23.552 | 581.49 | 8331.68 | 2774.53 | 4.77 | ||
24.65 | 25.597 | 630.96 | 8603.02 | 2930.78 | 4.64 | ||
24.47 | 34.415 | 842.13 | 9418.58 | 3548.66 | 4.21 | ||
24.27 | 41.903 | 1016.98 | 9970.53 | 4049.2 | 3.98 | ||
24.11 | 49.343 | 1189.65 | 10434.97 | 4438.23 | 3.73 | ||
23.86 | 61.756 | 1473.49 | 11102.55 | 5007.48 | 3.39 | ||
23.19 | 89.74 | 2081.07 | 11897.25 | 6124.77 | 2.94 | 127℃ 1min20s | |
EOLO 14*7 | 18.94 | 3.042 | 57.61 | 3286.77 | 501.71 | 8.7 |
|
18.87 | 5.142 | 97.02 | 4182.52 | 785.21 | 8.09 | ||
18.84 | 6.838 | 128.82 | 4450.26 | 994.67 | 7.72 | ||
18.81 | 8.983 | 168.97 | 4961.11 | 1235.15 | 7.3 | ||
18.74 | 11.515 | 215.79 | 5463.84 | 1481.47 | 6.86 | ||
18.66 | 15.126 | 282.25 | 5834.86 | 1808.68 | 6.4 | ||
18.6 | 18.109 | 336.82 | 6311.91 | 2047.5 | 6.07 | ||
18.51 | 21.146 | 391.41 | 6642.61 | 2298.94 | 5.87 | ||
18.47 | 23.719 | 438.08 | 6909.15 | 2499.06 | 5.7 | ||
18.39 | 27.445 | 504.71 | 7349.79 | 2742.53 | 5.43 | ||
18.3 | 31.272 | 572.27 | 7575.02 | 3012.67 | 5.26 | ||
18.11 | 40.219 | 728.36 | 8238.73 | 3580.47 | 4.91 | ||
17.91 | 48.25 | 864.15 | 8655.11 | 4036.49 | 4.67 | ||
17.51 | 66.444 | 1163.43 | 9470.69 | 4855.25 | 4.17 | ||
|
|
|
|
|
| ||
20.89 | 2.914 | 60.87 | 3166.28 | 516.58 | 8.48 | ||
20.84 | 4.639 | 96.67 | 4027.85 | 774.71 | 8.01 | ||
20.82 | 6.27 | 130.54 | 4479.08 | 981.72 | 7.52 | ||
20.77 | 8.244 | 171.22 | 4989.48 | 1216.48 | 7.1 | ||
20.7 | 11.085 | 229.45 | 5581.63 | 1530.87 | 6.67 | ||
20.65 | 13.42 | 277.12 | 6037.46 | 1758.1 | 6.34 | ||
20.58 | 16.194 | 333.27 | 6264.14 | 2021.45 | 6.06 | ||
20.54 | 19.107 | 392.45 | 6799.71 | 2266.94 | 5.77 | ||
20.46 | 22.419 | 458.69 | 7047.59 | 2539.51 | 5.53 | ||
20.4 | 25.211 | 514.3 | 7415.45 | 2769.66 | 5.38 | ||
20.34 | 27.471 | 558.76 | 7564.73 | 2918.32 | 5.22 | ||
20.16 | 36.106 | 727.89 | 8239.11 | 3471.75 | 4.76 | ||
19.98 | 44.365 | 886.41 | 8762.62 | 3978.43 | 4.48 | ||
19.74 | 54.7 | 1079.77 | 9296.31 | 4570.51 | 4.23 | ||
19.21 | 78.522 | 1508.4 | 10173.23 | 5683.24 | 3.76 | 120℃ 2min50s | |
EOLO 14*8 | 18.9 | 3.314 | 62.63 | 3296.03 | 521.72 | 8.33 |
|
18.85 | 5.13 | 96.7 | 3867.07 | 764.24 | 7.9 | ||
18.81 | 7.268 | 136.71 | 4344.25 | 1015.92 | 7.43 | ||
18.75 | 9.903 | 185.68 | 4999.98 | 1286.95 | 6.93 | ||
18.7 | 12.047 | 225.27 | 5291.24 | 1483.62 | 6.58 | ||
18.63 | 15.289 | 284.83 | 5661.43 | 1752.31 | 6.15 | ||
18.57 | 18.277 | 339.4 | 6163.9 | 2008.52 | 5.91 | ||
18.49 | 22.271 | 411.79 | 6527.28 | 2314.08 | 5.61 | ||
18.41 | 25.344 | 466.58 | 6895.37 | 2514.84 | 5.38 | ||
18.31 | 29.946 | 548.31 | 7190.12 | 2821.99 | 5.14 | ||
18.22 | 33.833 | 616.43 | 7529.46 | 3079.13 | 4.99 | ||
18.07 | 40.541 | 732.57 | 7945.91 | 3449.85 | 4.7 | ||
17.83 | 50.776 | 905.33 | 8478.06 | 3974.89 | 4.39 | ||
17.39 | 70.985 | 1234.42 | 9314.59 | 4841.93 | 3.92 | ||
|
|
|
|
|
| ||
20.89 | 2.889 | 60.35 | 3138.37 | 490.51 | 8.12 | ||
20.82 | 4.905 | 102.12 | 3990.02 | 786.72 | 7.7 | ||
20.78 | 6.768 | 140.63 | 4445.04 | 1013.53 | 7.2 | ||
20.73 | 8.988 | 186.32 | 4951.81 | 1263.68 | 6.78 | ||
20.67 | 11.536 | 238.44 | 5401.2 | 1534.62 | 6.43 | ||
20.61 | 14.372 | 296.2 | 5849.21 | 1801.02 | 6.08 | ||
20.55 | 17.664 | 362.99 | 6230.46 | 2088.53 | 5.75 | ||
20.49 | 20.297 | 415.88 | 6452.09 | 2294.48 | 5.51 | ||
20.41 | 23.556 | 480.77 | 6919.91 | 2557.19 | 5.31 | ||
20.36 | 26.244 | 534.32 | 7173.41 | 2739.23 | 5.12 | ||
20.26 | 30.162 | 611.08 | 7433.63 | 3032.97 | 4.96 | ||
20.08 | 38.514 | 773.36 | 8027.28 | 3559.5 | 4.6 | ||
19.89 | 47.083 | 936.48 | 8469.53 | 4037.27 | 4.31 | ||
19.69 | 56.377 | 1110.06 | 8918.25 | 4531.55 | 4.08 | ||
19.08 | 83.369 | 1590.68 | 9920.86 | 5617.33 | 3.53 | 125℃ 1min45s | |
EOLO 15*8 | 15.02 | 3.666 | 55.06 | 2853.56 | 487.83 | 8.85 |
|
14.97 | 5.829 | 87.26 | 3418.94 | 750.83 | 8.6 | ||
14.92 | 8.537 | 127.37 | 3993.49 | 1036.7 | 8.13 | ||
14.85 | 11.276 | 167.44 | 4483.46 | 1288.87 | 7.69 | ||
14.81 | 13.638 | 201.97 | 4650.91 | 1479.75 | 7.32 | ||
14.72 | 17.195 | 253.11 | 5106.53 | 1760.48 | 6.95 | ||
14.65 | 20.894 | 306.09 | 5447.36 | 2008.28 | 6.56 | ||
14.55 | 25.192 | 366.54 | 5752.06 | 2285.49 | 6.23 | ||
14.48 | 28.776 | 416.67 | 6035.42 | 2509.84 | 6.02 | ||
14.39 | 32.671 | 470.13 | 6286.27 | 2729.14 | 5.8 | ||
14.27 | 37.759 | 538.82 | 6594.36 | 2998.74 | 5.56 | ||
14.01 | 48.898 | 685.06 | 7032.08 | 3575.27 | 5.21 | ||
13.8 | 58.929 | 813.22 | 7509.55 | 3978.48 | 4.89 | ||
|
|
|
|
|
| ||
16.64 | 3.433 | 57.12 | 2988.65 | 501.55 | 8.78 | ||
16.62 | 5.418 | 90.04 | 3481.92 | 774.68 | 8.6 | ||
16.56 | 7.549 | 125.01 | 3956.5 | 1010.73 | 8.08 | ||
16.5 | 10.065 | 166.07 | 4389.39 | 1265.83 | 7.62 | ||
16.43 | 13.321 | 218.86 | 4777.19 | 1564.81 | 7.14 | ||
16.37 | 16.593 | 271.62 | 5065.76 | 1833.54 | 6.75 | ||
16.31 | 18.858 | 307.57 | 5483.83 | 1998.33 | 6.49 | ||
16.23 | 22.333 | 362.46 | 5807.26 | 2262.47 | 6.24 | ||
16.13 | 27.17 | 438.25 | 6109.17 | 2587.82 | 5.9 | ||
16.04 | 30.032 | 481.71 | 6230.99 | 2764.2 | 5.73 | ||
15.98 | 33.901 | 541.73 | 6505.62 | 2987.6 | 5.51 | ||
15.79 | 42.425 | 669.89 | 7004.73 | 3441.36 | 5.13 | ||
15.51 | 54.361 | 843.13 | 7571.89 | 4037.71 | 4.78 | ||
15.19 | 68.673 | 1043.14 | 8039.72 | 4641.88 | 4.44 | 125℃ 3min | |
EOLO 15*10 | 14.65 | 4.116 | 60.29 | 2706.1 | 513.98 | 8.52 |
|
14.61 | 6.316 | 92.27 | 3320.07 | 767.98 | 8.32 | ||
14.53 | 9.659 | 140.34 | 3722.65 | 1068.32 | 7.61 | ||
14.47 | 11.79 | 170.6 | 4083.15 | 1240.2 | 7.26 | ||
14.38 | 16.455 | 236.62 | 4583.95 | 1582.46 | 6.68 | ||
14.31 | 19.328 | 276.58 | 4927.16 | 1772.64 | 6.4 | ||
14.2 | 23.809 | 338.08 | 5042.4 | 2049.69 | 6.06 | ||
14.14 | 27.802 | 393.12 | 5468.33 | 2258.45 | 5.74 | ||
14.04 | 31.492 | 442.14 | 5607.37 | 2449.29 | 5.53 | ||
13.91 | 37.868 | 526.74 | 5897.7 | 2753.38 | 5.22 | ||
13.75 | 44.529 | 612.27 | 6276.83 | 3064.93 | 5 | ||
13.25 | 65.745 | 871.12 | 6999.92 | 3867.2 | 4.43 | ||
|
|
|
|
|
| ||
16.66 | 3.388 | 56.44 | 2492.9 | 482.62 | 8.55 | ||
16.62 | 5.38 | 89.41 | 3193.27 | 743.27 | 8.31 | ||
16.54 | 8.593 | 142.12 | 3944.42 | 1064.37 | 7.48 | ||
16.47 | 11.024 | 181.56 | 4054.59 | 1287.57 | 7.09 | ||
16.43 | 13.815 | 226.98 | 4538.61 | 1514.45 | 6.67 | ||
16.35 | 16.872 | 275.85 | 4868.2 | 1750.57 | 6.34 | ||
16.26 | 21.05 | 342.27 | 5226.83 | 2028.42 | 5.92 | ||
16.18 | 24.736 | 400.22 | 5461.48 | 2276.01 | 5.68 | ||
16.11 | 28.121 | 453.02 | 5649.75 | 2463.26 | 5.43 | ||
15.99 | 33.258 | 531.79 | 5981.93 | 2759.88 | 5.18 | ||
15.85 | 36.72 | 582.01 | 6135 | 2926.21 | 5.02 | ||
15.62 | 49.659 | 775.67 | 6728.12 | 3539.69 | 4.56 | ||
15.36 | 60.277 | 925.85 | 7060.78 | 3959.33 | 4.27 | ||
14.94 | 79.291 | 1184.6 | 7591.61 | 4585.85 | 3.87 | 120℃ 3min |
Specifications | 3525 | Max Continuous Current | 110A/30s |
Stator Diameter | 35mm | Max Continuous Power | 1850W |
Stator Thickness | 25mm | Weight | 258g |
No.of Stator Slots | 12 | Rotor Diameter | 42.5mm |
No.of Rotor Poles | 14 | Body Length | 48mm |
Motor Kv | 810 | Max Lipo Cell | 4S |
NO-Load Current(A/10V) | 2.35A | ESC | 100-120A |
Motor Resistance | 10.1mΩ | Recommend Prop(inch) | 4S(EOLO15*8 14*8 14*7 13*7) |
Propeller (inch) | Voltage (V) | Current (A) | Input power (W) | Speed (rpm) | Thrust (g) | Force effect | Load temperature in 100% throttle |
EOLO 13*7 | 14.93 | 4.312 | 64.37 | 3685.57 | 512.19 | 7.95 |
|
14.91 | 7.006 | 104.45 | 4533.45 | 779.48 | 7.46 | ||
14.81 | 10.462 | 154.94 | 5305.18 | 1064.91 | 6.87 | ||
14.76 | 12.867 | 189.91 | 5719.77 | 1262.96 | 6.65 | ||
14.67 | 16.83 | 246.89 | 6308.05 | 1521.84 | 6.16 | ||
14.58 | 20.209 | 294.64 | 6542.41 | 1765.47 | 5.99 | ||
14.52 | 23.83 | 346.01 | 7023.03 | 1973.55 | 5.7 | ||
14.4 | 28.248 | 406.77 | 7486.4 | 2215.32 | 5.44 | ||
14.26 | 34.543 | 492.58 | 7959.92 | 2539.57 | 5.15 | ||
14.13 | 39.436 | 557.23 | 8350.33 | 2778.81 | 4.98 | ||
14 | 45.724 | 640.13 | 8772.77 | 3036.99 | 4.74 | ||
13.59 | 63.78 | 866.77 | 9481.62 | 3731.38 | 4.3 | ||
|
|
|
|
|
| ||
16.74 | 4.218 | 70.6 | 3751.03 | 528.76 | 7.48 | ||
16.69 | 6.445 | 107.56 | 4530.19 | 762.31 | 7.08 | ||
16.61 | 9.664 | 160.51 | 5317.45 | 1070.07 | 6.66 | ||
16.57 | 11.489 | 190.37 | 5665.3 | 1223.21 | 6.42 | ||
16.48 | 14.848 | 244.69 | 6261 | 1487.19 | 6.07 | ||
16.4 | 18.971 | 311.12 | 6644 | 1789.23 | 5.75 | ||
16.32 | 22.306 | 364.03 | 7171.05 | 2009.08 | 5.51 | ||
16.22 | 26.561 | 430.81 | 7611.58 | 2275.01 | 5.28 | ||
16.12 | 30.434 | 490.59 | 7922.93 | 2513.04 | 5.12 | ||
16 | 35.183 | 562.92 | 8277.58 | 2745.97 | 4.87 | ||
15.89 | 39.53 | 628.13 | 8584.23 | 2977.09 | 4.73 | ||
15.63 | 51.098 | 798.66 | 9272.46 | 3501.63 | 4.38 | ||
15.06 | 75.312 | 1134.19 | 10176.37 | 4380.52 | 3.86 | 115℃ 2min | |
EOLO 14*7 | 14.96 | 4.116 | 61.57 | 3274.94 | 523.07 | 8.49 |
|
14.9 | 6.225 | 92.75 | 3953.4 | 744.5 | 8.02 | ||
14.82 | 9.73 | 144.19 | 4679.5 | 1085.1 | 7.52 | ||
14.76 | 12.201 | 180.08 | 5113.62 | 1293.49 | 7.18 | ||
14.71 | 15.572 | 229.06 | 5615.49 | 1544.61 | 6.74 | ||
14.62 | 18.571 | 271.5 | 5861.37 | 1752.11 | 6.45 | ||
14.53 | 23.039 | 334.75 | 6369.02 | 2051.34 | 6.12 | ||
14.44 | 26.88 | 388.14 | 6833.81 | 2267.02 | 5.84 | ||
14.37 | 30.49 | 438.14 | 6953.03 | 2481.73 | 5.66 | ||
14.23 | 36.122 | 514.01 | 7354.61 | 2795.45 | 5.43 | ||
14.12 | 40.115 | 566.42 | 7529.83 | 2980.32 | 5.26 | ||
13.87 | 50.884 | 705.76 | 8111.24 | 3458.41 | 4.9 | ||
13.31 | 74.952 | 997.61 | 9059.05 | 4372.52 | 4.38 | ||
|
|
|
|
|
| ||
16.69 | 3.608 | 60.21 | 3289.85 | 499.93 | 8.3 | ||
16.62 | 6.104 | 101.44 | 4266.32 | 802.62 | 7.91 | ||
16.59 | 8.38 | 139.02 | 4583.74 | 1031.16 | 7.41 | ||
16.51 | 11.243 | 185.62 | 5173.51 | 1301.98 | 7.01 | ||
16.44 | 14.402 | 236.76 | 5575.26 | 1557.94 | 6.58 | ||
16.38 | 17.096 | 280.03 | 6014.88 | 1773.18 | 6.33 | ||
16.3 | 20.835 | 339.61 | 6324.81 | 2052.35 | 6.04 | ||
16.22 | 24.095 | 390.82 | 6661.75 | 2247.92 | 5.75 | ||
16.15 | 27.244 | 439.99 | 6989.78 | 2483 | 5.64 | ||
16.07 | 31.38 | 504.27 | 7220.55 | 2727.54 | 5.4 | ||
15.95 | 36.184 | 577.13 | 7614.89 | 2970.95 | 5.14 | ||
15.69 | 47.279 | 741.8 | 8220.96 | 3546.46 | 4.78 | ||
15.44 | 56.767 | 876.48 | 8703.88 | 3963.11 | 4.52 | ||
14.75 | 87.882 | 1296.25 | 9690.76 | 5098.02 | 3.93 | 110℃ 1min | |
EOLO 14*8 | 14.96 | 4.119 | 61.62 | 3163.16 | 491.91 | 7.98 |
|
14.9 | 6.436 | 95.89 | 3914.02 | 741.52 | 7.73 | ||
14.85 | 9.043 | 134.28 | 4355.72 | 980.46 | 7.3 | ||
14.77 | 12.078 | 178.39 | 4792.42 | 1225.91 | 6.87 | ||
14.7 | 16.039 | 235.77 | 5342.07 | 1521.65 | 6.45 | ||
14.61 | 19.506 | 284.98 | 5719.8 | 1752.55 | 6.14 | ||
14.51 | 23.97 | 347.8 | 6245.81 | 2032.78 | 5.84 | ||
14.41 | 28.397 | 409.2 | 6512.22 | 2279.43 | 5.57 | ||
14.31 | 32.742 | 468.53 | 6969.53 | 2507.19 | 5.35 | ||
14.23 | 37.326 | 531.14 | 7103.66 | 2724.07 | 5.12 | ||
14.09 | 42.885 | 604.24 | 7399.82 | 2992.4 | 4.95 | ||
13.8 | 54.514 | 752.29 | 7785.1 | 3499.34 | 4.65 | ||
13.21 | 79.854 | 1054.87 | 8817.54 | 4399.16 | 4.17 | ||
|
|
|
|
|
| ||
16.65 | 3.69 | 61.43 | 2969.34 | 496.61 | 8.08 | ||
16.61 | 6.047 | 100.44 | 3884.3 | 761.81 | 7.58 | ||
16.55 | 8.646 | 143.09 | 4482.99 | 1022.6 | 7.14 | ||
16.51 | 11.063 | 182.65 | 4888.38 | 1244.75 | 6.81 | ||
16.44 | 14.016 | 230.42 | 5287.28 | 1489.18 | 6.46 | ||
16.34 | 18.029 | 294.59 | 5937.87 | 1794.34 | 6.09 | ||
16.29 | 20.994 | 341.99 | 6088.2 | 1989.61 | 5.81 | ||
16.19 | 24.984 | 404.49 | 6436.97 | 2254.76 | 5.57 | ||
16.06 | 30.152 | 484.24 | 6904.92 | 2551.68 | 5.26 | ||
15.99 | 34.187 | 546.65 | 7162.55 | 2781.39 | 5.08 | ||
15.91 | 37.582 | 597.92 | 7324.22 | 2940.51 | 4.91 | ||
15.58 | 49.853 | 776.7 | 8005.65 | 3554.04 | 4.57 | ||
15.32 | 61.537 | 942.74 | 8518.28 | 4012.02 | 4.25 | ||
14.58 | 94.291 | 1374.76 | 9308.25 | 5132.02 | 3.73 | 105℃ | |
EOLO15*8 | 14.99 | 3.839 | 57.54 | 2807.69 | 479.8 | 8.33 |
|
14.95 | 6.462 | 96.6 | 3528.71 | 785.22 | 8.12 | ||
14.87 | 9.19 | 136.65 | 4068.34 | 1065.69 | 7.79 | ||
14.83 | 11.167 | 165.6 | 4322.35 | 1232.68 | 7.44 | ||
14.75 | 15.38 | 226.85 | 4756.82 | 1549.19 | 6.82 | ||
14.67 | 18.197 | 266.94 | 5160.39 | 1761.46 | 6.59 | ||
14.56 | 22.646 | 329.72 | 5571.5 | 2056.23 | 6.23 | ||
14.49 | 26.283 | 380.84 | 5853.12 | 2297.37 | 6.03 | ||
14.4 | 29.711 | 427.83 | 6052.92 | 2491.6 | 5.82 | ||
14.27 | 35.109 | 501 | 6367.77 | 2785.42 | 5.55 | ||
14.13 | 40.638 | 574.21 | 6694.36 | 3070.93 | 5.34 | ||
13.9 | 49.757 | 691.62 | 7069.04 | 3519.07 | 5.08 | ||
13.62 | 62.369 | 849.46 | 7520.94 | 3985.72 | 4.69 | ||
12.9 | 91.436 | 1179.52 | 8167.66 | 4982.47 | 4.22 | ||
|
|
|
|
|
| ||
16.65 | 3.766 | 62.7 | 2897.96 | 511.66 | 8.16 | ||
16.61 | 5.871 | 97.51 | 3493.79 | 775.29 | 7.95 | ||
16.55 | 7.992 | 132.26 | 3921.06 | 1011.33 | 7.64 | ||
16.49 | 10.373 | 171.05 | 4327.77 | 1255.35 | 7.33 | ||
16.42 | 13.374 | 219.6 | 4756.23 | 1521.07 | 6.92 | ||
16.36 | 16.893 | 276.36 | 5176.35 | 1794.95 | 6.49 | ||
16.27 | 20.383 | 331.63 | 5510.97 | 2049.19 | 6.17 | ||
16.19 | 23.68 | 383.37 | 5812.41 | 2270.95 | 5.92 | ||
16.09 | 27.723 | 446.06 | 6050.12 | 2546.07 | 5.7 | ||
16.03 | 31.726 | 508.56 | 6339.88 | 2768.58 | 5.44 | ||
15.88 | 36.502 | 579.65 | 6676.43 | 3052.88 | 5.26 | ||
15.68 | 46.311 | 726.15 | 7099.41 | 3554.32 | 4.89 | ||
15.4 | 58.314 | 898.03 | 7597.94 | 4113.98 | 4.58 | ||
14.75 | 83.294 | 1228.58 | 8388.66 | 4977.12 | 4.05 | ||
14.34 | 104.129 | 1493.2 | 8727.73 | 5657.59 | 3.78 | 95℃ |
Specifications | 3525 | Max Continuous Current | 110A/30s |
Stator Diameter | 35mm | Max Continuous Power | 1100W |
Stator Thickness | 25mm | Weight | 260g |
No.of Stator Slots | 12 | Rotor Diameter | 42.5mm |
No.of Rotor Poles | 14 | Body Length | 48mm |
Motor Kv | 1080 | Max Lipo Cell | 3S |
NO-Load Current(A/10V) | 3.3A | ESC | 100A |
Motor Resistance | 6mΩ | Recommend Prop(inch) | 3S (EOLO 14*8 14*7 13*7) |
Propeller (inch) | Voltage (V) | Current (A) | Input power (W) | Speed (rpm) | Thrust (g) | Force effect | Load temperature in 100% throttle |
EOLO 13*7 | 11.13 | 5.63 | 62.66 | 3624.59 | 484.7 | 7.73 |
|
11.07 | 9.465 | 104.77 | 4336.13 | 743.3 | 7.09 | ||
10.96 | 14.167 | 155.27 | 5292.02 | 1040.36 | 6.7 | ||
10.84 | 19.042 | 206.41 | 5910.23 | 1305.16 | 6.32 | ||
10.78 | 21.842 | 235.45 | 6185.12 | 1444.05 | 6.13 | ||
10.64 | 27.785 | 295.63 | 6692.92 | 1721.63 | 5.82 | ||
10.48 | 35.337 | 370.33 | 7210.05 | 2030.38 | 5.48 | ||
10.38 | 39.862 | 413.76 | 7481.92 | 2204.27 | 5.32 | ||
10.2 | 47.679 | 486.32 | 7839.97 | 2489.88 | 5.11 | ||
10 | 56.832 | 568.32 | 8294.53 | 2754.06 | 4.84 | ||
9.64 | 72.56 | 699.47 | 8789.83 | 3180.43 | 4.54 | ||
|
|
|
|
|
| ||
12.16 | 5.578 | 67.82 | 3780.13 | 522.93 | 7.71 | ||
12.11 | 9.098 | 110.17 | 4585.83 | 775.28 | 7.03 | ||
12.04 | 12.165 | 146.46 | 5128.4 | 982.61 | 6.7 | ||
11.93 | 16.276 | 194.17 | 5669.23 | 1239.46 | 6.38 | ||
11.86 | 20.579 | 244.06 | 6033.38 | 1457.7 | 5.97 | ||
11.71 | 26.53 | 310.66 | 6759 | 1756.72 | 5.65 | ||
11.6 | 31.551 | 365.99 | 7114.28 | 1990.65 | 5.43 | ||
11.45 | 37.367 | 427.85 | 7540.24 | 2225.48 | 5.2 | ||
11.3 | 44.055 | 497.82 | 7943.92 | 2472.33 | 4.96 | ||
11.13 | 52.037 | 579.17 | 8308.68 | 2739.33 | 4.72 | ||
10.91 | 61.024 | 665.77 | 8668.55 | 3043.62 | 4.57 | ||
10.42 | 81.388 | 848.06 | 9141.24 | 3607.59 | 4.25 | 125℃3min | |
EOLO 14*7 | 11.25 | 5.287 | 59.47 | 3213.56 | 502.83 | 8.45 |
|
11.22 | 8.617 | 96.68 | 4049.56 | 760.81 | 7.86 | ||
11.13 | 11.832 | 131.69 | 4480.77 | 979.87 | 7.44 | ||
11.03 | 15.844 | 174.75 | 4946.01 | 1215.63 | 6.95 | ||
10.91 | 21.327 | 232.67 | 5523.94 | 1515.02 | 6.51 | ||
10.8 | 26.789 | 289.32 | 5981.85 | 1776.47 | 6.14 | ||
10.7 | 31.229 | 334.15 | 6297.15 | 1986.47 | 5.94 | ||
10.55 | 38.032 | 401.23 | 6704.28 | 2258.31 | 5.62 | ||
10.41 | 44.177 | 459.88 | 6988.27 | 2516.61 | 5.47 | ||
10.18 | 52.774 | 537.23 | 7393.67 | 2800.89 | 5.21 | ||
10.03 | 59.709 | 598.88 | 7643.68 | 3013.23 | 5.03 | ||
9.47 | 82.918 | 785.23 | 8220.88 | 3655.62 | 4.65 | ||
|
|
|
|
|
| ||
12.41 | 4.711 | 58.46 | 3154.32 | 509.9 | 8.72 | ||
12.32 | 7.614 | 93.8 | 3849.03 | 748.57 | 7.98 | ||
12.23 | 11.43 | 139.78 | 4465.41 | 1019.33 | 7.29 | ||
12.15 | 15.618 | 189.75 | 5070.21 | 1288.81 | 6.79 | ||
12.04 | 20.307 | 244.49 | 5531.1 | 1562.69 | 6.39 | ||
11.94 | 24.399 | 291.32 | 5971.39 | 1791.66 | 6.15 | ||
11.85 | 28.988 | 343.5 | 6281.52 | 2015 | 5.86 | ||
11.73 | 34.627 | 406.17 | 6691.97 | 2280.05 | 5.61 | ||
11.59 | 39.457 | 457.3 | 6969.71 | 2463.01 | 5.38 | ||
11.42 | 46.989 | 536.61 | 7298.16 | 2776.51 | 5.17 | ||
11.26 | 54.707 | 616 | 7516.01 | 3048.28 | 4.94 | ||
10.91 | 69.07 | 753.55 | 8165.32 | 3481.34 | 4.61 | ||
10.26 | 94.064 | 965.09 | 8826.72 | 4166.58 | 4.31 | 117℃ 1min27s | |
EOLO 14*8 | 11.3 | 5.77 | 65.2 | 3299.58 | 539.85 | 8.27 |
|
11.25 | 8.496 | 95.57 | 3795.13 | 745.32 | 7.79 | ||
11.14 | 12.829 | 142.91 | 4370.01 | 1027.71 | 7.19 | ||
11.05 | 17.273 | 190.86 | 4924.22 | 1281.23 | 6.71 | ||
10.95 | 21.543 | 235.89 | 5337.69 | 1504.56 | 6.37 | ||
10.83 | 26.545 | 287.48 | 5713.83 | 1738.37 | 6.04 | ||
10.7 | 32.393 | 346.6 | 6088.23 | 2000.76 | 5.77 | ||
10.53 | 39.013 | 410.8 | 6461.04 | 2257.24 | 5.49 | ||
10.36 | 46.797 | 484.81 | 6837.56 | 2527.97 | 5.21 | ||
10.21 | 53.081 | 541.95 | 7070.91 | 2728.17 | 5.03 | ||
9.99 | 63.175 | 631.11 | 7406.42 | 3031.47 | 4.8 | ||
9.38 | 87.746 | 823.05 | 8015.08 | 3625.98 | 4.4 | ||
|
|
|
|
|
| ||
12.37 | 5.13 | 63.45 | 3187 | 528.99 | 8.33 | ||
12.31 | 7.685 | 94.6 | 3690.66 | 739.98 | 7.82 | ||
12.22 | 11.706 | 143.04 | 4499.01 | 1021.17 | 7.13 | ||
12.14 | 16.016 | 194.43 | 4915.47 | 1290.62 | 6.63 | ||
12.03 | 20.033 | 240.99 | 5140.89 | 1508.82 | 6.26 | ||
11.94 | 24.538 | 292.98 | 5665.99 | 1734.59 | 5.92 | ||
11.79 | 30.283 | 357.03 | 6080.79 | 2016.41 | 5.64 | ||
11.64 | 37.079 | 431.59 | 6506.15 | 2314.41 | 5.36 | ||
11.5 | 43.534 | 500.64 | 6732.4 | 2561.53 | 5.11 | ||
11.38 | 48.535 | 552.32 | 7065.59 | 2742.04 | 4.96 | ||
11.14 | 58.211 | 648.47 | 7438.79 | 3074.52 | 4.74 | ||
10.81 | 73.038 | 789.54 | 7905 | 3457.27 | 4.37 | ||
10.13 | 99.052 | 1003.39 | 8537.16 | 4102.64 | 4.08 | 110℃ 45s |
Specifications | 3520-III | Max Continuous Current | 36A/30s |
Stator Diameter | 35mm | Max Continuous Power | 900W |
Stator Thickness | 20mm | Weight | 219g |
No.of Stator Slots | 12 | Rotor Diameter | 42.5mm |
No.of Rotor Poles | 14 | Body Length | 45mm |
Motor Kv | 400 | Max Lipo Cell | 6S |
NO-Load Current(A/10V) | 0.7A | ESC | SUNNYSKY 80A |
Motor Resistance | 42mΩ | Recommend Prop(inch) | EOLO13*7 13*8 14*7 14*8 |
Propeller (inch) | Voltage (V) | Current (A) | Thrust (g) | Watts (W) | Efficiency (g/W) | RPM | Load temperature in 100%6 throttle |
EOLO 13*7 | 22.2 | 2.6 | 500 | 57.72 | 8.66 | 3670 |
|
4.2 | 750 | 93.24 | 8.04 | 4490 | |||
6.2 | 1000 | 137.64 | 7.27 | 5111 | |||
8.3 | 1250 | 184.26 | 6.78 | 5665 | |||
10.7 | 1500 | 237.54 | 6.31 | 6211 | |||
13.1 | 1750 | 290.82 | 6.02 | 6625 | |||
16.5 | 2000 | 366.3 | 5.46 | 7051 | |||
21.6 | 2480 | 479.52 | 5.17 | 7870 | |||
25 | 2.3 | 500 | 57.5 | 8.70 | 3667 | ||
3.9 | 750 | 97.5 | 7.69 | 4485 | |||
5.6 | 1000 | 140 | 7.14 | 5108 | |||
7.6 | 1250 | 190 | 6.58 | 5659 | |||
9.6 | 1500 | 240 | 6.25 | 6207 | |||
12 | 1750 | 300 | 5.83 | 6629 | |||
14.5 | 2000 | 362.5 | 5.52 | 7055 | |||
20.5 | 2500 | 512.5 | 4.88 | 7958 | |||
27 | 3100 | 675 | 4.59 | 8684 | 80℃ | ||
EOLO 13*8 Folding Paddle | 22.2 | 2.7 | 500 | 59.94 | 8.34 | 3810 |
|
4.7 | 750 | 104.34 | 7.19 | 4689 | |||
6.8 | 1000 | 150.96 | 6.62 | 5365 | |||
9.4 | 1250 | 208.68 | 5.99 | 5955 | |||
12.1 | 1500 | 268.62 | 5.58 | 6485 | |||
15.3 | 1750 | 339.66 | 5.15 | 7047 | |||
19.2 | 2000 | 426.24 | 4.69 | 7479 | |||
23.8 | 2350 | 528.36 | 4.45 | 7760 | |||
25 | 2.5 | 500 | 62.5 | 8.00 | 3814 | ||
4.2 | 750 | 105 | 7.14 | 4685 | |||
6.2 | 1000 | 155 | 6.45 | 5360 | |||
8.5 | 1250 | 212.5 | 5.88 | 5951 | |||
11.1 | 1500 | 277.5 | 5.41 | 6482 | |||
13.9 | 1750 | 347.5 | 5.04 | 7043 | |||
17.2 | 2000 | 430 | 4.65 | 7482 | |||
24.6 | 2500 | 615 | 4.07 | 8379 | |||
29.8 | 2950 | 745 | 3.96 | 8560 | 75℃ | ||
EOLO 14*7 | 22.2 | 2.3 | 500 | 51.06 | 9.79 | 3221 |
|
3.8 | 750 | 84.36 | 8.89 | 3930 | |||
5.6 | 1000 | 124.32 | 8.04 | 4531 | |||
7.5 | 1250 | 166.5 | 7.51 | 5070 | |||
9.7 | 1500 | 215.34 | 6.97 | 5562 | |||
12 | 1750 | 266.4 | 6.57 | 5951 | |||
14.7 | 2000 | 326.34 | 6.13 | 6345 | |||
20.8 | 2500 | 461.76 | 5.41 | 7084 | |||
25.8 | 2900 | 572.76 | 5.06 | 7670 | |||
25 | 2.1 | 500 | 52.5 | 9.52 | 3225 | ||
3.5 | 750 | 87.5 | 8.57 | 3934 | |||
5.1 | 1000 | 127.5 | 7.84 | 4535 | |||
6.8 | 1250 | 170 | 7.35 | 5075 | |||
8.7 | 1500 | 217.5 | 6.90 | 5560 | |||
10.8 | 1750 | 270 | 6.48 | 5949 | |||
13.2 | 2000 | 330 | 6.06 | 6348 | |||
18.5 | 2500 | 462.5 | 5.41 | 7088 | |||
24.7 | 3000 | 617.5 | 4.86 | 7750 | |||
32.4 | 3700 | 810 | 4.57 | 8470 | 115℃ | ||
EOLO 14*8 | 22.2 | 2.4 | 500 | 53.28 | 9.38 | 3180 |
|
4 | 750 | 88.8 | 8.45 | 3885 | |||
5.8 | 1000 | 128.76 | 7.77 | 4435 | |||
7.8 | 1250 | 173.16 | 7.22 | 5032 | |||
10 | 1500 | 222 | 6.76 | 5374 | |||
12.5 | 1750 | 277.5 | 6.31 | 5818 | |||
15.4 | 2000 | 341.88 | 5.85 | 6149 | |||
21.8 | 2500 | 483.96 | 5.17 | 6857 | |||
28.3 | 3050 | 628.26 | 4.85 | 7555 | |||
25 | 2.2 | 500 | 55 | 9.09 | 3185 | ||
3.7 | 750 | 92.5 | 8.11 | 3892 | |||
5.2 | 1000 | 130 | 7.69 | 4440 | |||
7.1 | 1250 | 177.5 | 7.04 | 5035 | |||
9.1 | 1500 | 227.5 | 6.59 | 5376 | |||
11.3 | 1750 | 282.5 | 6.19 | 5820 | |||
13.9 | 2000 | 347.5 | 5.76 | 6150 | |||
18.6 | 2500 | 465 | 5.38 | 6860 | |||
26.1 | 3000 | 652.5 | 4.60 | 7525 | |||
35.1 | 3750 | 877.5 | 4.27 | 8350 | 5min 110℃ |
|
Specifications |
3525-III |
Max Continuous Current |
40A/30s |
|
Stator Diameter |
35mm |
Max Continuous Power |
2000W |
|
Stator Thickness |
25mm |
Weight |
252g |
|
No.of Stator Slots |
12 |
Rotor Diameter |
42.5mm |
|
No.of Rotor Poles |
14 |
Body Length |
48mm |
|
Motor Kv |
250 |
Max Lipo Cell |
8-12S |
|
NO-Load Current(A/10V) |
0.5A |
ESC |
SUNNYSKY 130A |
|
Motor Resistance |
65mΩ |
Recommend Prop(inch) |
EOLO13*8 14*8 |
Propeller (inch) | Voltage (V) | Current (A) | Thrust (g) | Watts (W) | Efficiency (g/W) | RPM | Load temperature in 100%6 throttle |
EOLO 13*8folding paddle | 30.6 | 2 | 500 | 61.2 | 8.17 | 3720 |
|
3.3 | 750 | 100.98 | 7.43 | 4640 | |||
4.9 | 1000 | 149.94 | 6.67 | 5195 | |||
6.8 | 1250 | 208.08 | 6.01 | 5740 | |||
8.9 | 1500 | 272.34 | 5.51 | 6260 | |||
11.3 | 1750 | 345.78 | 5.06 | 6725 | |||
12.9 | 1960 | 394.74 | 4.97 | 7180 | |||
33.6 | 1.8 | 500 | 60.48 | 8.27 | 3715 | ||
3 | 750 | 100.8 | 7.44 | 4638 | |||
4.5 | 1000 | 151.2 | 6.61 | 5190 | |||
6.2 | 1250 | 208.32 | 6.00 | 5741 | |||
8.1 | 1500 | 272.16 | 5.51 | 6258 | |||
10.2 | 1750 | 342.72 | 5.11 | 6721 | |||
12.5 | 2000 | 420 | 4.76 | 7160 | |||
15.1 | 2320 | 507.36 | 4.57 | 7750 | |||
44.4 | 1.4 | 500 | 62.16 | 8.04 | 3720 | ||
2.4 | 750 | 106.56 | 7.04 | 4635 | |||
3.5 | 1000 | 155.4 | 6.44 | 5192 | |||
4.8 | 1250 | 213.12 | 5.87 | 5742 | |||
6.2 | 1500 | 275.28 | 5.45 | 6255 | |||
7.8 | 1750 | 346.32 | 5.05 | 6720 | |||
9.4 | 2000 | 417.36 | 4.79 | 7166 | |||
13.4 | 2500 | 594.96 | 4.20 | 7967 | |||
18 | 3000 | 799.2 | 3.75 | 8710 | |||
25.5 | 3800 | 1132.2 | 3.36 | 9800 | |||
48 | 1.3 | 500 | 62.4 | 8.01 | 3721 | ||
2.2 | 750 | 105.6 | 7.10 | 4640 | |||
3.3 | 1000 | 158.4 | 6.31 | 5188 | |||
4.5 | 1250 | 216 | 5.79 | 5736 | |||
5.8 | 1500 | 278.4 | 5.39 | 6254 | |||
7.2 | 1750 | 345.6 | 5.06 | 6728 | |||
8.8 | 2000 | 422.4 | 4.73 | 7162 | |||
12.5 | 2500 | 600 | 4.17 | 7960 | |||
16.8 | 3000 | 806.4 | 3.72 | 8708 | |||
21.8 | 3500 | 1046.4 | 3.34 | 9385 | |||
29.8 | 4400 | 1430.4 | 3.08 | 10455 | |||
50 | 1.3 | 500 | 65 | 7.69 | 3719 | ||
2.2 | 750 | 110 | 6.82 | 4649 | |||
3.2 | 1000 | 160 | 6.25 | 5189 | |||
4.3 | 1250 | 215 | 5.81 | 5742 | |||
5.5 | 1500 | 275 | 5.45 | 6250 | |||
7 | 1750 | 350 | 5.00 | 6731 | |||
8.5 | 2000 | 425 | 4.71 | 7161 | |||
11.9 | 2500 | 595 | 4.20 | 7962 | |||
16 | 3000 | 800 | 3.75 | 8711 | |||
20.7 | 3500 | 1035 | 3.38 | 9380 | |||
26.3 | 4000 | 1315 | 3.04 | 9950 | |||
32.3 | 4500 | 1615 | 2.79 | 10750 | 130℃ | ||
EOLO 14*8 | 30.6 | 1.8 | 500 | 55.08 | 9.08 | 3230 |
|
2.85 | 750 | 87.21 | 8.60 | 3935 | |||
4.2 | 1000 | 128.52 | 7.78 | 4490 | |||
5.6 | 1250 | 171.36 | 7.29 | 5035 | |||
7.2 | 1500 | 220.32 | 6.81 | 5455 | |||
9.1 | 1750 | 278.46 | 6.28 | 5901 | |||
11 | 2000 | 336.6 | 5.94 | 6315 | |||
15.7 | 2570 | 480.42 | 5.35 | 7060 | |||
33.6 | 1.6 | 500 | 53.76 | 9.30 | 3231 | ||
2.65 | 750 | 89.04 | 8.42 | 3934 | |||
3.8 | 1000 | 127.68 | 7.83 | 4488 | |||
5.1 | 1250 | 171.36 | 7.29 | 5037 | |||
6.6 | 1500 | 221.76 | 6.76 | 5460 | |||
8.2 | 1750 | 275.52 | 6.35 | 5902 | |||
10 | 2000 | 336 | 5.95 | 6317 | |||
14.1 | 2500 | 473.76 | 5.28 | 6990 | |||
18.4 | 2930 | 618.24 | 4.74 | 7605 | |||
44.4 | 1.3 | 500 | 57.72 | 8.66 | 3235 | ||
2.1 | 750 | 93.24 | 8.04 | 3940 | |||
3 | 1000 | 133.2 | 7.51 | 4491 | |||
4 | 1250 | 177.6 | 7.04 | 5037 | |||
5.1 | 1500 | 226.44 | 6.62 | 5462 | |||
6.3 | 1750 | 279.72 | 6.26 | 5905 | |||
7.7 | 2000 | 341.88 | 5.85 | 6311 | |||
10.6 | 2500 | 470.64 | 5.31 | 6988 | |||
13.8 | 3000 | 612.72 | 4.90 | 7590 | |||
17.8 | 3500 | 790.32 | 4.43 | 8150 | |||
22.1 | 4000 | 981.24 | 4.08 | 8690 | |||
30.2 | 4650 | 1340.88 | 3.47 | 9545 | |||
48 | 1.2 | 500 | 57.6 | 8.68 | 3233 | ||
2 | 750 | 96 | 7.81 | 3942 | |||
2.8 | 1000 | 134.4 | 7.44 | 4495 | |||
3.7 | 1250 | 177.6 | 7.04 | 5031 | |||
4.7 | 1500 | 225.6 | 6.65 | 5468 | |||
5.9 | 1750 | 283.2 | 6.18 | 5910 | |||
7.1 | 2000 | 340.8 | 5.87 | 6312 | |||
9.8 | 2500 | 470.4 | 5.31 | 6985 | |||
12.9 | 3000 | 619.2 | 4.84 | 7588 | |||
16.3 | 3500 | 782.4 | 4.47 | 8149 | |||
20.3 | 4000 | 974.4 | 4.11 | 8691 | |||
35.7 | 5400 | 1713.6 | 3.15 | 10135 | |||
50 | 1.2 | 500 | 60 | 8.33 | 3230 | ||
1.9 | 750 | 95 | 7.89 | 3936 | |||
2.7 | 1000 | 135 | 7.41 | 4486 | |||
3.6 | 1250 | 180 | 6.94 | 5030 | |||
4.6 | 1500 | 230 | 6.52 | 5460 | |||
5.7 | 1750 | 285 | 6.14 | 5904 | |||
6.8 | 2000 | 340 | 5.88 | 6316 | |||
9.4 | 2500 | 470 | 5.32 | 6987 | |||
12.4 | 3000 | 620 | 4.84 | 7585 | |||
15.7 | 3500 | 785 | 4.46 | 8150 | |||
19.4 | 4000 | 970 | 4.12 | 8692 | |||
38.4 | 5600 | 1920 | 2.92 | 10480 | 2min 125℃ |
