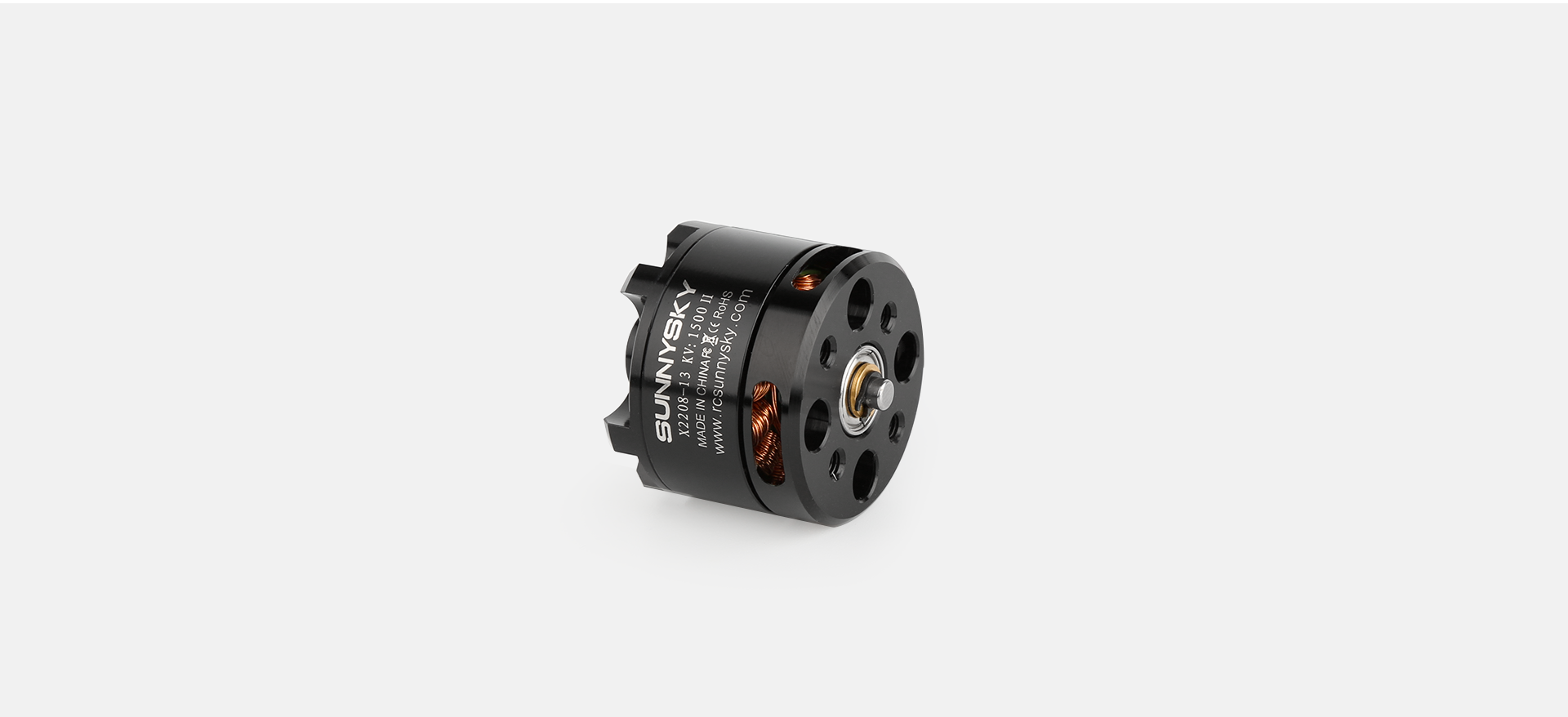

| Motor Model / KV | X2208/ KV1100 | X2208/ KV1260 | X2208/ KV1500 | X2208/ KV2600 |
|---|---|---|---|---|
| Stator/Rotor Poles | 12N14P | 12N14P | 12N14P | 12N14P |
| Internal resistance | 191mΩ | 122mΩ | 95mΩ | 34mΩ |

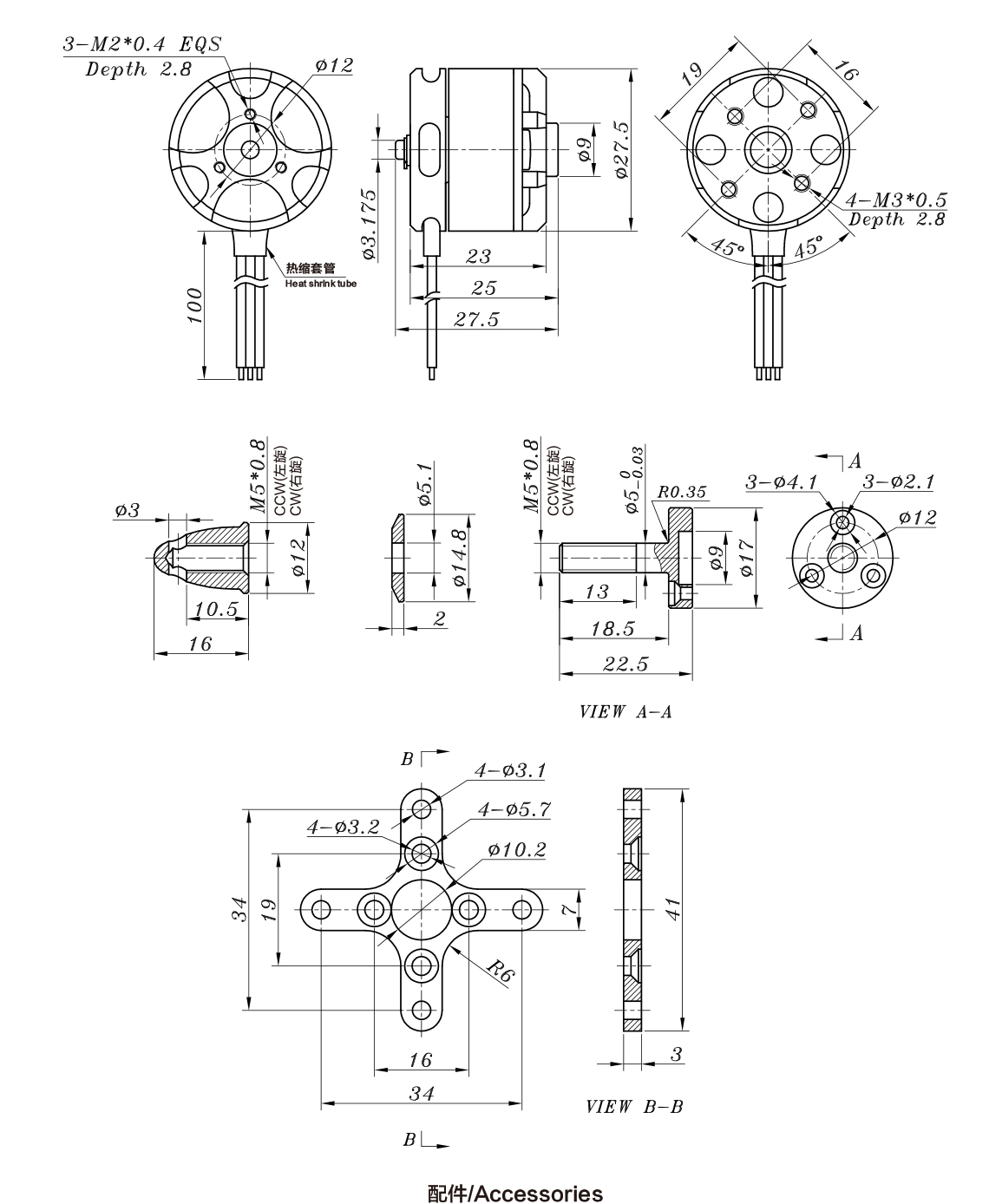

| Motor size | φ27.5*27.5mm |
φ27.5*27.5mm |
φ27.5*27.5mm |
φ27.5*27.5mm |
| Shaft diameter | 3.175mm | 3.175mm | 3.175mm | 3.175mm |
| AWG | 20AWG 100mm | 20AWG 100mm | 20AWG 100mm | 20AWG 100mm |
| Motor weight(wire included) | 46g | 46g | 46g | 46g |
| Motor weight(wire excluded) | No data | No data | No data | No data |
| Rated operational voltage | 2-4S | 2-4S | 2-4S | 2-3S |
| No-load current | 0.3A/10V | 0.4A/10V | 0.7A/10V | 1.2A/10V |
| Maximum continuous power | 205W | 168W | 240W | 330W |
| Maximum continuous current | 14A/15s | 15A/30s | 16A/30s | 30A/15s |
| ESC recommended use | 18A | 18A | 20A | 40A |
| Propeller size recommended use | APC9047/GWS9047/GWS9050/APC8038/GWS8043 | APC8038/GWS8043/APC9047/GWS8040/GWS9050 | APC8038/GWS8043/GWS8040/GWS9047/GWS9050/APC1047/APC9047 | 5030/5040/APC6040 |
| Stator Diameter | 22mm | Rotor Diameter | 27.5mm |
|---|---|---|---|
| Stator Thickness | 8mm | Shaft Diameter | 3.175mm |
| No.of Stator Slots | 12 | Body Length (Without Shaft) | 25mm |
| No.of Rotor Poles | 14 | Body Length | 27.2mm |
| Motor Kv | 1100 | Max Lipo Cell | 2-4S |
| No-load current | 0.3A/10V | ESC | 18A |
| Motor Resistance | 191mΩ | Recommended Prop(inch) | APC9047/GWS9047/GWS9050/APC8038/GWS8043 |
| Max Continuous Current | 14A/15s | Weight for training airplane | 440g (3S-4S 9047\9050\8043) |
| Max Continuous Power | 205W | Weight for aerobatics airplane | 400g (3S-4S 9047\9050\8043) |
| Weight | 46g | Weight for 3D airplane | 350g (3S 9047\9050) |
| Prop(inch) | Voltage(V) | Amps(A) | Thrust(gf) | Watts(W) | Efficiency(g/W) | Load temperature in 100% throttle |
|---|---|---|---|---|---|---|
| APC8038 | 11.1 | 0.8 | 100 | 8.88 | 11.26126126 | 45° |
| 2.2 | 200 | 24.42 | 8.19000819 | |||
| 3.8 | 300 | 42.18 | 7.112375533 | |||
| 5.7 | 400 | 63.27 | 6.322111585 | |||
| 7.9 | 515 | 87.69 | 5.872961569 | |||
| 14.8 | 0.6 | 100 | 8.88 | 11.26126126 | ||
| 1.7 | 200 | 25.16 | 7.949125596 | |||
| 3 | 300 | 44.4 | 6.756756757 | |||
| 4.5 | 400 | 66.6 | 6.006006006 | |||
| 6.3 | 500 | 93.24 | 5.362505363 | |||
| 8.2 | 600 | 121.36 | 4.943968359 | |||
| 10.7 | 700 | 158.36 | 4.420308159 | |||
| 12.5 | 800 | 185 | 4.324324324 | |||
| APC9047 | 11.1 | 0.7 | 100 | 7.77 | 12.87001287 | 56° |
| 1.9 | 200 | 21.09 | 9.483167378 | |||
| 3.3 | 300 | 36.63 | 8.19000819 | |||
| 5 | 400 | 55.5 | 7.207207207 | |||
| 7.2 | 500 | 79.92 | 6.256256256 | |||
| 9 | 600 | 99.9 | 6.006006006 | |||
| 14.8 | 0.5 | 100 | 7.4 | 13.51351351 | ||
| 1.5 | 200 | 22.2 | 9.009009009 | |||
| 2.7 | 300 | 39.96 | 7.507507508 | |||
| 4.2 | 400 | 62.16 | 6.435006435 | |||
| 5.8 | 500 | 85.84 | 5.824790308 | |||
| 7.6 | 600 | 112.48 | 5.33428165 | |||
| 9.7 | 700 | 143.56 | 4.876010031 | |||
| 11.7 | 800 | 173.16 | 4.62000462 | |||
| 13 | 880 | 192.4 | 4.573804574 | |||
| GWS8043 | 11.1 | 0.8 | 100 | 8.88 | 11.26126126 | 45° |
| 2.1 | 200 | 23.31 | 8.58000858 | |||
| 3.5 | 300 | 38.85 | 7.722007722 | |||
| 5.3 | 400 | 58.83 | 6.799252082 | |||
| 6.8 | 470 | 75.48 | 6.22681505 | |||
| 14.8 | 0.6 | 100 | 8.88 | 11.26126126 | ||
| 1.6 | 200 | 23.68 | 8.445945946 | |||
| 3 | 300 | 44.4 | 6.756756757 | |||
| 4.3 | 400 | 63.64 | 6.285355123 | |||
| 6 | 500 | 88.8 | 5.630630631 | |||
| 7.5 | 600 | 111 | 5.405405405 | |||
| 9.6 | 700 | 142.08 | 4.926801802 | |||
| 10.2 | 740 | 150.96 | 4.901960784 |
| Stator Diameter | 22mm | Rotor Diameter | 27.5mm |
|---|---|---|---|
| Stator Thickness | 8mm | Shaft Diameter | 3.175mm |
| No.of Stator Slots | 12 | Body Length (Without Shaft) | 25mm |
| No.of Rotor Poles | 14 | Body Length | 27.2mm |
| Motor Kv | 1260 | Max Lipo Cell | 2-4S |
| No-load current | 0.4A/10V | ESC | 18A |
| Motor Resistance | 122mΩ | Recommended Prop(inch) | APC8038/GWS8043/APC9047/GWS8040/GWS9050 |
| Max Continuous Current | 15A/30s | Weight for training airplane | 500g (3S 8038\8043\8040) |
| Max Continuous Power | 168W | Weight for aerobatics airplane | 420g (3S 9047\9050) |
| Weight | 46g | Weight for 3D airplane | 350g (3S 9047\9050) |
| Prop(inch) | Voltage(V) | Amps(A) | Thrust(gf) | Watts(W) | Efficiency(g/W) | Load temperature in 100% throttle |
|---|---|---|---|---|---|---|
| APC8038 | 11.1 | 1 | 100 | 11.1 | 9.009009009 | 48° |
| 2.3 | 200 | 25.53 | 7.833920877 | |||
| 3.9 | 300 | 43.29 | 6.93000693 | |||
| 5.7 | 400 | 63.27 | 6.322111585 | |||
| 7.9 | 500 | 87.69 | 5.701904436 | |||
| 10.8 | 600 | 119.88 | 5.005005005 | |||
| 11.4 | 630 | 126.54 | 4.978662873 | |||
| GWS8043 | 11.1 | 0.9 | 100 | 9.99 | 10.01001001 | 45° |
| 2.2 | 200 | 24.42 | 8.19000819 | |||
| 3.8 | 300 | 42.18 | 7.112375533 | |||
| 5.7 | 400 | 63.27 | 6.322111585 | |||
| 7.7 | 500 | 85.47 | 5.85000585 | |||
| 9.6 | 600 | 106.56 | 5.630630631 | |||
| APC1047 | 7.4 | 1.1 | 100 | 8.14 | 12.28501229 | 45° |
| 2.7 | 200 | 19.98 | 10.01001001 | |||
| 4.4 | 300 | 32.56 | 9.213759214 | |||
| 7 | 400 | 51.8 | 7.722007722 | |||
| 9.9 | 500 | 73.26 | 6.825006825 | |||
| 11.7 | 570 | 86.58 | 6.583506584 | |||
| APC9047 | 7.4 | 1.2 | 100 | 8.88 | 11.26126126 | 52° |
| 2.9 | 200 | 21.46 | 9.319664492 | |||
| 5 | 300 | 37 | 8.108108108 | |||
| 8 | 420 | 59.2 | 7.094594595 | |||
| 11.1 | 0.8 | 100 | 8.88 | 11.26126126 | ||
| 2 | 200 | 22.2 | 9.009009009 | |||
| 3.6 | 300 | 39.96 | 7.507507508 | |||
| 5.4 | 400 | 59.94 | 6.673340007 | |||
| 7.2 | 500 | 79.92 | 6.256256256 | |||
| 9.4 | 600 | 104.34 | 5.750431282 | |||
| 12 | 700 | 133.2 | 5.255255255 | |||
| 13.9 | 780 | 154.29 | 5.055415127 |
| Stator Diameter | 22mm | Rotor Diameter | 27.5mm |
|---|---|---|---|
| Stator Thickness | 8mm | Shaft Diameter | 3.175mm |
| No.of Stator Slots | 12 | Body Length (Without Shaft) | 25mm |
| No.of Rotor Poles | 14 | Body Length | 27.2mm |
| Motor Kv | 1500 | Max Lipo Cell | 2-4S |
| No-load current | 0.7A/10V | ESC | 20A |
| Motor Resistance | 95mΩ | Recommended Prop(inch) | APC8038/GWS8043/GWS8040/GWS9047/GWS9050/APC1047/APC9047 |
| Max Continuous Current | 16A/30s | Weight for training airplane | 450g (2S 9047\9050\1047) |
| Max Continuous Power | 240W | Weight for aerobatics airplane | 400g (3S 8038\8040\8043) |
| Weight | 46g | Weight for 3D airplane | 320g (3S 8038\8040\8043) |
| Prop(inch) | Voltage(V) | Amps(A) | Thrust(gf) | Watts(W) | Efficiency(g/W) | Load temperature in 100% throttle |
|---|---|---|---|---|---|---|
| APC8038 | 11.1 | 1 | 100 | 11.1 | 9.009009009 | 52° |
| 2.4 | 200 | 26.64 | 7.507507508 | |||
| 4.4 | 300 | 48.84 | 6.142506143 | |||
| 6.5 | 400 | 72.15 | 5.544005544 | |||
| 9.1 | 500 | 101.01 | 4.95000495 | |||
| 11.7 | 600 | 129.87 | 4.62000462 | |||
| 17.5 | 760 | 194.25 | 3.912483912 | |||
| GWS8043 | 11.1 | 0.9 | 100 | 9.99 | 10.01001001 | 42° |
| 2.2 | 200 | 24.42 | 8.19000819 | |||
| 4 | 300 | 44.4 | 6.756756757 | |||
| 5.9 | 400 | 65.49 | 6.107802718 | |||
| 8.3 | 500 | 92.13 | 5.427113861 | |||
| 10.5 | 600 | 116.55 | 5.148005148 | |||
| 15.3 | 780 | 169.83 | 4.592828122 | |||
| APC9047 | 11.1 | 0.9 | 100 | 9.99 | 10.01001001 | 61° |
| 2.1 | 200 | 23.31 | 8.58000858 | |||
| 3.9 | 300 | 43.29 | 6.93000693 | |||
| 5.9 | 400 | 65.49 | 6.107802718 | |||
| 8.4 | 500 | 93.24 | 5.362505363 | |||
| 10.9 | 600 | 120.99 | 4.959087528 | |||
| 13.5 | 700 | 149.85 | 4.671338005 | |||
| 21 | 960 | 233.1 | 4.118404118 | |||
| 7.4 | 1.2 | 100 | 8.88 | 11.26126126 | ||
| 3.2 | 200 | 23.68 | 8.445945946 | |||
| 5.4 | 300 | 39.96 | 7.507507508 | |||
| 8.1 | 400 | 59.94 | 6.673340007 | |||
| 12.7 | 550 | 93.98 | 5.852309002 | |||
| APC1047 | 7.4 | 1.2 | 100 | 8.88 | 11.26126126 | 42° |
| 2.9 | 200 | 21.46 | 9.319664492 | |||
| 5 | 300 | 37 | 8.108108108 | |||
| 7.6 | 400 | 56.24 | 7.112375533 | |||
| 10.8 | 500 | 79.92 | 6.256256256 | |||
| 16 | 680 | 118.4 | 5.743243243 |
| Stator Diameter | 22mm | Rotor Diameter | 27.5mm |
|---|---|---|---|
| Stator Thickness | 8mm | Shaft Diameter | 3.175mm |
| No.of Stator Slots | 12 | Body Length (Without Shaft) | 25mm |
| No.of Rotor Poles | 14 | Body Length | 27.2mm |
| Motor Kv | 2600 | Max Lipo Cell | 2-3S |
| No-load current | 1.2A/10V | ESC | 40A |
| Motor Resistance | 34mΩ | Recommended Prop(inch) | 5030/5040/APC6040 |
| Max Continuous Current | 30A/15s | Weight for tail-pushed Aerobatics | 450g (3S 5040\6030\6040) |
| Max Continuous Power | 330W | ||
| Weight | 40g |
| Prop(inch) | Voltage(V) | Amps(A) | Thrust(gf) | Watts(W) | Efficiency(g/W) | Load temperature in 100% throttle |
|---|---|---|---|---|---|---|
| APC6X4 | 11.1 | 1.8 | 100 | 19.98 | 5.005005005 | 52° |
| 4.2 | 200 | 46.62 | 4.29000429 | |||
| 6.8 | 300 | 75.48 | 3.974562798 | |||
| 9.7 | 400 | 107.67 | 3.715055261 | |||
| 13.4 | 500 | 148.74 | 3.361570526 | |||
| 16.7 | 600 | 185.37 | 3.236769704 | |||
| 21 | 700 | 233.1 | 3.003003003 | |||
| 27.5 | 800 | 305.25 | 2.620802621 |
