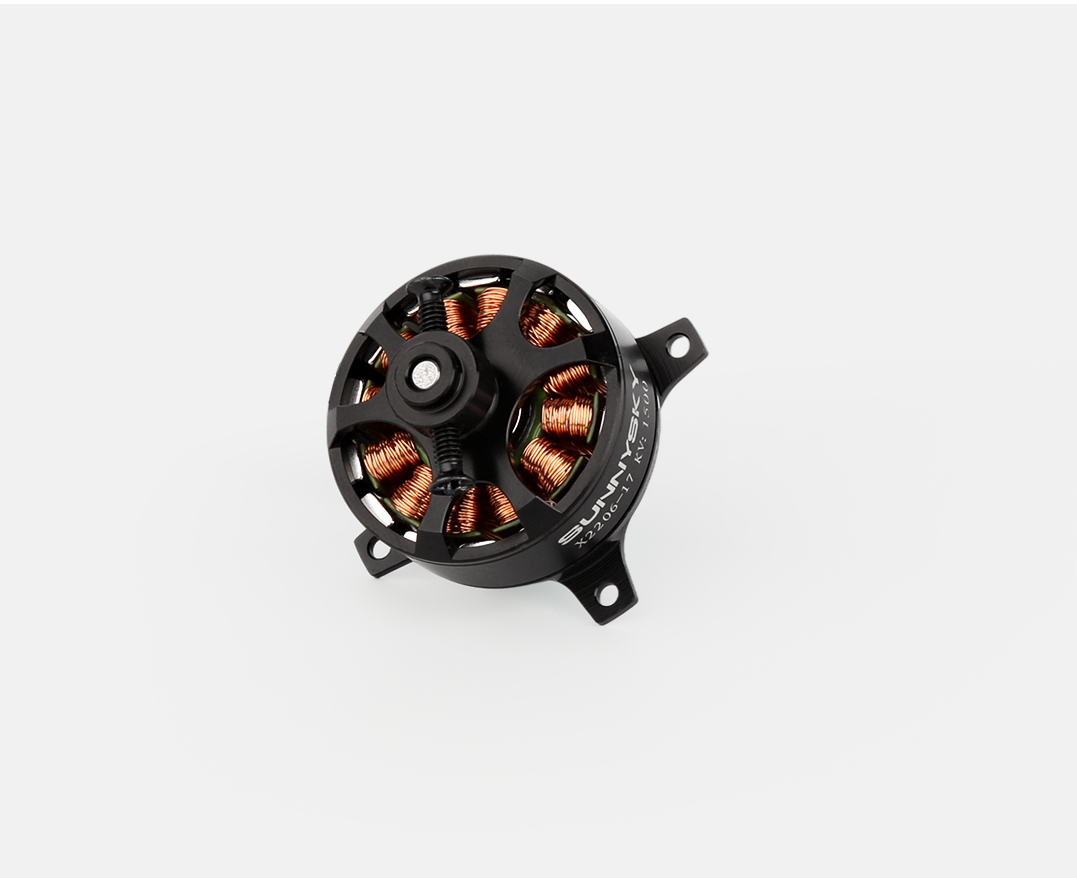

| Motor Model / KV | X2206/ KV1500 | X2206/ KV1900 |
|---|---|---|
| Stator/Rotor Poles | 12N14P | 12N14P |
| Internal resistance | 147mΩ | 112mΩ |

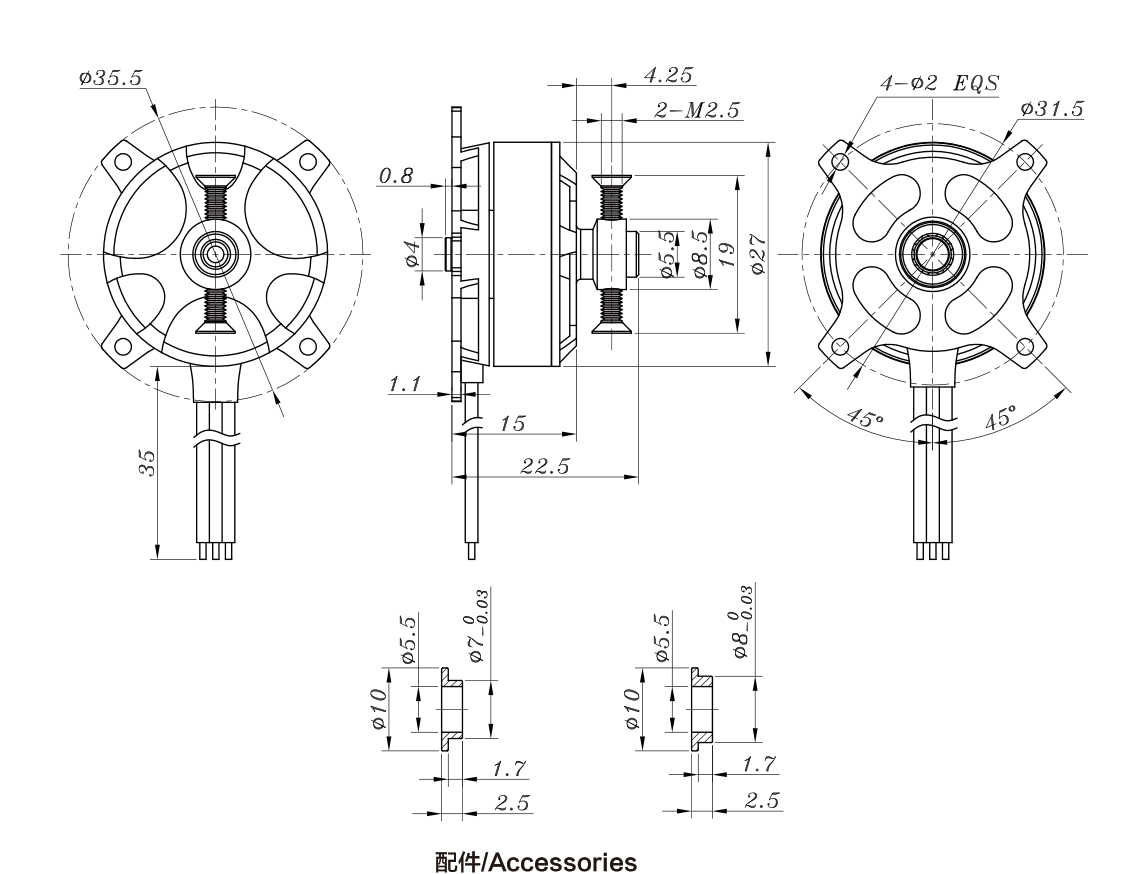

| Motor size | φ27.0*22.5mm |
φ27.0*22.5mm |
| Shaft diameter | 4.0mm | 4.0mm |
| AWG | 20AWG 35mm | 20AWG 35mm |
| Motor weight(wire included) | 25.2g | 25g |
| Motor weight(wire excluded) | No data | No data |
| Rated operational voltage | 2-3S | 2-3S |
| No-load current | 0.3A/10V | 0.3A/10V |
| Maximum continuous power | 150W | 150W |
| Maximum continuous current | 13A/30s | 13A/30s |
| ESC recommended use | 12A | 15A |
| Propeller size recommended use | GWS8043/GWS9047/GWS8040/GWS9050 | GWS8043/GWS9047/GWS8040/GWS9050 |
| Stator Diameter | 22mm | Rotor Diameter | 27mm |
|---|---|---|---|
| Stator Thickness | 6mm | Shaft Diameter | 3mm |
| No.of Stator Slots | 12 | Body Length (Without Shaft) | 22.5mm |
| No.of Rotor Poles | 14 | Body Length | 23.3mm |
| Motor Kv | 1500 | Max Lipo Cell |
2-3S |
| No-load current | 0.3A/10V | ESC | 12A |
| Motor Resistance | 147mΩ | Recommended Prop(inch) | GWS8040/GWS8043/GWS9050/GWS9047 |
| Max Continuous Current | 13A/30s | Weight for aerobatics airplane | 300g (3S GWS8040\GWS8043) |
| Max Continuous Power | 150W | Weight for 3D airplane | 180g (2S GWS9047\GWS9050) |
| Weight | 25.2g | Weight for 3D airplane | 240g (3S GWS8040\GWS8043) |
| Prop(inch) | Voltage(V) | Amps(A) | Thrust(gf) | Watts(W) | Efficiency(g/W) | Load temperature in 100% throttle |
|---|---|---|---|---|---|---|
| GWS8043 | 7.4 | 1.3 | 100 | 9.62 | 10.3950104 | 61° |
| 2.1 | 150 | 15.54 | 9.652509653 | |||
| 3.2 | 200 | 23.68 | 8.445945946 | |||
| 4.3 | 250 | 31.82 | 7.856693903 | |||
| 5.4 | 300 | 39.96 | 7.507507508 | |||
| 6.8 | 350 | 50.32 | 6.955484897 | |||
| 7.9 | 390 | 58.46 | 6.67122819 | |||
| 11.1 | 0.9 | 100 | 9.99 | 10.01001001 | ||
| 1.6 | 150 | 17.76 | 8.445945946 | |||
| 2.4 | 200 | 26.64 | 7.507507508 | |||
| 3.2 | 250 | 35.52 | 7.038288288 | |||
| 4.2 | 300 | 46.62 | 6.435006435 | |||
| 5 | 350 | 55.5 | 6.306306306 | |||
| 6.2 | 400 | 68.82 | 5.812263877 | |||
| 7.3 | 450 | 81.03 | 5.553498704 | |||
| 8.5 | 500 | 94.35 | 5.299417064 | |||
| 9.9 | 550 | 109.89 | 5.005005005 | |||
| 11.4 | 600 | 126.54 | 4.741583689 | |||
| 12.9 | 655 | 143.19 | 4.574341784 | |||
| GWS9047 | 7.4 | 1.3 | 100 | 9.62 | 10.3950104 | 52° |
| 2.1 | 150 | 15.54 | 9.652509653 | |||
| 3.1 | 200 | 22.94 | 8.718395815 | |||
| 4.3 | 250 | 31.82 | 7.856693903 | |||
| 5.7 | 300 | 42.18 | 7.112375533 | |||
| 6.8 | 350 | 50.32 | 6.955484897 | |||
| 8.2 | 400 | 60.68 | 6.591957811 | |||
| 11 | 490 | 81.4 | 6.01965602 | |||
| GWS1047 | 7.4 | 1.2 | 100 | 8.88 | 11.26126126 | 56° |
| 2 | 150 | 14.8 | 10.13513514 | |||
| 3.1 | 200 | 22.94 | 8.718395815 | |||
| 4.2 | 250 | 31.08 | 8.043758044 | |||
| 5.5 | 300 | 40.7 | 7.371007371 | |||
| 7 | 350 | 51.8 | 6.756756757 | |||
| 8.8 | 400 | 65.12 | 6.142506143 | |||
| 10.7 | 450 | 79.18 | 5.683253347 | |||
| 13.7 | 525 | 101.38 | 5.1785362 | |||
| GWS9050 | 7.4 | 1.2 | 100 | 8.88 | 11.26126126 | 46° |
| 2.1 | 150 | 15.54 | 9.652509653 | |||
| 3.1 | 200 | 22.94 | 8.718395815 | |||
| 4 | 250 | 29.6 | 8.445945946 | |||
| 5.2 | 300 | 38.48 | 7.796257796 | |||
| 6.6 | 350 | 48.84 | 7.166257166 | |||
| 8 | 400 | 59.2 | 6.756756757 | |||
| 10.1 | 470 | 74.74 | 6.288466685 | |||
| GWS8040 | 7.4 | 1.2 | 100 | 8.88 | 11.26126126 | 48° |
| 2.1 | 150 | 15.54 | 9.652509653 | |||
| 3.2 | 200 | 23.68 | 8.445945946 | |||
| 4 | 250 | 29.6 | 8.445945946 | |||
| 5.2 | 300 | 38.48 | 7.796257796 | |||
| 6.6 | 350 | 48.84 | 7.166257166 | |||
| 11.1 | 0.9 | 100 | 9.99 | 10.01001001 | ||
| 1.5 | 150 | 16.65 | 9.009009009 | |||
| 2.3 | 200 | 25.53 | 7.833920877 | |||
| 3.1 | 250 | 34.41 | 7.265329846 | |||
| 3.9 | 300 | 43.29 | 6.93000693 | |||
| 4.9 | 350 | 54.39 | 6.435006435 | |||
| 5.8 | 400 | 64.38 | 6.213109661 | |||
| 6.9 | 450 | 76.59 | 5.875440658 | |||
| 8.1 | 500 | 89.91 | 5.561116672 | |||
| 9.2 | 550 | 102.12 | 5.385820603 | |||
| 11.7 | 640 | 129.87 | 4.928004928 | |||
| GWS8060 | 7.4 | 1.4 | 100 | 10.36 | 9.652509653 | 52° |
| 2.4 | 150 | 17.76 | 8.445945946 | |||
| 3.6 | 200 | 26.64 | 7.507507508 | |||
| 5 | 250 | 37 | 6.756756757 | |||
| 6.5 | 300 | 48.1 | 6.237006237 | |||
| 8.4 | 350 | 62.16 | 5.630630631 | |||
| 10.3 | 410 | 76.22 | 5.379165573 |
| Stator Diameter | 22mm | Rotor Diameter | 27mm |
|---|---|---|---|
| Stator Thickness | 6mm | Shaft Diameter | 3mm |
| No.of Stator Slots | 12 | Body Length (Without Shaft) | 22.5mm |
| No.of Rotor Poles | 14 | Body Length | 23.3mm |
| Motor Kv | 1900 | Max Lipo Cell | 2-3S |
| No-load current | 0.6A/10V | ESC | 15A |
| Motor Resistance | 112mΩ | Recommended Prop(inch) | GWS8043/GWS9047/GWS8040/GWS9050 |
| Max Continuous Current | 13A/30s | ||
| Max Continuous Power | 150W | ||
| Weight | 25g |
| Prop(inch) | Voltage(V) | Amps(A) | Thrust(gf) | Watts(W) | Efficiency(g/W) | Load temperature in 100% throttle |
|---|---|---|---|---|---|---|
| GWS8043 | 7.4 | 0.6 | 50 | 4.44 | 11.26126126 | 48° |
| 1.4 | 100 | 10.36 | 9.652509653 | |||
| 2.4 | 150 | 17.76 | 8.445945946 | |||
| 3.6 | 200 | 26.64 | 7.507507508 | |||
| 4.8 | 250 | 35.52 | 7.038288288 | |||
| 6.2 | 300 | 45.88 | 6.538796861 | |||
| 7.9 | 350 | 58.46 | 5.986999658 | |||
| 9.8 | 400 | 72.52 | 5.515719801 | |||
| 11.7 | 450 | 86.58 | 5.197505198 | |||
| 12.5 | 470 | 92.5 | 5.081081081 | |||
| GWS8040 | 7.4 | 0.5 | 50 | 3.7 | 13.51351351 | 67° |
| 1.3 | 100 | 9.62 | 10.3950104 | |||
| 2.3 | 150 | 17.02 | 8.813160987 | |||
| 3.3 | 200 | 24.42 | 8.19000819 | |||
| 4.5 | 250 | 33.3 | 7.507507508 | |||
| 5.8 | 300 | 42.92 | 6.989748369 | |||
| 7.2 | 350 | 53.28 | 6.569069069 | |||
| 8.9 | 400 | 65.86 | 6.07348922 | |||
| 10.1 | 450 | 74.74 | 6.020872358 | |||
| GWS9047 | 7.4 | 0.5 | 50 | 3.7 | 13.51351351 | |
| 1.3 | 100 | 9.62 | 10.3950104 | |||
| 2.3 | 150 | 17.02 | 8.813160987 | |||
| 3.3 | 200 | 24.42 | 8.19000819 | |||
| 4.5 | 250 | 33.3 | 7.507507508 | |||
| 5.9 | 300 | 43.66 | 6.871278058 | |||
| 7.7 | 350 | 56.98 | 6.142506143 | |||
| 9.4 | 400 | 69.56 | 5.750431282 | |||
| 11.6 | 450 | 85.84 | 5.242311277 | |||
| 13.6 | 500 | 100.64 | 4.968203498 | |||
| 14.9 | 520 | 110.26 | 4.716125521 | |||
| GWS9050 | 7.4 | 0.5 | 50 | 3.7 | 13.51351351 | 52° |
| 1.3 | 100 | 9.62 | 10.3950104 | |||
| 2.2 | 150 | 16.28 | 9.213759214 | |||
| 3.1 | 200 | 22.94 | 8.718395815 | |||
| 4.3 | 250 | 31.82 | 7.856693903 | |||
| 5.6 | 300 | 41.44 | 7.239382239 | |||
| 7.1 | 350 | 52.54 | 6.661591169 | |||
| 8.7 | 400 | 64.38 | 6.213109661 | |||
| 10.7 | 450 | 79.18 | 5.683253347 | |||
| 13 | 500 | 96.2 | 5.197505198 | |||
| 14 | 520 | 103.6 | 5.019305019 |
