| Motor Model / KV | X2204/ KV1480 | X2204/ KV1800 |
|---|---|---|
| Stator/Rotor Poles | 12N14P | 12N14P |
| Internal resistance | 338mΩ | 156mΩ |

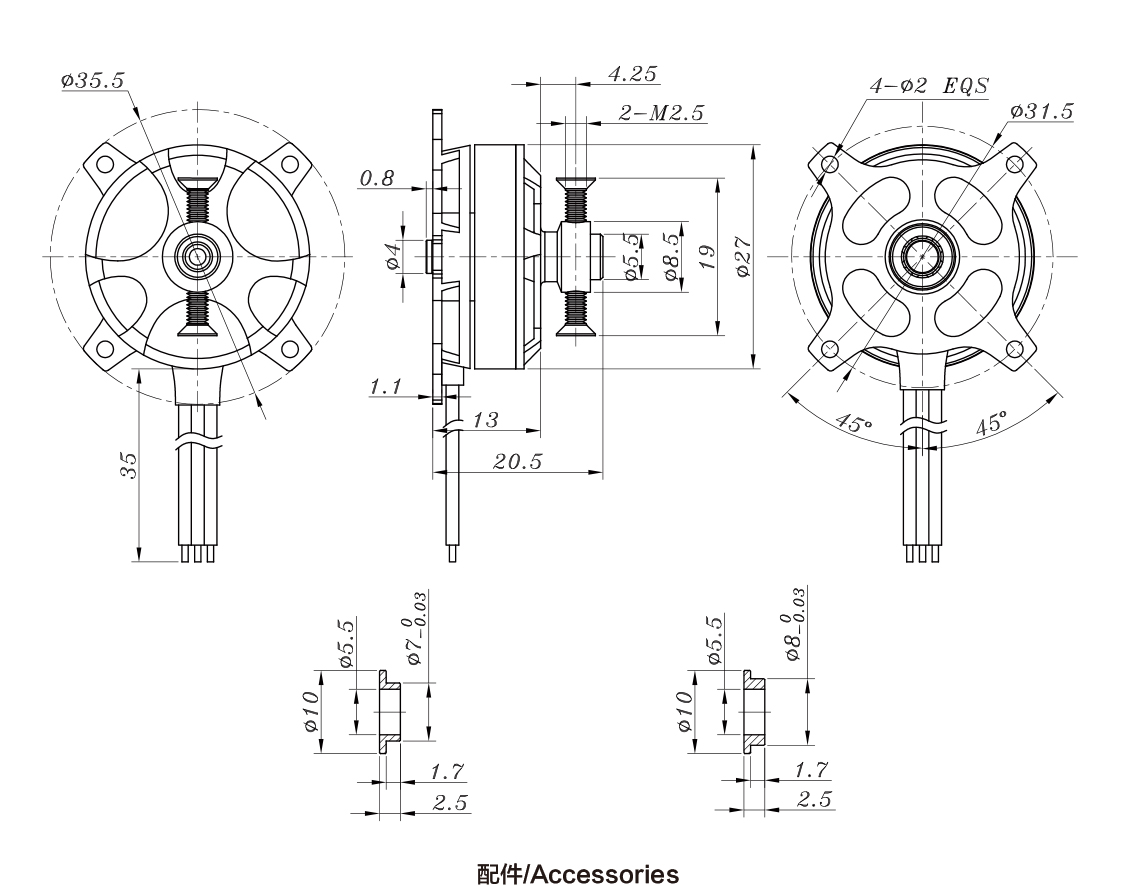

| Motor size | φ27.0*20.5mm |
φ27.0*20.5mm |
| Shaft diameter | 4.0mm | 4.0mm |
| AWG | 20AWG 35mm | 20AWG 35mm |
| Motor weight(wire included) | 19.6g | 19.6g |
| Motor weight(wire excluded) | No data | No data |
| Rated operational voltage | 2-3S | 2-3S |
| No-load current | 0.1A/10V | 0.2A/10V |
| Maximum continuous power | 120W | 140W |
| Maximum continuous current | 11A/15s | 12.5A/15s |
| ESC recommended use | 10A | 12A |
| Propeller size recommended use | GWS8040/GWS8043/GWS9047/GWS9050 | GWS8040/GWS8043/GWS9050/GWS9047 |
| Stator Diameter | 22mm | Rotor Diameter | 27mm |
|---|---|---|---|
| Stator Thickness | 4mm | Shaft Diameter | 3mm |
| No.of Stator Slots | 12 | Body Length(Without Shaft) | 20.4mm |
| No.of Rotor Poles | 14 | Body Length | 21.1mm |
| Motor Kv | 1480 | Max Lipo Cell | 2-3S |
| No-load current | 0.1A/10V | ESC | 10A |
| Motor Resistance | 338mΩ | Recommended Prop(inch) | GWS8040/GWS8043/GWS9047/GWS9050 |
| Max Continuous Current | 11A/15s | Weight for aerobatics airplane | 180g (3S GWS8040\GWS8043) |
| Max Continuous Power | 120W | Weight for 3D airplane | 135g (2S GWS9047\GWS9050) |
| Weight | 19.6g |
| Prop(inch) | Voltage(V) | Amps(A) | Thrust(gf) | Watts(W) | Efficiency(g/W) | Load temperature in 100% throttle |
|---|---|---|---|---|---|---|
| GWS9047 | 7.4 | 1.3 | 100 | 9.62 | 10.3950104 | 40° |
| 2.2 | 150 | 16.28 | 9.213759214 | |||
| 3.3 | 200 | 24.42 | 8.19000819 | |||
| 4.8 | 250 | 35.52 | 7.038288288 | |||
| 6.3 | 300 | 46.62 | 6.435006435 | |||
| 6.6 | 320 | 48.84 | 6.552006552 | |||
| GWS9050 | 7.4 | 1.2 | 100 | 8.88 | 11.26126126 | 40° |
| 2.1 | 150 | 15.54 | 9.652509653 | |||
| 3.2 | 200 | 23.68 | 8.445945946 | |||
| 4.5 | 250 | 33.3 | 7.507507508 | |||
| 6.1 | 310 | 45.14 | 6.867523261 | |||
| GWS8040 | 7.4 | 1.2 | 100 | 8.88 | 11.26126126 | 42° |
| 2.1 | 150 | 15.54 | 9.652509653 | |||
| 3 | 200 | 22.2 | 9.009009009 | |||
| 4.1 | 250 | 30.34 | 8.239947264 | |||
| 11.1 | 0.9 | 100 | 9.99 | 10.01001001 | ||
| 1.5 | 150 | 16.65 | 9.009009009 | |||
| 2.3 | 200 | 25.53 | 7.833920877 | |||
| 3.1 | 250 | 34.41 | 7.265329846 | |||
| 4.2 | 300 | 46.62 | 6.435006435 | |||
| 5.3 | 350 | 58.83 | 5.949345572 | |||
| 7.1 | 420 | 78.81 | 5.329272935 | |||
| GWS8043 | 7.4 | 1.3 | 100 | 9.62 | 10.3950104 | 54° |
| 2.2 | 150 | 16.28 | 9.213759214 | |||
| 3.3 | 200 | 24.42 | 8.19000819 | |||
| 5 | 265 | 37 | 7.162162162 | |||
| 11.1 | 0.9 | 100 | 9.99 | 10.01001001 | ||
| 1.5 | 150 | 16.65 | 9.009009009 | |||
| 2.4 | 200 | 26.64 | 7.507507508 | |||
| 3.3 | 250 | 36.63 | 6.825006825 | |||
| 4.3 | 300 | 47.73 | 6.285355123 | |||
| 5.6 | 350 | 62.16 | 5.630630631 | |||
| 7.2 | 400 | 79.92 | 5.005005005 | |||
| 8.4 | 450 | 93.24 | 4.826254826 | |||
| GWS7035 | 11.1 | 1.1 | 100 | 12.21 | 8.19000819 | 37° |
| 1.8 | 150 | 19.98 | 7.507507508 | |||
| 2.6 | 200 | 28.86 | 6.93000693 | |||
| 3.6 | 260 | 39.96 | 6.506506507 |
| Stator Diameter | 22mm | Rotor Diameter | 27mm |
|---|---|---|---|
| Stator Thickness | 4mm | Shaft Diameter | 3mm |
| No.of Stator Slots | 12 | Body Length (Without Shaft) | 20.4mm |
| No.of Rotor Poles | 14 | Body Length | 21.1mm |
| Motor Kv | 1800 | Max Lipo Cell | 2-3S |
| No-load current | 0.2A/10V | ESC | 12A |
| Motor Resistance | 156mΩ | Recommended Prop(inch) | GWS8040/GWS8043/GWS9050/GWS9047 |
| Max Continuous Current | 12.5A/15s | Weight for aerobatics airplane | 200g (2S GWS8040\GWS8043) |
| Max Continuous Power | 140W | Weight for 3D airplane | 155g (2S GWS9047\GWS9050\GWS8040\GWS8043) |
| Weight | 19.6g |
| Prop(inch) | Voltage(V) | Amps(A) | Thrust(gf) | Watts(W) | Efficiency(g/W) | Load temperature in 100% throttle |
|---|---|---|---|---|---|---|
| GWS8040 | 7.4 | 1.4 | 100 | 10.36 | 9.652509653 | 65° |
| 2.3 | 150 | 17.02 | 8.813160987 | |||
| 3.4 | 200 | 25.16 | 7.949125596 | |||
| 4.5 | 250 | 33.3 | 7.507507508 | |||
| 6 | 300 | 44.4 | 6.756756757 | |||
| 7.5 | 350 | 55.5 | 6.306306306 | |||
| 8.4 | 380 | 62.16 | 6.113256113 | |||
| 11.1 | 1 | 100 | 11.1 | 9.009009009 | ||
| 1.6 | 150 | 17.76 | 8.445945946 | |||
| 2.5 | 200 | 27.75 | 7.207207207 | |||
| 3.5 | 250 | 38.85 | 6.435006435 | |||
| 4.5 | 300 | 49.95 | 6.006006006 | |||
| 5.6 | 350 | 62.16 | 5.630630631 | |||
| 7 | 400 | 77.7 | 5.148005148 | |||
| 8.3 | 450 | 92.13 | 4.884402475 | |||
| 10 | 500 | 111 | 4.504504505 | |||
| 12 | 550 | 133.2 | 4.129129129 | |||
| 13 | 575 | 144.3 | 3.984753985 | |||
| GWS9047 | 7.4 | 1.4 | 100 | 10.36 | 9.652509653 | 48° |
| 2.5 | 150 | 18.5 | 8.108108108 | |||
| 3.6 | 200 | 26.64 | 7.507507508 | |||
| 5.1 | 250 | 37.74 | 6.62427133 | |||
| 6.4 | 300 | 47.36 | 6.334459459 | |||
| 8 | 350 | 59.2 | 5.912162162 | |||
| 10 | 410 | 74 | 5.540540541 | |||
| GWS9050 | 7.4 | 1.3 | 100 | 9.62 | 10.3950104 | 55° |
| 2.2 | 150 | 16.28 | 9.213759214 | |||
| 3.3 | 200 | 24.42 | 8.19000819 | |||
| 4.6 | 250 | 34.04 | 7.344300823 | |||
| 6.1 | 300 | 45.14 | 6.645990253 | |||
| 8.1 | 350 | 59.94 | 5.839172506 | |||
| 10.2 | 400 | 75.48 | 5.299417064 | |||
| 12 | 450 | 88.8 | 5.067567568 | |||
| GWS8043 | 7.4 | 1.4 | 100 | 10.36 | 9.652509653 | 44° |
| 2.5 | 150 | 18.5 | 8.108108108 | |||
| 3.7 | 200 | 27.38 | 7.304601899 | |||
| 5 | 250 | 37 | 6.756756757 | |||
| 6.5 | 300 | 48.1 | 6.237006237 | |||
| 8.1 | 350 | 59.94 | 5.839172506 | |||
| 10 | 410 | 74 | 5.540540541 |
