V5208
Details Technical parameters Test report Package including Photos
@@title

V5208英文_02.jpgV5208英文_03.jpgV5208英文_04.jpgV5208英文_05.jpgV5208英文_06.jpgV5208英文_07.jpgV5208英文_08.jpg

V5208MC_01.jpgV5208MC_02.jpgV5208MC_03.jpgV5208MC_04.jpgV5208MC_05.jpgV5208MC_06.jpgV5208MC_07.jpgV5208MC_08.jpg

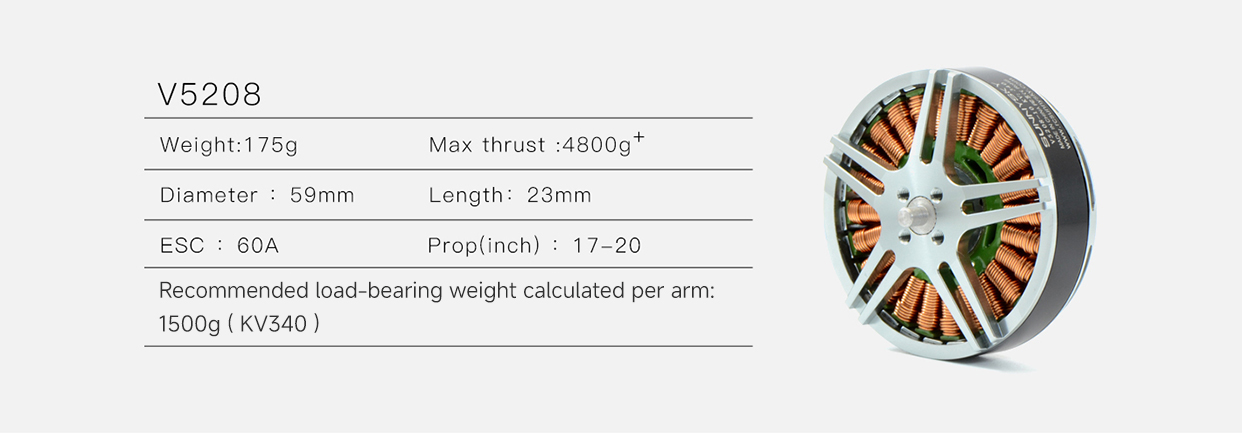

Motor Model / KV V5208/ KV340
Stator/Rotor Poles 24N28P
Internal resistance 78mΩ
Motor size φ59*23mm
Shaft diameter 4.0mm
AWG 20AWG 600mm
Motor weight(wire included) 175g
Motor weight(wire excluded) No data
Rated operational voltage 4-6S
No-load current 0.8A/10V
Maximum continuous power 880W
Maximum continuous current 38A/30s
ESC recommended use EOLO 50A
Propeller size recommended use EOLO CN15*5.5/CN17*6.2/C18*6.5/C20*6.2

V5208

KV340

Specifications

V5208

Max Continuous Current

38A/30s

Stator Diameter

52mm

Max Continuous Power

950W

Stator Thickness

8mm

Weight

175g

No.of Stator Slots

24

Rotor Diameter

59mm

No.of Rotor Poles

28

Body Length

23mm

Motor Kv

340

Max Lipo Cell

6S

NO-Load Current(A/10V)

0.8A

ESC

EOLO 50A

Motor Resistance

78mΩ

Recommend Prop(inch)

EOLO CN15*5.5｜EOLO CN17*6.2

EOLO C18*6.5｜EOLO C20*6.2


Prop (inch)

Voltage(V)

RPM

Amps(A)

Thrust(gf)

Watts(W)

Efficiency(g/W)

Load temperature in 100% throttle

EOLO CN15*5.5

22.2

2978

2

500

44

11.26



3619

3.25

750

72

10.40

4199

4.9

1000

109

9.19

4667

6.7

1250

149

8.40

5028

8.6

1500

191

7.86

5426

10.6

1750

235

7.44

5963

14.5

2130

322

6.62

25

3000

1.8

500

45

11.11

3673

3

750

75

10.00

4144

4.35

1000

109

9.20

4615

6

1250

150

8.33

5037

7.7

1500

193

7.79

5415

9.7

1750

243

7.22

5778

11.8

2000

295

6.78

6095

14.1

2250

353

6.38

6596

17.8

2670

445

6.00

50℃

EOLO CN17*6.2

22.2

2345

1.7

500

38

13.25



2860

2.9

750

64

11.65

3211

4.3

1000

95

10.48

3605

5.8

1250

129

9.71

3872

7.5

1500

167

9.01

4248

9.4

1750

209

8.39

4510

11.5

2000

255

7.83

4807

13.7

2250

304

7.40

5027

16.1

2500

357

6.99

5280

18.7

2750

415

6.62

5583

21.8

3078

484

6.36

25

2344

1.6

500

40

12.50

2837

2.6

750

65

11.54

3218

3.8

1000

95

10.53

3627

5.15

1250

129

9.71

3935

6.7

1500

168

8.96

4225

8.5

1750

213

8.24

4567

10.25

2000

256

7.80

4763

12.25

2250

306

7.35

5040

14.4

2500

360

6.94

5288

16.6

2750

415

6.63

5520

19

3000

475

6.32

6127

25.8

3683

645

5.71

65℃

EOLO C18*6.5

22.2

2186

1.6

500

36

14.08



2663

2.7

750

60

12.51

3022

4.1

1000

91

10.99

3459

5.6

1250

124

10.05

3740

7.3

1500

162

9.26

4043

9.1

1750

202

8.66

4294

11.05

2000

245

8.15

4513

13.4

2250

297

7.56

4783

15.7

2500

349

7.17

5019

18.3

2750

406

6.77

5479

23.6

3300

524

6.30

25

2200

1.5

500

38

13.33

2669

2.5

750

63

12.00

3046

3.7

1000

93

10.81

3450

5.1

1250

128

9.80

3745

6.6

1500

165

9.09

4070

8.2

1750

205

8.54

4300

10

2000

250

8.00

4546

11.8

2250

295

7.63

4775

13.85

2500

346

7.22

5029

16.1

2750

403

6.83

5241

18.4

3000

460

6.52

5638

23.5

3500

588

5.96

5958

28.1

3970

703

5.65

97℃

EOLO C20*6.2

22.2

1808

1.5

500

33

15.02



2246

2.6

750

58

12.99

2605

3.8

1000

84

11.85

2887

5.2

1250

115

10.83

3128

6.9

1500

153

9.79

3422

8.6

1750

191

9.17

3635

10.4

2000

231

8.66

3853

12.55

2250

279

8.08

4066

14.8

2500

329

7.61

4277

17.5

2750

389

7.08

4407

19.6

3000

435

6.89

4742

25.4

3500

564

6.21

5113

30.6

3970

679

5.84

25

1855

1.4

500

35

14.29

2273

2.3

750

58

13.04

2586

3.4

1000

85

11.76

2841

4.7

1250

118

10.64

3189

6.2

1500

155

9.68

3410

7.6

1750

190

9.21

3605

9.5

2000

238

8.42

3873

11.2

2250

280

8.04

4064

13.2

2500

330

7.58

4289

15.4

2750

385

7.14

4472

17.8

3000

445

6.74

4828

22.6

3500

565

6.19

5109

28.4

4000

710

5.63

5540

36.2

4710

905

5.20

119℃ 2min
