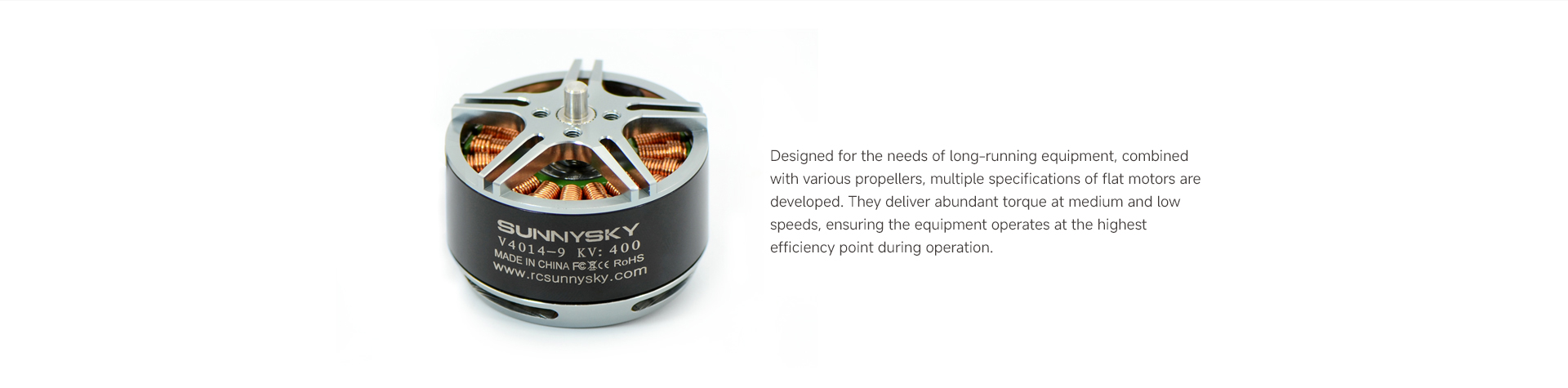

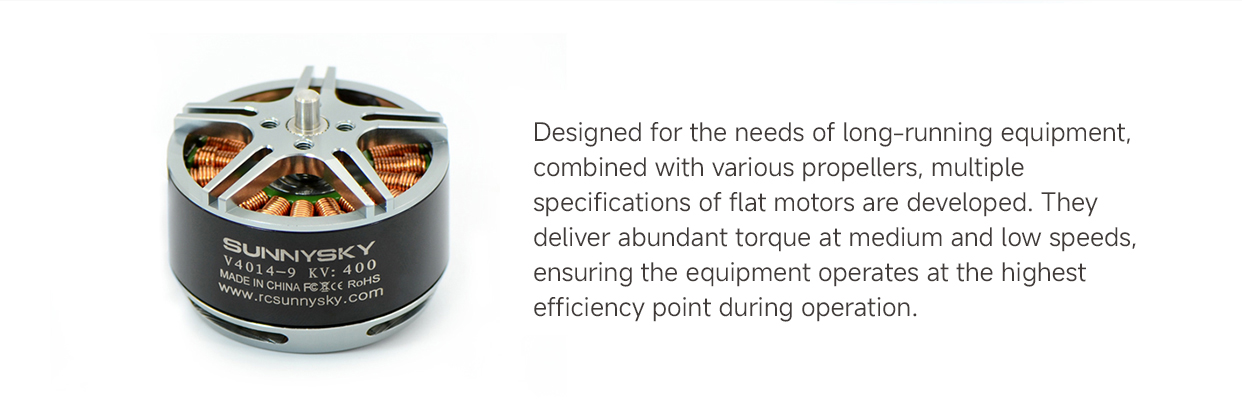

V4014
Details Technical parameters Test report Package including Photos
@@title

V4014英文_02.jpgV4014英文_03.jpgV4014英文_04.jpgV4014英文_05.jpgV4014英文_06.jpgV4014英文_07.jpgV4014英文_08.jpg

V4014MCa_01.jpgV4014MCa_02.jpgV4014MCa_03.jpgV4014MCa_04.jpgV4014MCa_05.jpgV4014MCa_06.jpgV4014MCa_07.jpgV4014MCa_08.jpg

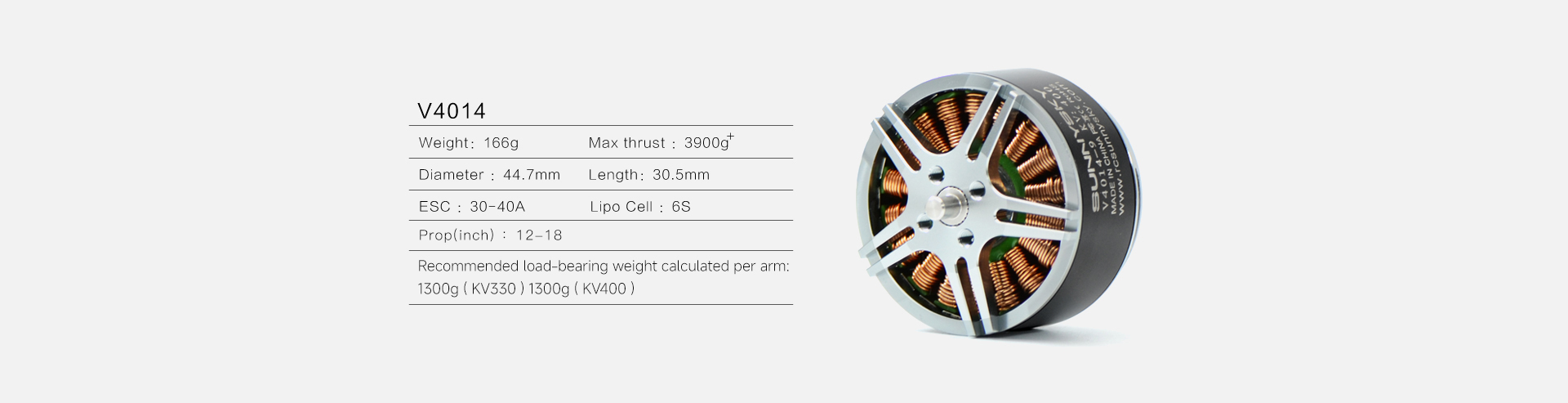

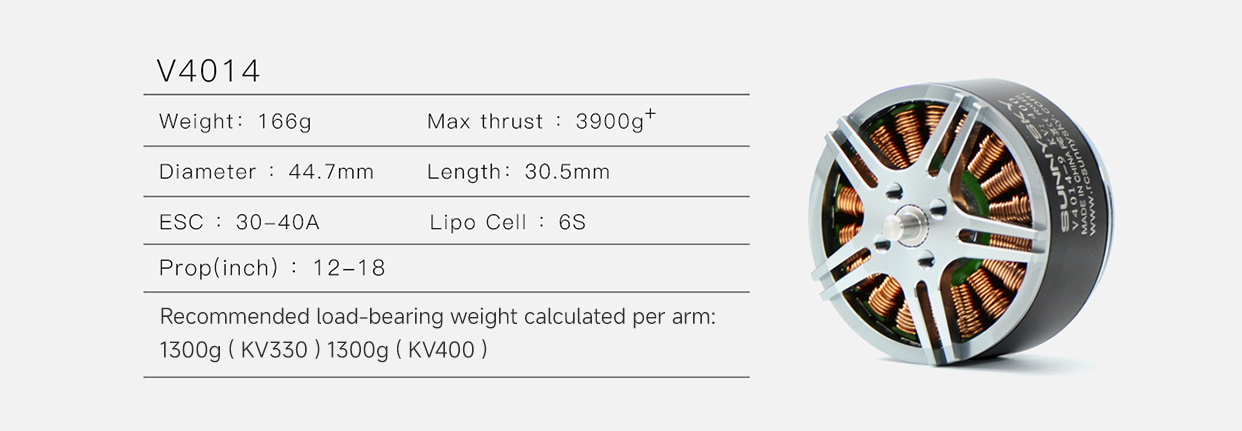

Motor Model / KV V4014/ KV330 V4014/ KV400
Stator/Rotor Poles 18N24P 18N24P
Internal resistance 104mΩ 83mΩ
Motor size φ44.7*30.5mm
 φ44.7*38.2mm
Shaft diameter 4.0mm 4.0mm
AWG 16AWG 600MM 16AWG 600MM
Motor weight(wire included) 166g 166g
Motor weight(wire excluded) No data No data
Rated operational voltage 4-6S 4-6S
No-load current 0.7A/10V 1.0A/10V
Maximum continuous power 750W 875W
Maximum continuous current 30A/30s 35A/30s
ESC recommended use EOLO 50A 30-40A
Propeller size recommended use EOLO CN15*5.5/CN17*6.2/C18*6.5 EOLO CN13*5/CN15*5.5

V4014

KV330 KV400

Specifications

V4014

Max Continuous Current

30A/30s

Stator Diameter

39mm

Max Continuous Power

750W

Stator Thickness

14mm

Weight

166g

No.of Stator Slots

18

Rotor Diameter

44.7mm

No.of Rotor Poles

24

Body Length

30.5mm

Motor Kv

330

Max Lipo Cell

6S

NO-Load Current(A/10V)

0.7A

ESC

EOLO 50A

Motor Resistance

104mΩ

Recommend Prop(inch)

EOLO CN15*5.5｜EOLO CN17*6.2

EOLO C18*6.5


Prop (inch)

Voltage(V)

RPM

Amps(A)

Thrust(gf)

Watts(W)

Efficiency(g/W)

Load temperature in 100% throttle

EOLO CN15*5.5

22.2

3034

2

500

44

11.26



3572

3.3

750

73

10.24

4191

4.9

1000

109

9.19

4684

6.8

1250

151

8.28

5033

8.8

1500

195

7.68

5429

11.05

1750

245

7.13

5862

14.1

2073

313

6.62

25

3038

1.8

500

45

11.11

3586

3

750

75

10.00

4143

4.4

1000

110

9.09

4700

6

1250

150

8.33

5045

7.8

1500

195

7.69

5393

9.9

1750

248

7.07

5753

11.9

2000

298

6.72

6421

17.1

2545

428

5.95

87℃

EOLO CN17*6.2

22.2

2339

1.7

500

38

13.25



2802

2.95

750

65

11.45

3227

4.4

1000

98

10.24

3548

6

1250

133

9.38

3957

7.7

1500

171

8.78

4255

9.7

1750

215

8.13

4560

11.8

2000

262

7.63

4803

14.3

2250

317

7.09

5091

16.75

2500

372

6.72

5400

20.1

2830

446

6.34

25

2332

1.5

500

38

13.33

2873

2.7

750

68

11.11

3262

3.85

1000

96

10.39

3619

5.3

1250

133

9.43

3918

6.9

1500

173

8.70

4284

8.7

1750

218

8.05

4596

10.6

2000

265

7.55

4816

12.6

2250

315

7.14

5079

14.9

2500

373

6.71

5307

17.4

2750

435

6.32

5888

23.8

3396

595

5.71

103℃

EOLO C18*6.5

22.2

2126

1.6

500

36

14.08



2646

2.8

750

62

12.07

3046

4.1

1000

91

10.99

3410

5.7

1250

127

9.88

3732

7.4

1500

164

9.13

4007

9.4

1750

209

8.39

4346

11.4

2000

253

7.90

4540

13.6

2250

302

7.45

4780

16.2

2500

360

6.95

4978

18.9

2750

420

6.55

5244

21.9

3050

486

6.27

25

2150

1.4

500

35

14.29

2614

2.5

750

63

12.00

3026

3.7

1000

93

10.81

3393

5.1

1250

128

9.80

3702

6.6

1500

165

9.09

4018

8.2

1750

205

8.54

4263

10.1

2000

253

7.92

4511

12.3

2250

308

7.32

4764

14.4

2500

360

6.94

5020

16.8

2750

420

6.55

5221

19.3

3000

483

6.22

5692

25.8

3642

645

5.65

122℃ 2min9s








Specifications

V4014

Max Continuous Current

35A/30s

Stator Diameter

40mm

Max Continuous Power

875W

Stator Thickness

14mm

Weight

166g

No.of Stator Slots

18

Rotor Diameter

44.7mm

No.of Rotor Poles

24

Body Length

30.5mm

MotorKv

400

MaxLipo Cell

6S

NO-Load Current(A/10V)

1A

ESC

EOLO 50A

Motor Resistance

83mΩ

Recommend Prop(inch)

EOLO CN13*5｜EOLO CN15*5.5


Prop (inch)

Voltage(V)

RPM

Amps(A)

Thrust(gf)

Watts(W)

Efficiency(g/W)

Load temperature in 100% throttle

EOLO CN13*5

22.2

3860

2.4

500

53

9.38



4673

4

750

89

8.45

5308

5.8

1000

129

7.77

5920

7.8

1250

173

7.22

6443

10.2

1500

226

6.62

6910

12.6

1750

280

6.26

7383

15.2

1987

337

5.89

25

3846

2.1

500

53

9.52

4632

3.6

750

90

8.33

5309

5.2

1000

130

7.69

5900

7.1

1250

178

7.04

6461

9.1

1500

228

6.59

6946

11.3

1750

283

6.19

7332

13.8

2000

345

5.80

7769

16.6

2250

415

5.42

8118

18.4

2445

460

5.32

63℃

EOLO CN15*5.5

22.2

3074

2

500

44

11.26



3660

3.4

750

75

9.94

4189

5.1

1000

113

8.83

4647

7

1250

155

8.04

5109

9.1

1500

202

7.43

5451

11.2

1750

249

7.04

5801

13.7

2000

304

6.58

6111

16.3

2250

362

6.22

6400

19.65

2500

436

5.73

6773

22.8

2780

506

5.49

25

3012

1.8

500

45

11.11

3684

3.2

750

80

9.38

4212

4.55

1000

114

8.79

4695

6.3

1250

158

7.94

5030

8.1

1500

203

7.41

5405

10.2

1750

255

6.86

5803

12.3

2000

308

6.50

6138

14.9

2250

373

6.04

6448

17.2

2500

430

5.81

6940

22.9

3000

573

5.24

7346

27.6

3373

690

4.89

104℃
