Motor Model / KV V4008/ KV380 V4008/ KV600
Stator/Rotor Poles 18N24P 18N24P
Internal resistance 131mΩ 75mΩ
Motor size φ44.3*21mm
φ44.3*21mm
Shaft diameter 4.0mm 4.0mm
AWG 20AWG 600mm 20AWG 600mm
Motor weight(wire included) 105g 104g
Motor weight(wire excluded) No data No data
Rated operational voltage 4-6S 4S
No-load current 0.5A/10V 0.8A/10V
Maximum continuous power 500W 480W
Maximum continuous current 20A/30s 30A/30s
ESC recommended use EOLO 50A EOLO 50A
Propeller size recommended use EOLO CN12*5/CN13*5/CN15*5.5/CN17*6.2 EOLO CN13*5/CN15*5.5

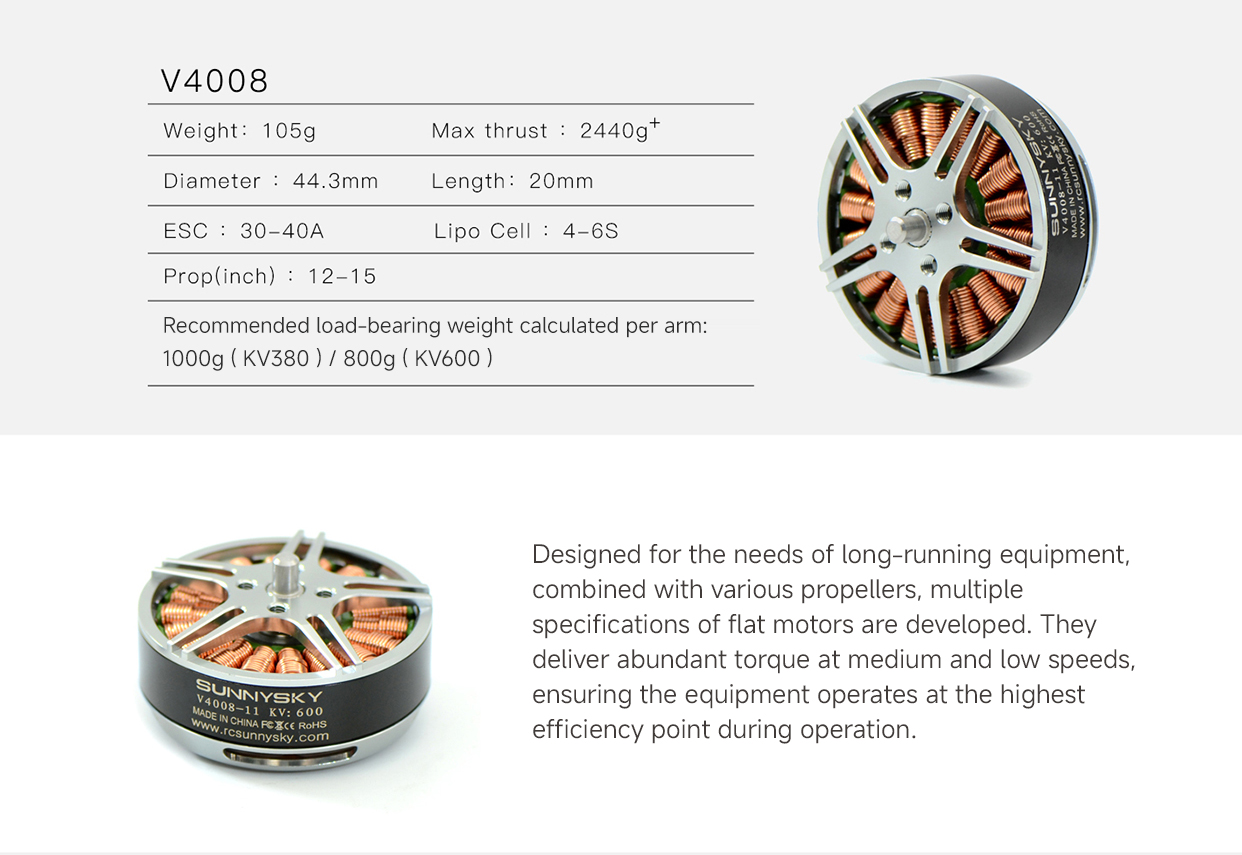

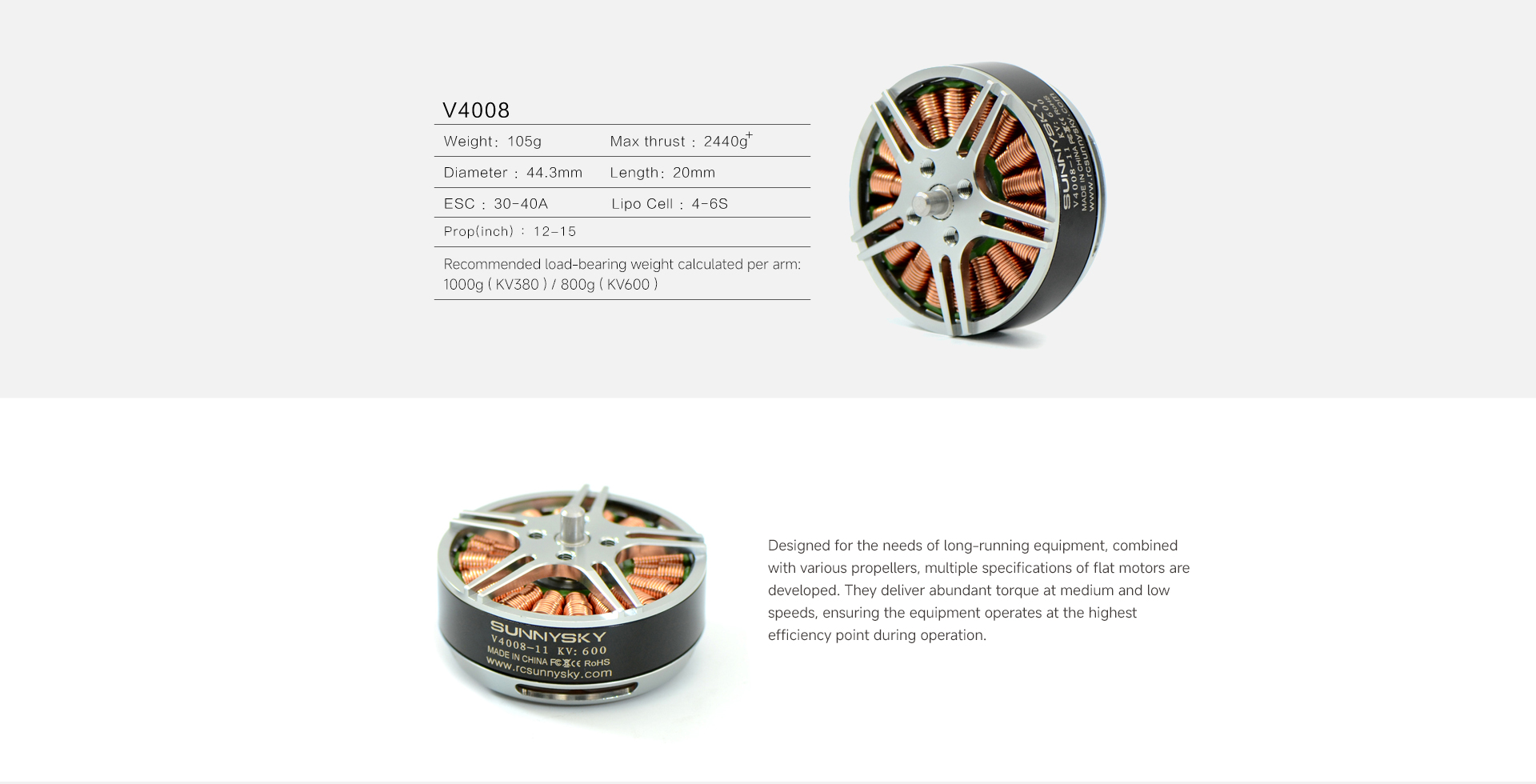

V4008

Specifications

V4008

Max Continuous Current

20A/30s

Stator Diameter

39mm

Max Continuous Power

500W

Stator Thickness

8mm

Weight

105g

No.of Stator Slots

18

Rotor Diameter

44.3mm

No.of Rotor Poles

24

Body Length

21mm

MotorKv

380

MaxLipo Cell

6S

NO-Load Current(A/10V)

0.5A

ESC

EOLO 50A

Motor Resistance

131mΩ

Recommend Prop(inch)

EEOLO CN12*5EOLO CN13*5

EOLO CN15*5.5EOLO CN17*6.2


Prop (inch)

Voltage(V)

RPM

Amps(A)

Thrust(gf)

Watts(W)

Efficiency(g/W)

Load temperature in 100% throttle

EOLO CN12*5

22.2

2983

0.7

200

16

12.87



3514

1.2

300

27

11.26

4020

1.7

400

38

10.60

4440

2.3

500

51

9.79

4785

2.9

600

64

9.32

5204

3.6

700

80

8.76

5568

4.3

800

95

8.38

5830

5

900

111

8.11

6167

5.8

1000

129

7.77

6964

8.4

1293

186

6.93

25

2993

0.6

200

15

13.33

3501

1.1

300

28

10.91

4008

1.5

400

38

10.67

4440

2

500

50

10.00

4780

2.6

600

65

9.23

5212

3.2

700

80

8.75

5624

3.8

800

95

8.42

5855

4.5

900

113

8.00

6172

5.2

1000

130

7.69

6738

6.8

1200

170

7.06

7662

10.2

1580

255

6.20

68℃

EOLO CN13*5

22.2

2483

0.6

200

13

15.02



2978

1

300

22

13.51

3367

1.5

400

33

12.01

3762

2

500

44

11.26

4124

2.6

600

58

10.40

4440

3.3

700

73

9.56

4716

4

800

89

9.01

4915

4.7

900

104

8.63

5232

5.4

1000

120

8.34

5757

7.05

1200

157

7.67

6109

8.9

1400

198

7.09

6704

11.2

1610

249

6.48

25

2465

0.5

200

13

16.00

2873

0.9

300

23

13.33

3379

1.3

400

33

12.31

3758

1.9

500

48

10.53

4125

2.4

600

60

10.00

4525

2.9

700

73

9.66

4782

3.5

800

88

9.14

5026

4.2

900

105

8.57

5282

4.9

1000

123

8.16

5760

6.4

1200

160

7.50

6250

7.9

1400

198

7.09

6621

9.8

1600

245

6.53

7015

11.7

1800

293

6.15

7283

13.1

1945

328

5.94

83℃

EOLO CN15*5.5

22.2

1915

0.5

200

11

18.02



2358

0.8

300

18

16.89

2656

1.3

400

29

13.86

3040

1.8

500

40

12.51

3267

2.3

600

51

11.75

3482

2.9

700

64

10.87

3716

3.5

800

78

10.30

3920

4.2

900

93

9.65

4131

4.9

1000

109

9.19

4504

6.35

1200

141

8.51

4816

8.15

1400

181

7.74

5185

9.9

1600

220

7.28

5450

12

1800

266

6.76

6013

16.4

2210

364

6.07

25

1932

0.4

200

10

20.00

2333

0.8

300

20

15.00

2679

1.2

400

30

13.33

2992

1.55

500

39

12.90

3281

2.1

600

53

11.43

3460

2.6

700

65

10.77

3726

3.1

800

78

10.32

3926

3.7

900

93

9.73

4166

4.4

1000

110

9.09

4513

5.7

1200

143

8.42

4868

7.2

1400

180

7.78

5186

8.9

1600

223

7.19

5469

10.7

1800

268

6.73

5730

12.6

2000

315

6.35

6035

14.8

2200

370

5.95

6443

19.4

2651

485

5.47

100℃2min20s

EOLO CN17*6.2

14.8

1545

0.7

200

10

19.31



1873

1.2

300

18

16.89

2142

1.7

400

25

15.90

2403

2.4

500

36

14.08

2579

3.1

600

46

13.08

2770

3.8

700

56

12.45

2956

4.6

800

68

11.75

3090

5.5

900

81

11.06

3294

6.5

1000

96

10.40

3548

8.5

1200

126

9.54

3859

10.8

1400

160

8.76

4078

13

1570

192

8.16

16

1541

0.6

200

10

20.83

1830

1.1

300

18

17.05

2086

1.6

400

26

15.63

2335

2.2

500

35

14.20

2505

2.9

600

46

12.93

2723

3.55

700

57

12.32

2883

4.3

800

69

11.63

2965

5.1

900

82

11.03

3177

6

1000

96

10.42

3548

7.9

1200

126

9.49

3771

10.05

1400

161

8.71

4058

12.5

1600

200

8.00

4236

14.4

1770

230

7.68

75℃








Specifications

V4008

Max Continuous Current

30A/30s

Stator Diameter

39mm

Max Continuous Power

480W

Stator Thickness

8mm

Weight

104g

No.of Stator Slots

18

Rotor Diameter

44.3mm

No.of Rotor Poles

24

Body Length

21mm

Motor Kv

600

Max Lipo Cell

4S

NO-Load Current(A/10V)

0.8A

ESC

EOLO 50A

Motor Resistance

75mΩ

Recommend Prop(inch)

EOLO CN13*5EOLO CN15*5.5


Prop (inch)

Voltage(V)

RPM

Amps(A)

Thrust(gf)

Watts(W)

Efficiency(g/W)

Load temperature in 100% throttle

EOLO CN13*5

14.8

2511

1

200

15

13.51



2960

1.6

300

24

12.67

3429

2.4

400

36

11.26

3808

3.3

500

49

10.24

4188

4.2

600

62

9.65

4440

5.3

700

78

8.92

4757

6.3

800

93

8.58

5046

7.35

900

109

8.27

5317

8.5

1000

126

7.95

5702

11.1

1200

164

7.30

6505

16.4

1550

243

6.39

16

2470

0.9

200

14

13.89

2951

1.6

300

26

11.72

3381

2.3

400

37

10.87

3716

3

500

48

10.42

4157

3.9

600

62

9.62

4489

4.8

700

77

9.11

4725

5.8

800

93

8.62

5041

6.8

900

109

8.27

5272

7.8

1000

125

8.01

5817

10.2

1200

163

7.35

6173

13

1400

208

6.73

75℃

6916

18.3

1760

293

6.01



EOLO CN15*5.5

14.8

1931

0.8

200

12

16.89

2337

1.4

300

21

14.48

2725

2.1

400

31

12.87

3025

2.9

500

43

11.65

3258

3.7

600

55

10.96

3535

4.6

700

68

10.28

3741

5.6

800

83

9.65

3972

6.6

900

98

9.21

4133

7.6

1000

112

8.89

4583

10.15

1200

150

7.99

4846

12.9

1400

191

7.33

5208

16.1

1600

238

6.71

5456

19.5

1800

289

6.24

5757

23.4

2029

346

5.86

16

1950

0.8

200

13

15.63

2358

1.3

300

21

14.42

2706

2

400

32

12.50

3002

2.7

500

43

11.57

3306

3.4

600

54

11.03

3562

4.3

700

69

10.17

3776

5.3

800

85

9.43

3915

6.2

900

99

9.07

4260

7.15

1000

114

8.74

4519

9.4

1200

150

7.98

4865

12

1400

192

7.29

5178

14.8

1600

237

6.76

5466

18.6

1800

298

6.05

5728

21.3

2000

341

5.87

6048

26.2

2276

419

5.43

85℃
