Motor Model / KV 4014/ KV330
Stator/Rotor Poles 18N24P
Internal resistance 78mΩ
Motor size Motor length:30.5mm
Shaft diameter 3.175mm
AWG 20AWG 100mm
Motor weight(wire included) 257g
Motor weight(wire excluded) No data
Rated operational voltage 3-4S
No-load current 0.9A
Maximum continuous power 675w
Maximum continuous current 27A/30s
ESC recommended use 40A
Propeller size recommended use EOLO CN17*6.2

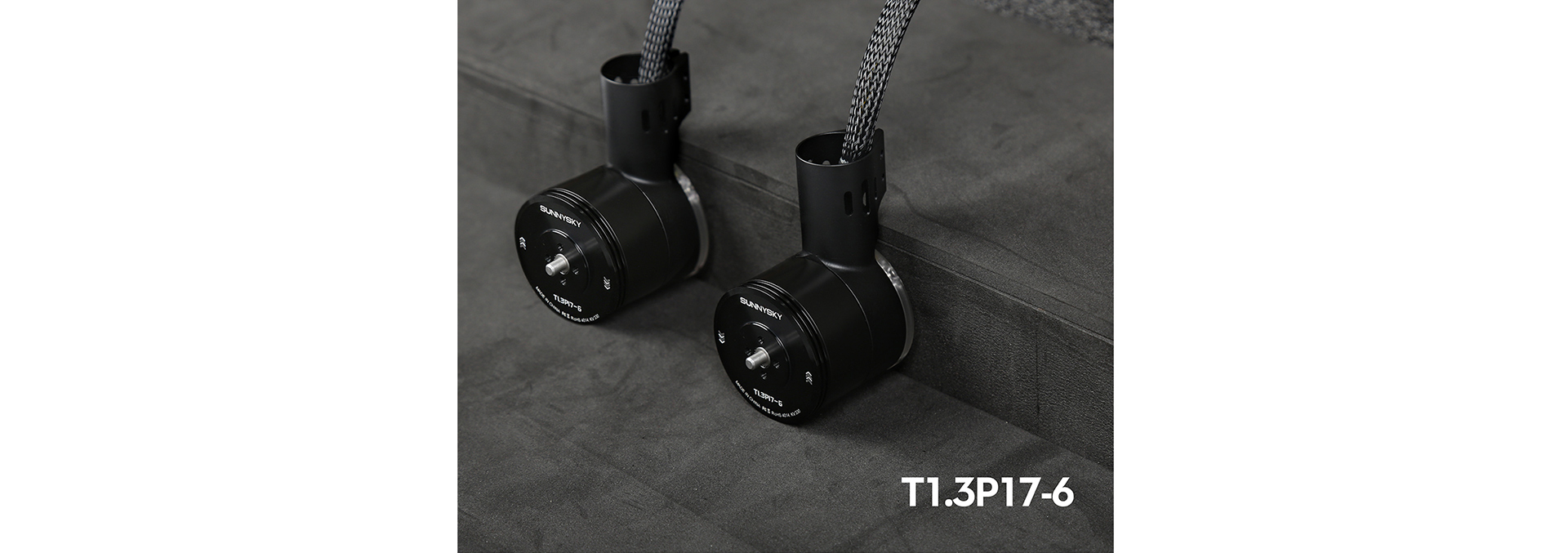

T1.3P17-6

Specifications

4014

Max Continuous Current

27A/30s

Stator Diameter

40mm

Max Continuous Power

675w

Stator Thickness

14mm

Weight

257g

No.of Stator Slots

18

Rotor Diameter

44.7mm

No.of Rotor Poles

24

Body Length

30.5mm

Motor Kv

330

Max Lipo Cell

6S

NO-Load Current(A/10V)

0.9A

ESC

40A

Motor Resistance

78mΩ

Recommend Prop(inch)

EOLO CN17*6.2





Propeller (inch)

Voltage (V)

Current (A)

Thrust (g)

Watts (W)

Efficiency (g/W)

RPM

Load temperature in 100% throttle

EOLO CN17*6.2

22.2

1.8

500

39.96

12.51

2236



3.1

750

68.82

10.90

2784

4.6

1000

102.12

9.79

3201

6.3

1250

139.86

8.94

3530

8.3

1500

184.26

8.14

3887

10.4

1750

230.88

7.58

4187

12.6

2000

279.72

7.15

4452

15.3

2250

339.66

6.62

4745

18

2500

399.6

6.26

4956

22.4

2900

497.28

5.83

5314

25

1.7

500

42.5

11.76

2280

2.8

750

70

10.71

2763

4.1

1000

102.5

9.76

3215

5.6

1250

140

8.93

3557

7.4

1500

185

8.11

3886

9.3

1750

232.5

7.53

4162

11.3

2000

282.5

7.08

4442

13.6

2250

340

6.62

4716

16.2

2500

405

6.17

4952

21.7

3000

542.5

5.53

5461

26.6

3500

665

5.26

5812

102℃
