Motor Model / KV 4014/ KV400
Stator/Rotor Poles 18N24P
Internal resistance 54mΩ
Motor size Motor length:30.5mm
Shaft diameter 3.175mm
AWG 20AWG 100mm
Motor weight(wire included) 231g
Motor weight(wire excluded) No data
Rated operational voltage 3-4S
No-load current 1.1A
Maximum continuous power 800w
Maximum continuous current 32A/30s
ESC recommended use 40A
Propeller size recommended use EOLO CN15*5.5

T1.3P15-6

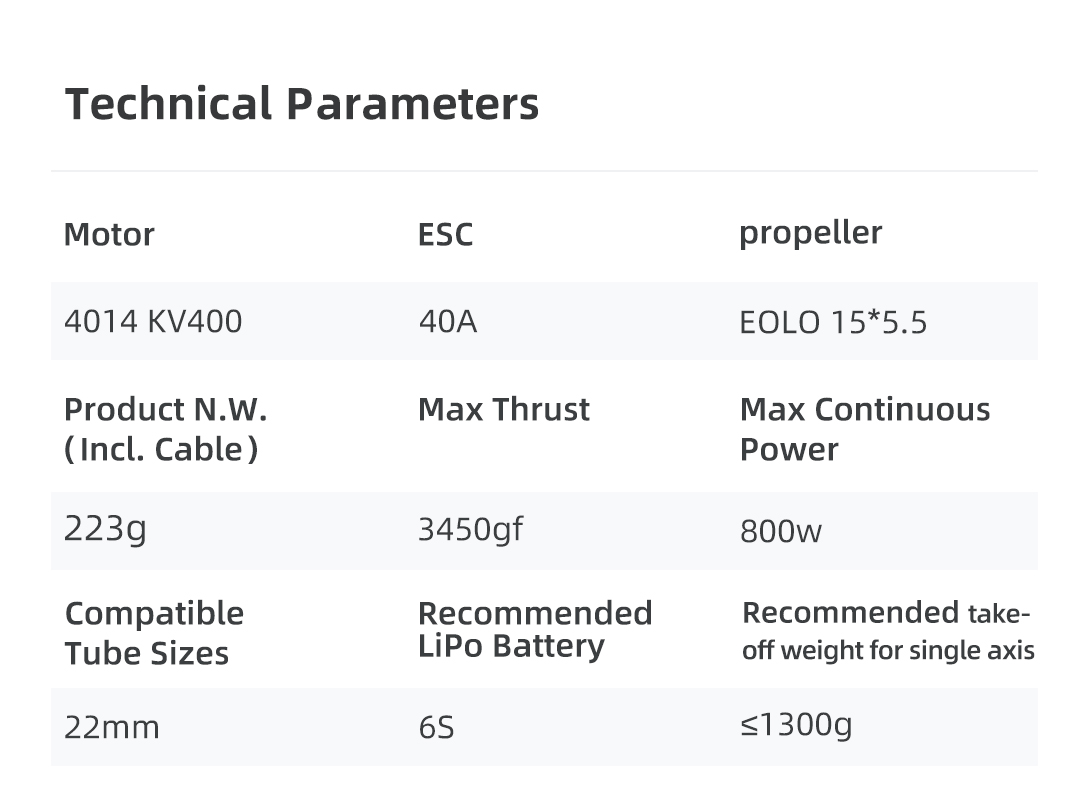

Specifications

4014

Max Continuous Current

32A/30s

Stator Diameter

40mm

Max Continuous Power

800w

Stator Thickness

14mm

Weight

231g

No.of Stator Slots

18

Rotor Diameter

44.7mm

No.of Rotor Poles

24

Body Length

30.5mm

Motor Kv

400

Max Lipo Cell

6S

NO-Load Current(A/10V)

1.1A

ESC

40A

Motor Resistance

54mΩ

Recommend Prop(inch)

EOLO CN15*5.5





Propeller (inch)

Voltage (V)

Current (A)

Thrust (g)

Watts (W)

Efficiency (g/W)

RPM

Load temperature in 100% throttle

EOLO CN15*5.5

22.2

2.2

500

48.84

10.24

3107



3.7

750

82.14

9.13

3815

5.3

1000

117.66

8.50

4347

7.3

1250

162.06

7.71

4870

9.5

1500

210.9

7.11

5289

11.7

1750

259.74

6.74

5683

14.4

2000

319.68

6.26

6034

17.4

2250

386.28

5.82

6376

20.7

2500

459.54

5.44

6742

24.6

2820

546.12

5.16

7041

25

2

500

50

10.00

3110

3.3

750

82.5

9.09

3808

4.8

1000

120

8.33

4344

6.6

1250

165

7.58

4853

8.5

1500

212.5

7.06

5278

10.6

1750

265

6.60

5667

12.9

2000

322.5

6.20

6047

15.5

2250

387.5

5.81

6371

18.3

2500

457.5

5.46

6719

24.2

3000

605

4.96

7270

31

3450

775

4.45

7753

96℃
