This product is designed solely for use by RC model enthusiasts and for recreational purposes. It is
not intended for professional, military, commercial, or industrial applications.
This product is designed solely for use by RC model enthusiasts and for recreational purposes. It isnot intended for professional, military, commercial, or industrial applications.

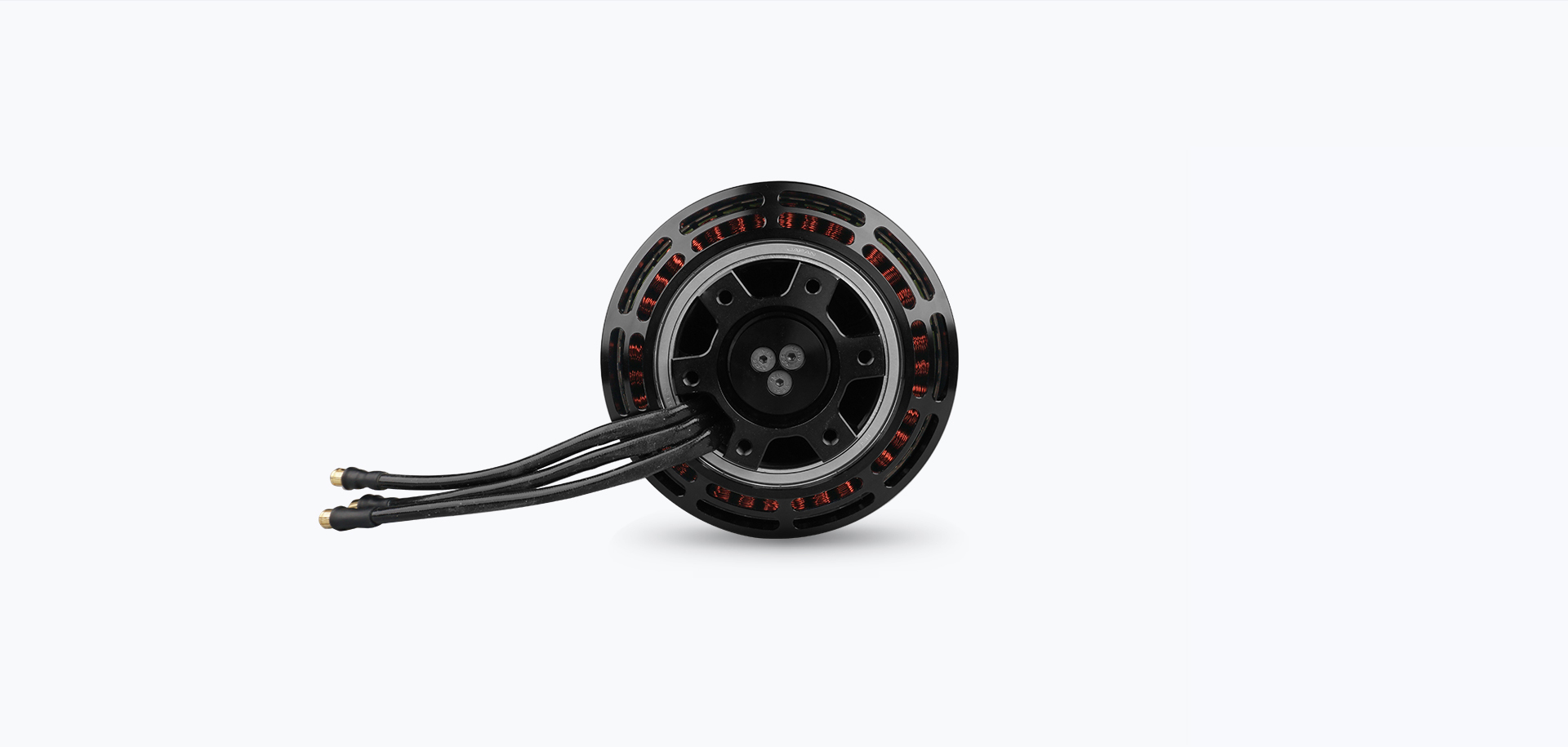

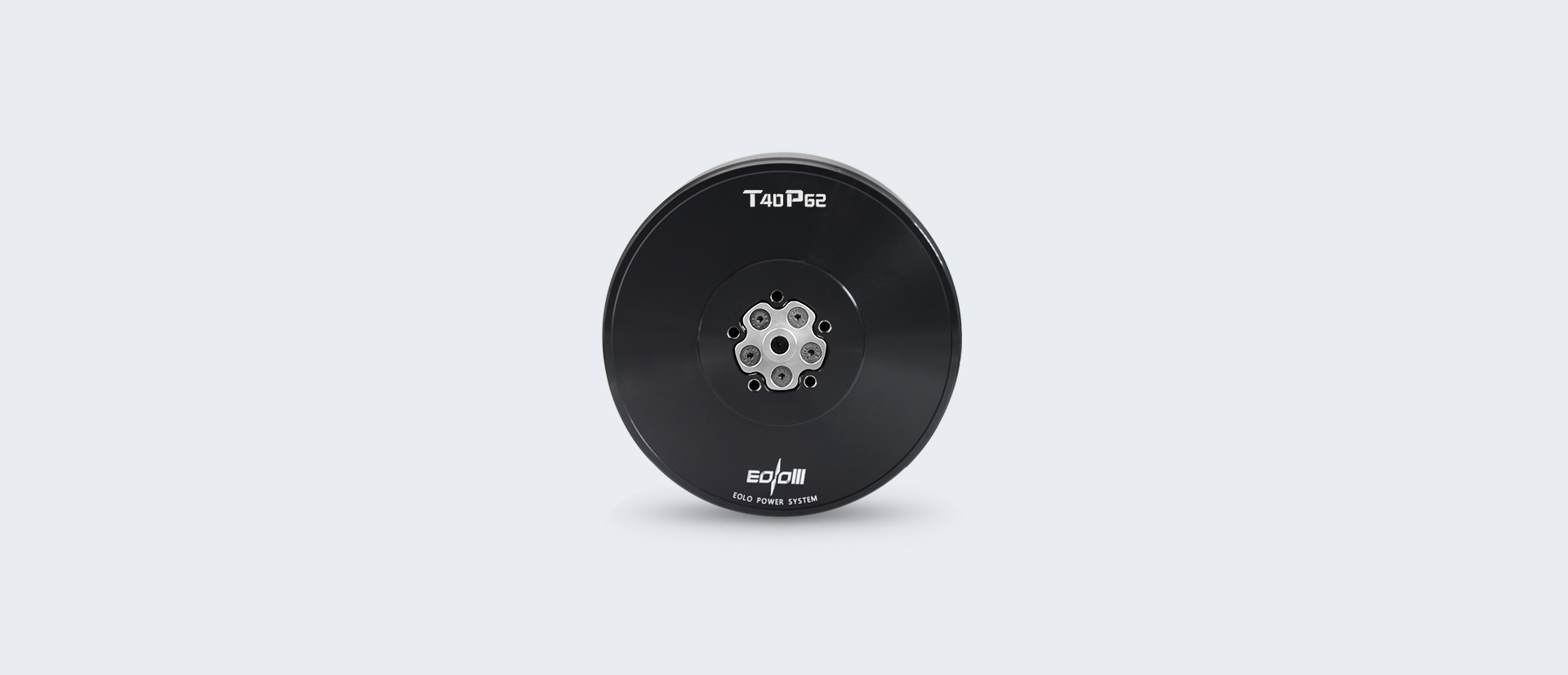

| Motor Model / KV | EOLO T40P62/ KV31 |
|---|---|
| Stator/Rotor Poles | 36 |
| Internal resistance | 21mΩ |
| Motor size | Body Length：123.7mm |
| Shaft diameter | 20mm |
| AWG | Enameled wire |
| Motor weight(wire included) | 4150g |
| Motor weight(wire excluded) | |
| Rated operational voltage | 100V |
| No-load current | 2.0A |
| Maximum continuous power | 17000W |
| Maximum continuous current | 180A/60s |
| ESC recommended use | 200A |
| Propeller size recommended use | EOLO 62*20 |
| Stator Diameter | 132mm | Rotor Diameter | 144mm |
|---|---|---|---|
| Stator Thickness | 50mm | Body Length | 123.7mm |
| No.of Stator Slots | 36 | Max Lipo Cell | 24S |
| No.of Rotor Poles | 42 | ESC | 200A |
| Motor Kv | 31 | Max Continuous Current | 180A/60s |
| No-load current | 2.0A | Max Continuous Power | 17000W |
| Motor Resistance | 21mΩ | Weight | 4150g |
| Recommended Prop(inch) | EOLO 62*20 |
|
Prop
(inch) |
Voltage (V) |
Amps (A) |
Input power (W) |
Speed （rpm） |
Torque （N.m） |
Output power (W) |
Thrust (Kgf) |
Efficiency （%） |
Shaft Mechanical Efficiency g/w |
Propeller Electrical Efficiency g/w |
|---|---|---|---|---|---|---|---|---|---|---|
|
EOLO 62*20 |
100.3 | 1.1 | 110.33 | 204.7 | 0.29 | 6.216020942 | 0.69 | 0.056340261 | 111.003487 | 6.253965377 |
| 100.3 | 2.5 | 250.75 | 410.2 | 1.45 | 62.28167539 | 3.08 | 0.248381557 | 49.45274803 | 12.28315055 | |
| 100.2 | 5.4 | 541.08 | 615.3 | 3.4 | 219.0596859 | 7.36 | 0.404856372 | 33.59814916 | 13.60242478 | |
| 100 | 11 | 1100 | 820.5 | 6.51 | 559.3146597 | 12.66 | 0.508467872 | 22.63484388 | 11.50909091 | |
| 99.8 | 20.5 | 2045.9 | 1024.9 | 11.75 | 1261.002618 | 20.39 | 0.61635594 | 16.16967301 | 9.966274011 | |
| 99.5 | 34.8 | 3462.6 | 1229.8 | 19.84 | 2554.893403 | 29.78 | 0.737854041 | 11.6560636 | 8.600473633 | |
| 99.1 | 55.2 | 5470.32 | 1435.2 | 28.36 | 4262.01801 | 40.2 | 0.779116763 | 9.432151601 | 7.348747422 | |
| 98.6 | 84.4 | 8321.84 | 1641.1 | 38.91 | 6686.408482 | 52.54 | 0.803477174 | 7.857731119 | 6.31350759 | |
| 97.8 | 128.7 | 12586.86 | 1845.2 | 51.83 | 10014.31581 | 68.22 | 0.795616684 | 6.812247715 | 5.419937935 | |
| 97 | 178.4 | 17304.8 | 1922.8 | 59.89 | 12058.27141 | 76.34 | 0.696816572 | 6.330924009 | 4.411492765 |
