This product is designed solely for use by RC model enthusiasts and for recreational purposes. It is
not intended for professional, military, commercial, or industrial applications.
This product is designed solely for use by RC model enthusiasts and for recreational purposes. It isnot intended for professional, military, commercial, or industrial applications.

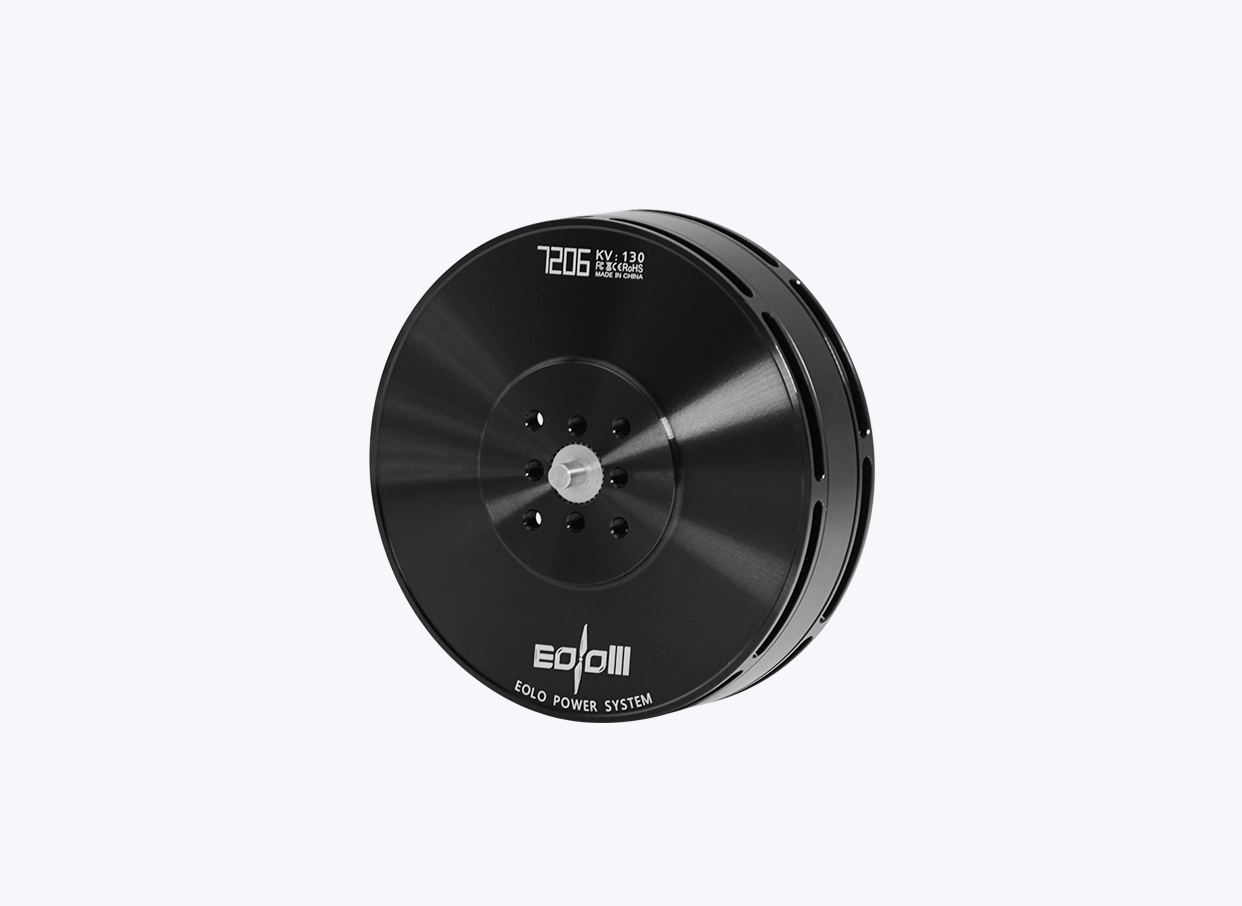

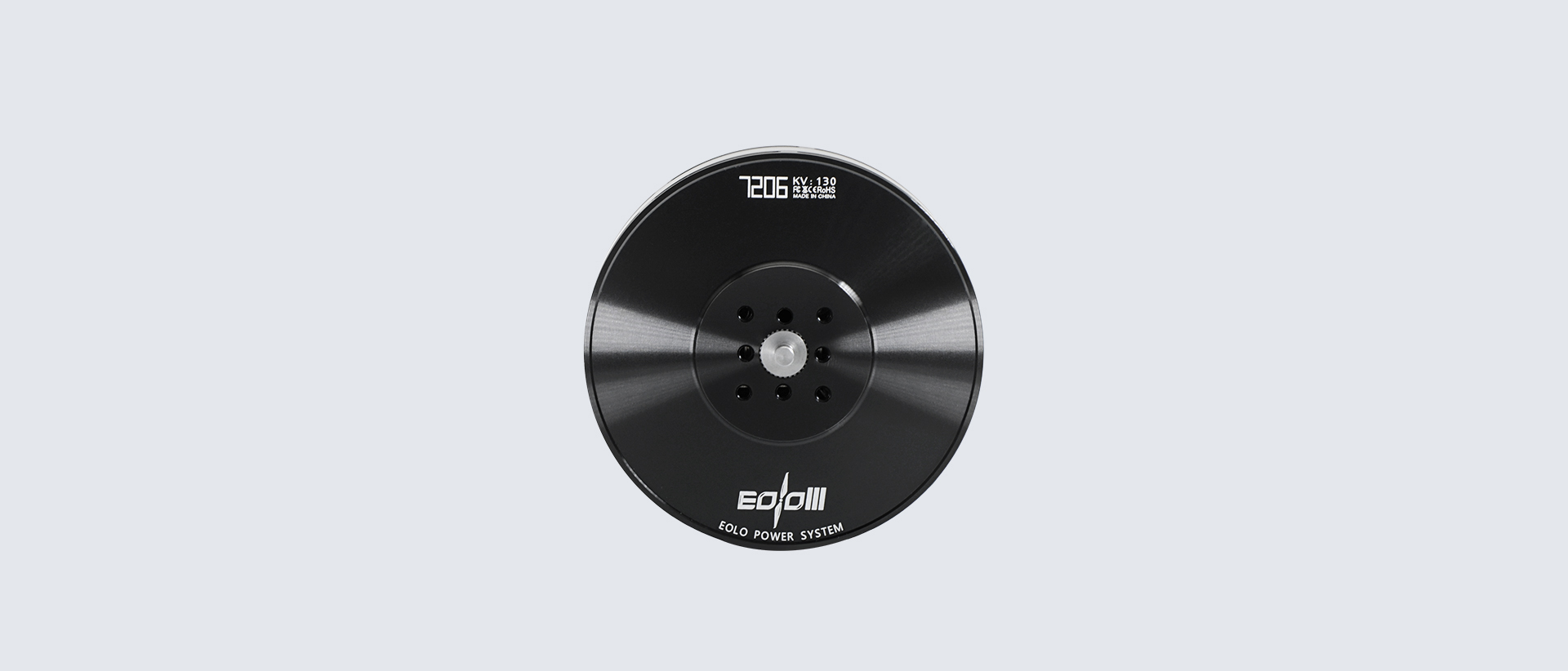

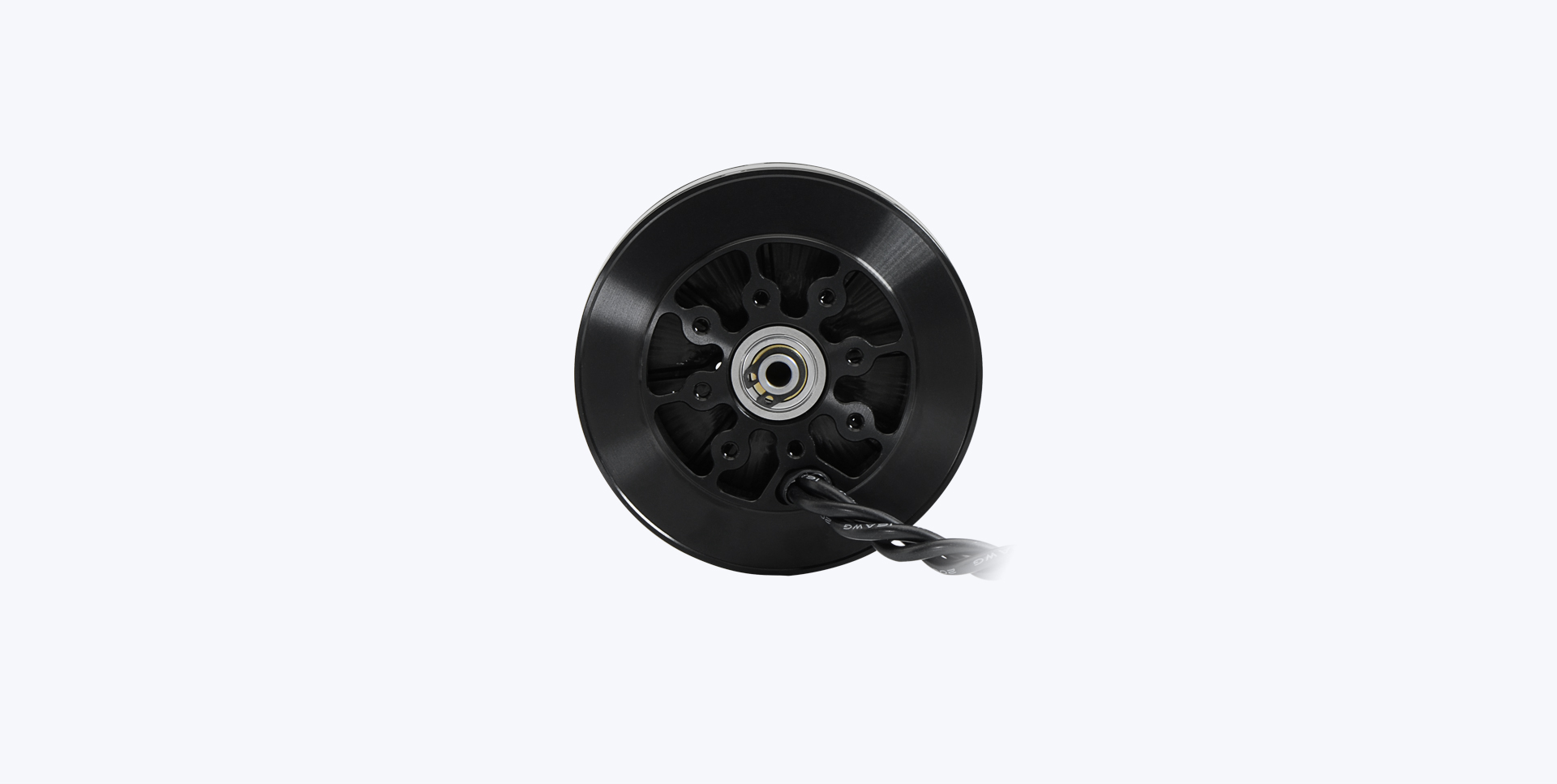

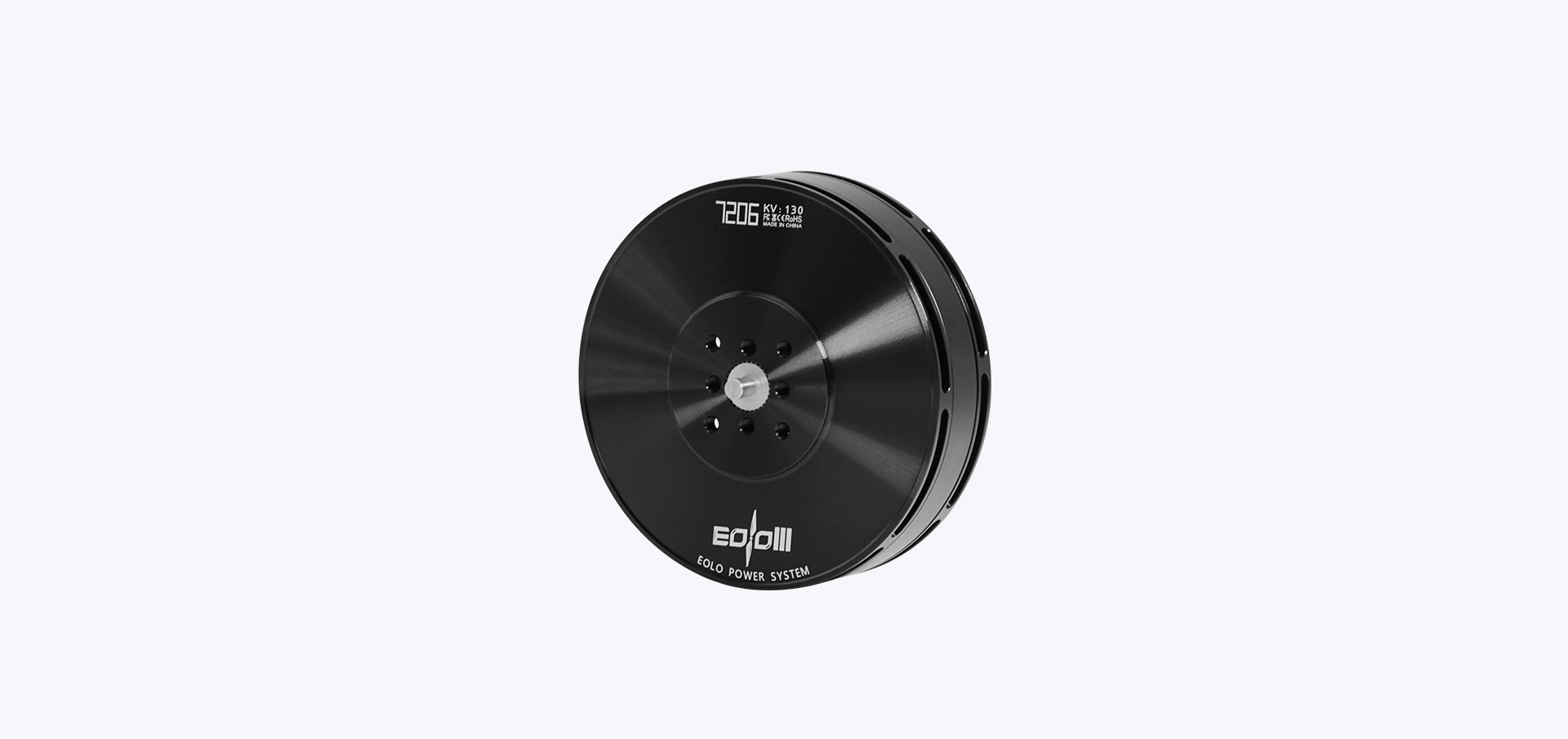

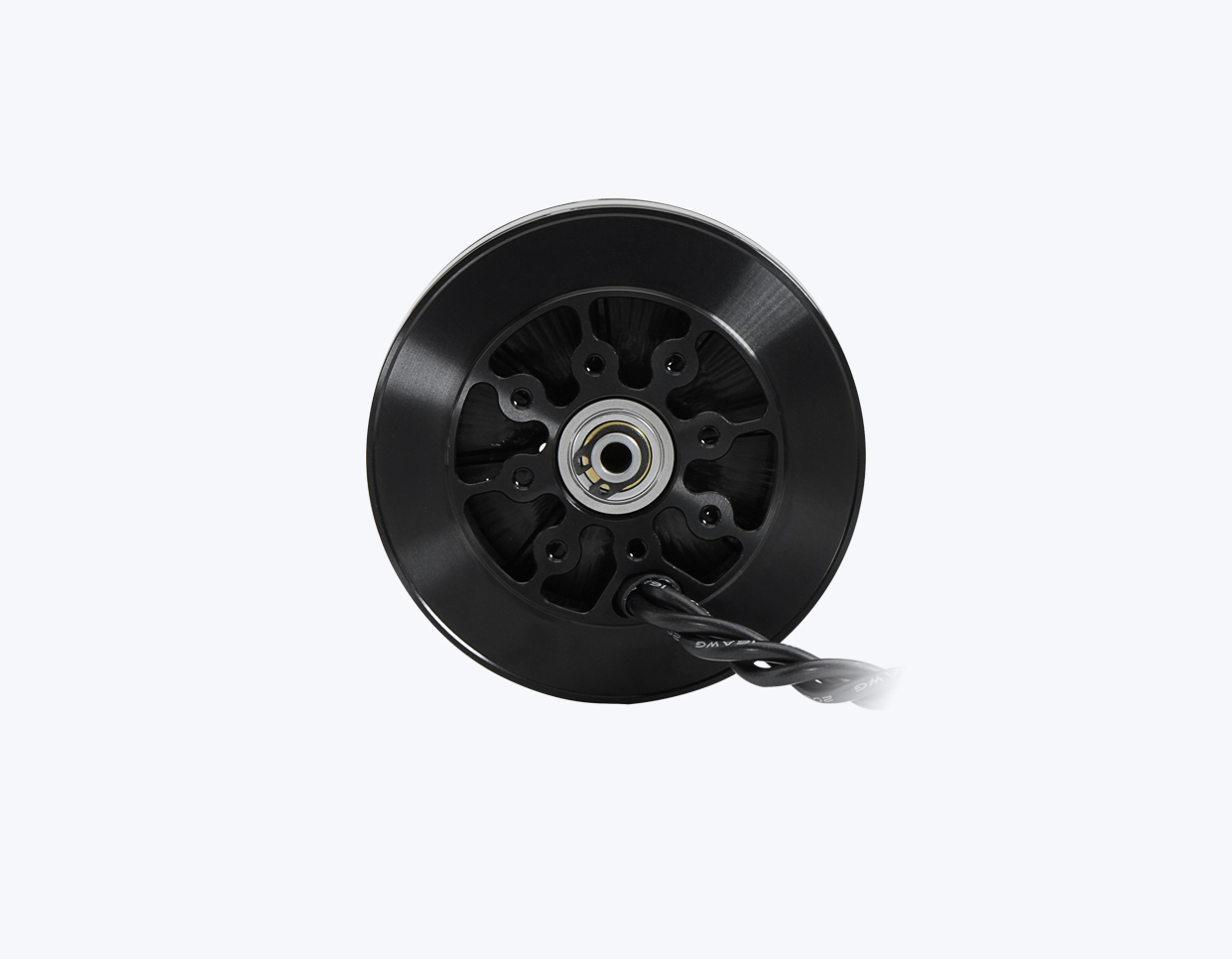

| Motor Model / KV | EOLO 7206/ KV100 | EOLO 7206/ KV130 | EOLO 7206/ KV260 |
|---|---|---|---|
| Stator/Rotor Poles | 36N42P | 36N42P | 36N42P |
| Internal resistance | 297mΩ | 297mΩ | 45mΩ |

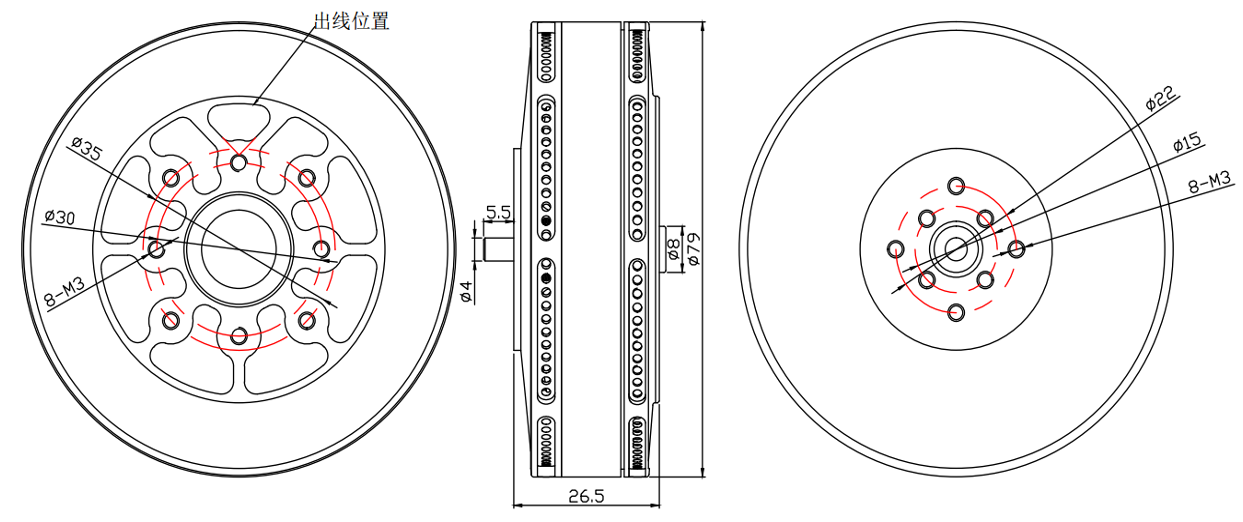

| Motor size | φ79.0*26.5mm |
φ79.0*26.5mm |
φ79.0*26.5mm |
| Shaft diameter | 4.0mm | 4.0mm | 4.0mm |
| AWG | 16AWG 100mm | 16AWG 100mm | 16AWG 100mm |
| Motor weight(wire included) | 209g | 200g | 200g |
| Motor weight(wire excluded) | —— | —— | —— |
| Rated operational voltage | 12S | 12S | 6S |
| No-load current | 0.3A/10V | 0.5A/10V | 1.1A/10V |
| Maximum continuous power | 900W | 1400W | 968W |
| Maximum continuous current | 18A/30s | 32A/30s | 40A/30s |
| ESC recommended use | EOLO 40A | EOLO 40A | EOLO 50A |
| Propeller size recommended use | EOLO C24*7.5 | EOLO C24*7.5 | EOLO C24*7.5 |
Specifications | EOLO7206 | Max Continuous Current | 18A/30s |
Stator Diameter | 72mm | Max Continuous Power | 900W |
Stator Thickness | 6mm | Weight | 209g |
No.of Stator Slots | 36 | Rotor Diameter | 79mm |
No.of Rotor Poles | 42 | Body Length | 26.5mm |
Motor Kv | 100 | Max Lipo Cell | 12S |
NO-Load Current(A/10V) | 0.3 | ESC | EOLO 40A |
Motor Resistance | 297mΩ | Recommend Prop(inch) | EOLO C24*7.5 |

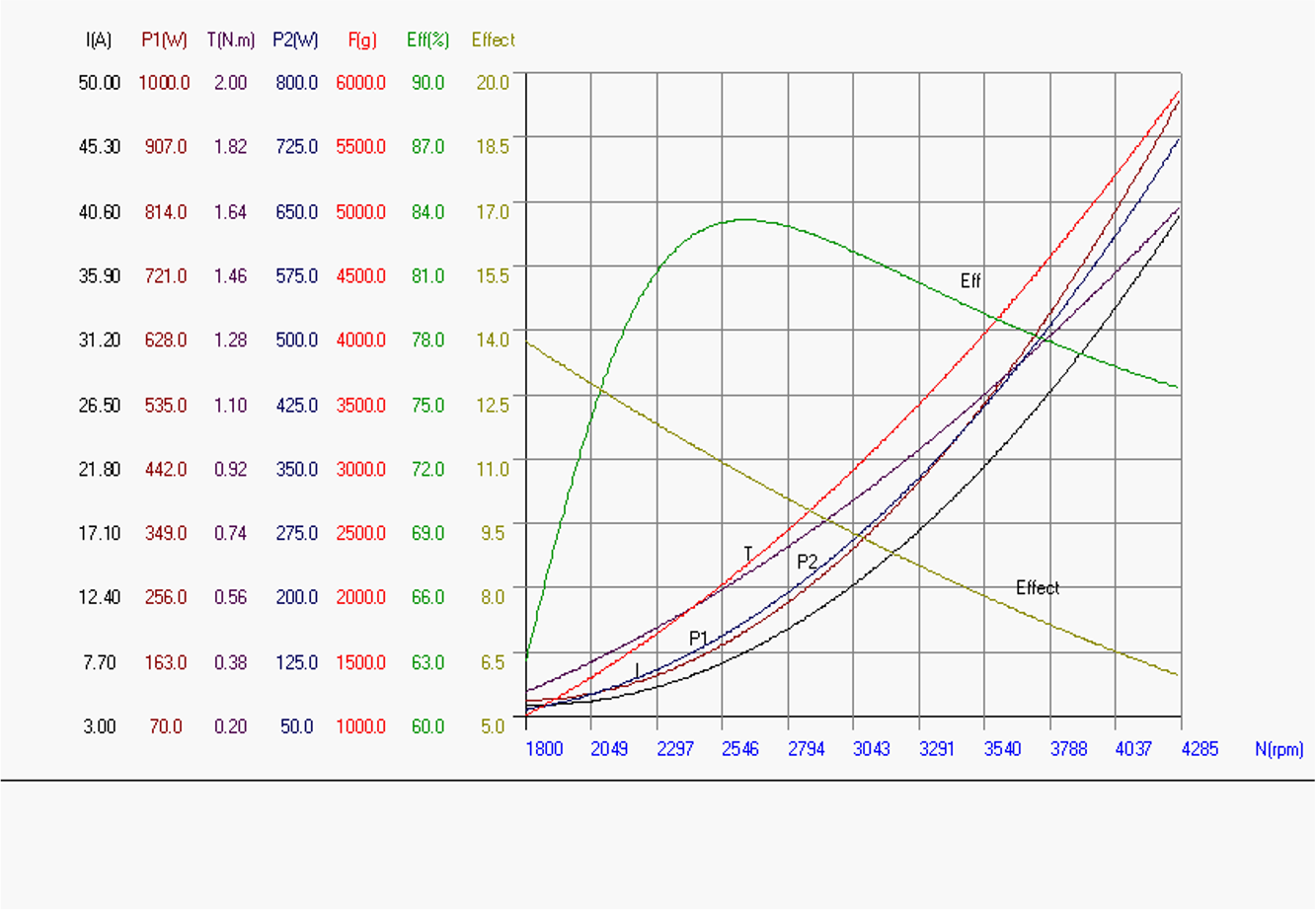

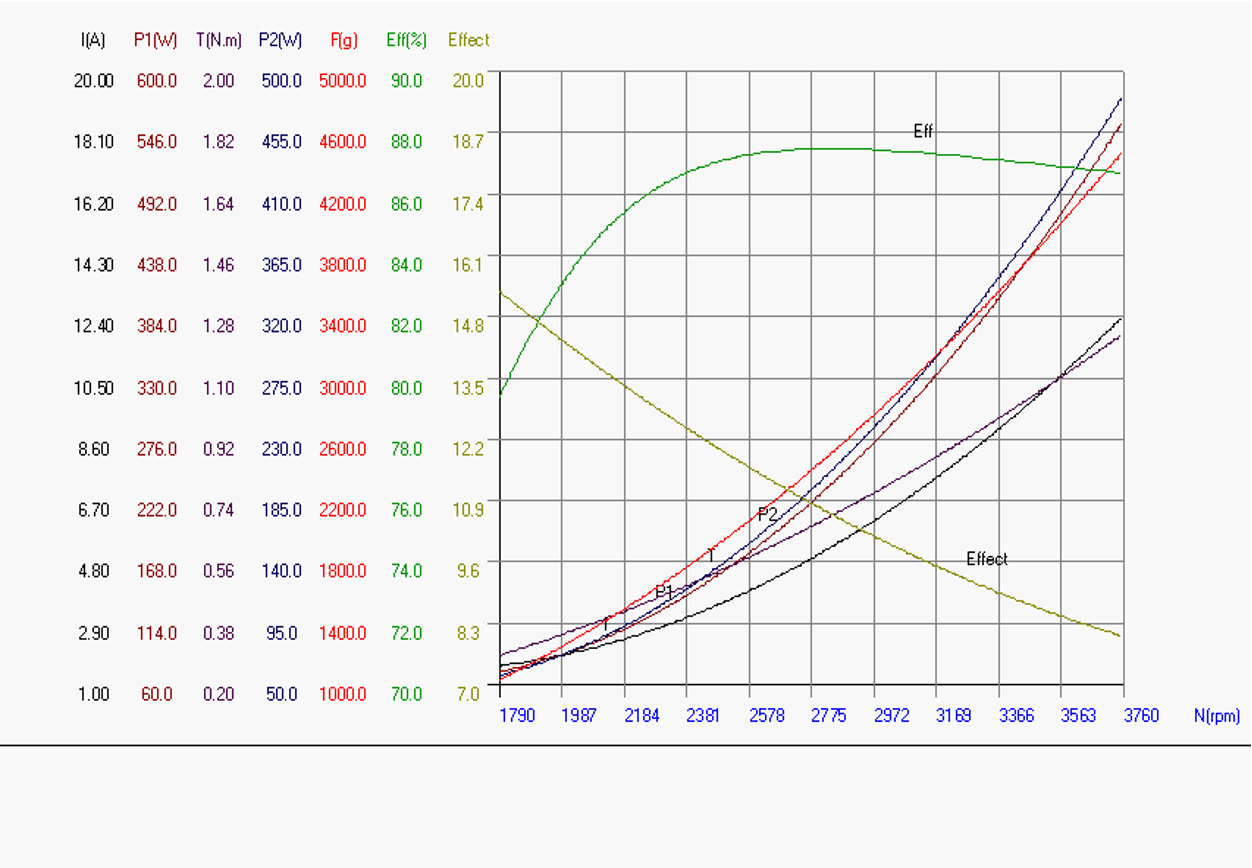

propeller ( inch ） | Voltage (V) | Current (A) | Input power (W) | Speed (rpm) | Torque (N.m ） | Output power (W) | Thrust (g) | Efficiency (% ） | Force effect |
EOLO C24*7.5 | 44.67 | 1.481 | 66.6 | 1795.91 | 0.28 | 52.65 | 1027.1 | 79.05 | 15.42 |
44.67 | 1.954 | 87.87 | 1981.5 | 0.35 | 72.62 | 1253.17 | 82.64 | 14.26 | |
44.65 | 2.616 | 117.58 | 2201.82 | 0.43 | 99.13 | 1567.8 | 84.3 | 13.33 | |
44.64 | 3.151 | 141.6 | 2375.6 | 0.5 | 124.4 | 1725.56 | 87.83 | 12.18 | |
44.64 | 3.791 | 170.36 | 2544.26 | 0.56 | 149.2 | 2019.58 | 87.57 | 11.85 | |
44.63 | 4.514 | 202.81 | 2698.41 | 0.63 | 178 | 2267.66 | 87.77 | 11.18 | |
44.62 | 5.197 | 233.44 | 2842.64 | 0.69 | 205.4 | 2482.85 | 87.97 | 10.63 | |
44.6 | 6.152 | 276.22 | 2988.35 | 0.77 | 240.9 | 2803.74 | 87.22 | 10.15 | |
44.59 | 6.791 | 304.84 | 3087.54 | 0.82 | 265.1 | 2982.43 | 86.96 | 9.78 | |
44.54 | 8.985 | 402.88 | 3374.39 | 0.99 | 349.8 | 3622.1 | 86.82 | 8.99 | |
44.44 | 12.429 | 556.57 | 3753.71 | 1.23 | 483.5 | 4452.04 | 86.86 | 7.99 |
propeller ( inch ) | Voltage (V) | Current (A) | Input power (W) | Speed (rpm) | Torque (N.m ） | Output power (W) | Thrust (g) | Efficiency (% ） | Force effect | Load temperature in 100% throttle |
EOLO C24*7.5 | 50.12 | 1.267 | 63.5 | 1760.95 | 0.27 | 49.78 | 994.66 | 78.39 | 15.66 |
|
50.09 | 1.697 | 85 | 1949.05 | 0.34 | 69.39 | 1234.72 | 81.63 | 14.52 | ||
50.12 | 2.292 | 114.87 | 2196.81 | 0.41 | 94.31 | 1527.75 | 82.1 | 13.29 | ||
50.09 | 2.687 | 134.59 | 2345.62 | 0.48 | 117.89 | 1751.31 | 87.59 | 13.01 | ||
50.09 | 3.416 | 171.1 | 2530.93 | 0.56 | 148.41 | 2005.15 | 86.73 | 11.71 | ||
50.08 | 3.905 | 195.56 | 2674.87 | 0.61 | 170.85 | 2206.6 | 87.36 | 11.28 | ||
50.05 | 4.673 | 233.88 | 2834.97 | 0.69 | 204.83 | 2499.21 | 87.57 | 10.68 | ||
50.03 | 5.291 | 264.7 | 2963.1 | 0.75 | 232.7 | 2688.04 | 87.91 | 10.15 | ||
50.02 | 6.279 | 314.07 | 3107.89 | 0.83 | 270.1 | 3064.71 | 85.99 | 9.75 | ||
49.98 | 7.567 | 378.19 | 3298.56 | 0.95 | 328.12 | 3463.34 | 86.76 | 9.15 | ||
49.94 | 9.54 | 476.42 | 3571.12 | 1.1 | 411.33 | 4014.81 | 86.33 | 8.42 | ||
49.86 | 14.829 | 739.37 | 4069.06 | 1.46 | 622.07 | 5319.62 | 84.13 | 7.19 | 85℃ 10min |
Specifications | EOLO7206 | Max Continuous Current | 28A/30s |
Stator Diameter | 72 mm | Max Continuous Power | 1400W |
Stator Thickness | 6 mm | Weight | g |
No.of Stator Slots | 36 | Rotor Diameter | 79mm |
No.of Rotor Poles | 42 | Body Length | 26.5mm |
Motor Kv | 130 | Max Lipo Cell | 12S |
NO-Load Current(A/10V) |
| ESC | EOLO 40A |
Motor Resistance | mΩ | Recommend Prop(inch) | EOLO C24*7.5 |

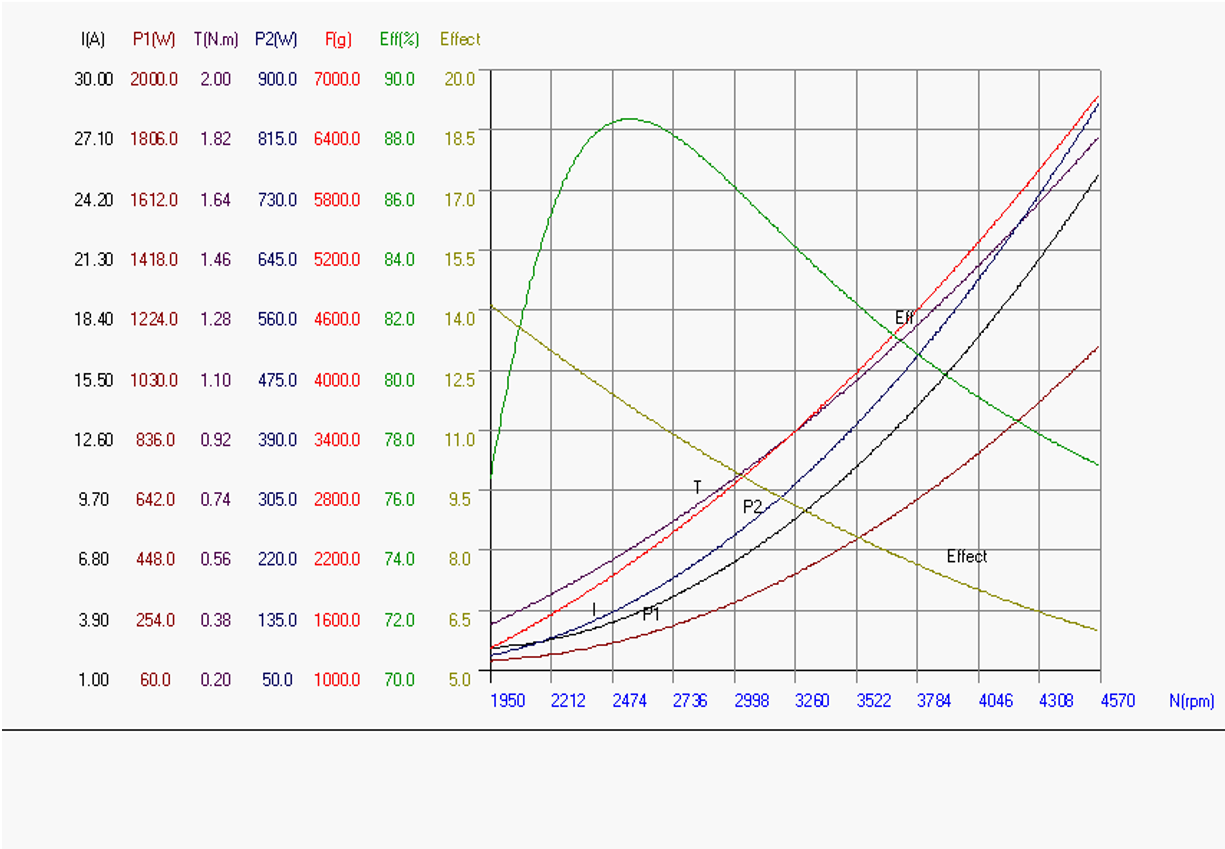

propeller
(
inch
）
|
Voltage
(V)
|
Current
(A)
|
Input
power (W)
|
Speed
(rpm)
|
Torque
(N.m
）
|
Output
power (W)
|
Thrust (g)
|
Efficiency
(%
）
|
Force
effect
|
EOLO C24*7.5
|
44.83
|
1.514
|
68.02
|
1775.58
|
0.28
|
52.05 |
1017.11 |
76.52 |
14.95 |
44.81
|
1.975
|
88.69
|
1967.79
|
0.34
|
70.05 |
1244.6 |
78.98 |
14.03 | |
44.82
|
2.558
|
114.9
|
2169.21
|
0.4
|
90.85 |
1534.65 |
79.06 |
13.36 | |
44.78
|
3.361
|
150.84
|
2407.33
|
0.51
|
128.55 |
1818.26 |
85.22 |
12.05 | |
44.77
|
3.856
|
173.01
|
2519.95
|
0.57
|
150.4 |
2052.06 |
86.93 |
11.86 | |
44.75
|
4.378
|
196.35
|
2629.3
|
0.62
|
170.69 |
2207.27 |
86.93 |
11.24 | |
44.73
|
5.513
|
247.14
|
2850.38
|
0.71
|
211.91 |
2564.86 |
85.74 |
10.38 | |
44.7
|
6.064
|
271.66
|
2946.57
|
0.75
|
231.4 |
2758.87 |
85.18 |
10.16 | |
44.7
|
7.012
|
314.13
|
3071.25
|
0.81
|
260.49 |
3023.04 |
82.92 |
9.62 | |
44.65
|
9.164
|
410.08
|
3358.12
|
0.97
|
341.08 |
3625.89 |
83.17 |
8.84 | |
44.62
|
10.978
|
490.93
|
3564.57
|
1.08
|
403.11 |
4062.01 |
82.11 |
8.27 | |
44.55
|
13.107
|
585.22
|
3764.94
|
1.23
|
484.9 |
4563.65 |
82.85 |
7.80 | |
44.53
|
15.082
|
673.1
|
3930.13
|
1.32
|
543.22 |
4973.1 |
80.7 |
7.39 | |
44.43
|
17.727
|
790.26
|
4126.27
|
1.46
|
630.82 |
5471.45 |
79.82 |
6.92 | |
44.42
|
20.504
|
912.83
|
4287.36
|
1.59
|
713.81 |
5954.91 |
78.19 |
6.52 | |
44.3
|
25.938
|
1151.64
|
4569.68
|
1.82
|
870.87 |
6777.92 |
75.61 |
5.89 |

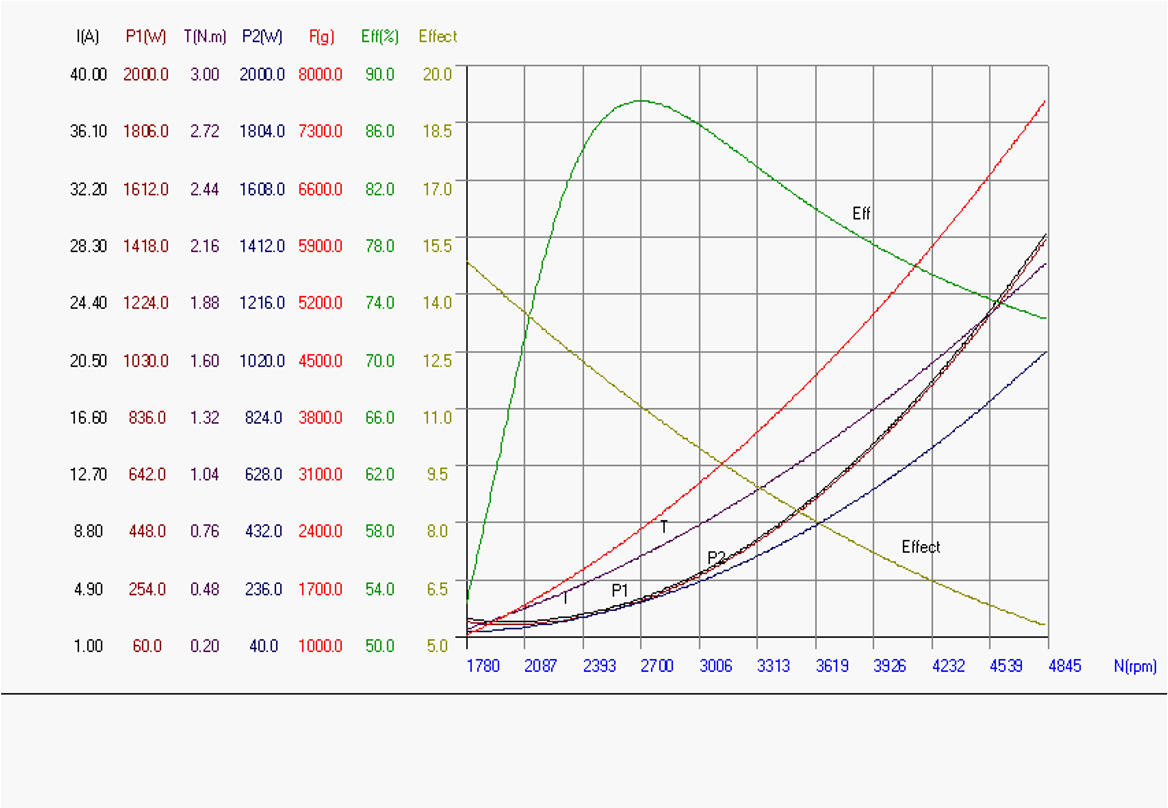

propeller
（
inch
）
|
Voltage
(V)
|
Current
(A)
|
Input
power (W)
|
Speed
(rpm)
|
Torque
(N.m
）
|
Output
power (W)
|
Thrust (g)
|
Efficiency
(%
）
|
Force
effect
|
Load
temperature in 100% throttle
|
EOLO C24*7.5
|
49.98
|
1.37
|
68.47
|
1788.68
|
0.23
|
43.07 |
1026.07 |
62.9 |
14.98 |
|
49.98
|
1.845
|
92.21
|
2001.08
|
0.3
|
62.86 |
1281.84 |
68.17 |
13.9 | ||
50
|
2.306
|
115.29
|
2165.54
|
0.35
|
79.36 |
1510.2 |
68.83 |
13.09 | ||
49.95
|
2.837
|
141.7
|
2339.55
|
0.47
|
115.14 |
1783.14 |
81.25 |
12.58 | ||
49.95
|
3.525
|
176.07
|
2535.47
|
0.54
|
143.36 |
2046.15 |
81.42 |
11.62 | ||
49.91
|
4.091
|
204.18
|
2656.42
|
0.6
|
166.89 |
2263.48 |
81.73 |
11.08 | ||
49.89
|
4.984
|
248.65
|
2847.26
|
0.69
|
205.71 |
2579.17 |
82.73 |
10.37 | ||
49.86
|
5.909
|
294.62
|
3019.61
|
0.77
|
243.46 |
2927.55 |
82.63 |
9.93 | ||
49.84
|
7.955
|
396.47
|
3326.1
|
0.92
|
320.42 |
3545.98 |
80.81 |
8.94 | ||
49.83
|
9.589
|
477.81
|
3525.53
|
1.03
|
380.24 |
3978.23 |
79.57 |
8.32 | ||
49.8
|
11.637
|
579.52
|
3739.99
|
1.17
|
458.19 |
4509.34 |
79.06 |
7.78 | ||
49.76
|
13.81
|
687.18
|
3948.52
|
1.31
|
541.62 |
5017.44 |
78.81 |
7.3 | ||
49.69
|
15.888
|
789.47
|
4111.43
|
1.47
|
632.85 |
5444.79 |
80.16 |
6.89 | ||
49.63
|
18.71
|
928.57
|
4299.38
|
1.59
|
715.81 |
5949.77 |
77.08 |
6.4 | ||
49.39
|
30.02
|
1482.68
|
4843.79
|
2.06
|
1044.83 |
7628.4 |
70.46 |
5.14 | ||
18.804
|
936.25
|
4344.01
|
1.68
|
764.18
|
5941.91 |
33.85 |
6.34 |
2.776 | ||
49.71 |
21.823 |
1084.82 |
4517.82 |
1.81 |
856.25 |
6420.52 |
78.93 |
5.91 | ||
49.52 |
30.654 |
1517.98 |
4928.99 |
2.2 |
1135.47 |
7769.43 |
74.8 |
5.11 |
112℃ 1min20s |
Specifications | EOLO7206 | Max Continuous Current | 40A/30s |
Stator Diameter | 72mm | Max Continuous Power | 968W |
Stator Thickness | 6mm | Weight | g |
No.of Stator Slots | 36 | Rotor Diameter | 79mm |
No.of Rotor Poles | 42 | Body Length | 26.5mm |
Motor Kv | 260 | Max Lipo Cell | 6S |
NO-Load Current(A/10V) | ESC | EOLO 50A | |
Motor Resistance | mΩ | Recommend Prop(inch) | EOLO C24*7.5 |

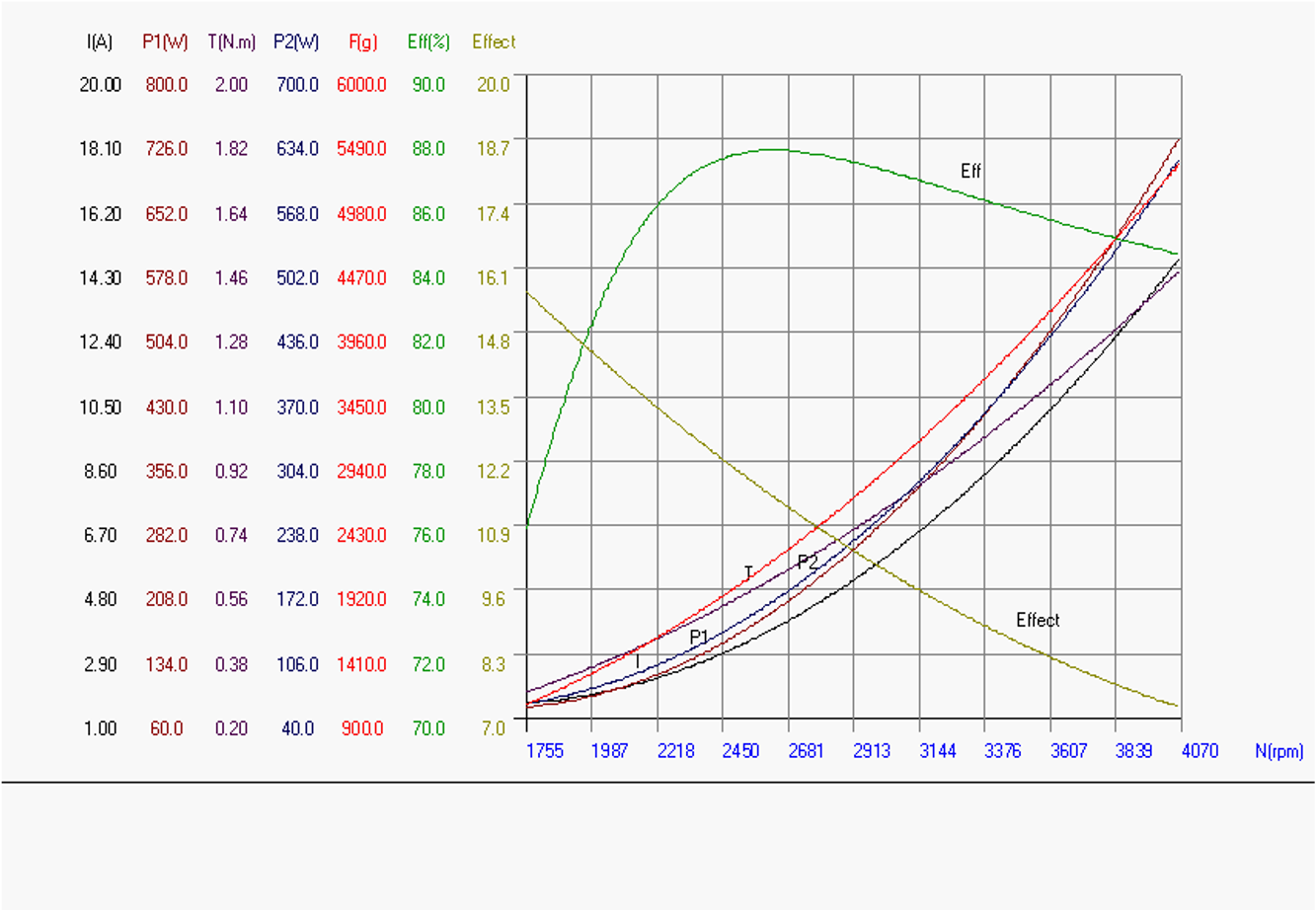

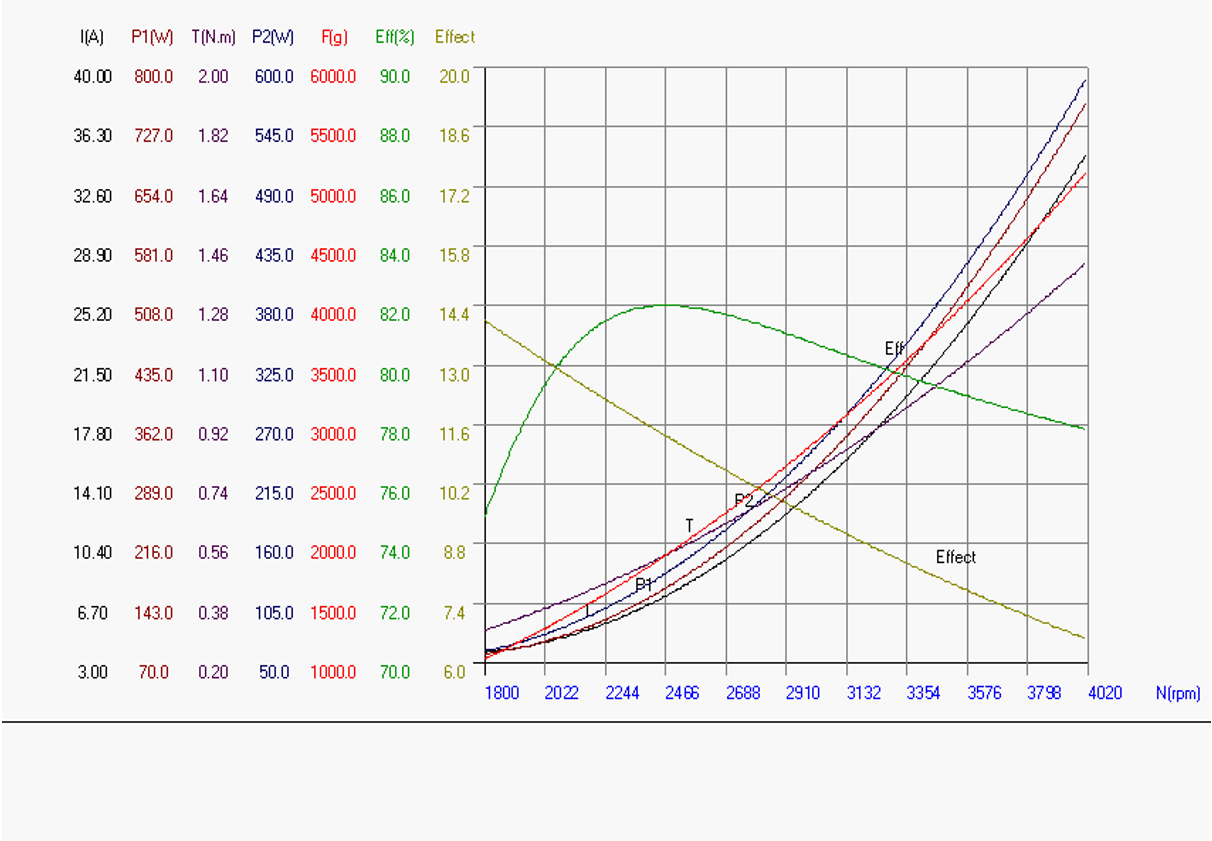

propeller ( inch ） | Voltage (V) | Current (A) | Input power (W) | Speed (rpm) | Torque (N.m ） | Output power (W) | Thrust (g) | Efficiency (% ） | Force effect |
EOLO C24*7.5 | 22.52 | 3.242 | 73 | 1801.96 | 0.3 | 56.6 | 1008.57 | 77.53 | 13.81 |
22.47 | 4.292 | 96.44 | 2016.91 | 0.36 | 76.03 | 1243.49 | 78.83 | 12.89 | |
22.46 | 5.551 | 124.67 | 2209.27 | 0.43 | 99.47 | 1612.15 | 79.78 | 12.93 | |
22.44 | 6.986 | 156.76 | 2403.4 | 0.5 | 125.83 | 1844.29 | 80.26 | 11.76 | |
22.42 | 8.226 | 184.42 | 2548.27 | 0.56 | 149.42 | 2083.49 | 81.02 | 11.29 | |
22.38 | 9.596 | 214.75 | 2677.73 | 0.63 | 176.64 | 2252.05 | 82.25 | 10.48 | |
22.34 | 11.369 | 253.98 | 2841.4 | 0.7 | 208.27 | 2497.96 | 82 | 9.83 | |
22.34 | 12.808 | 286.13 | 2955.12 | 0.75 | 232.07 | 2705.14 | 81.1 | 9.45 | |
22.28 | 14.927 | 332.57 | 3101.33 | 0.83 | 269.53 | 2994.95 | 81.04 | 9 | |
22.2 | 19.064 | 423.22 | 3341.14 | 0.96 | 335.86 | 3509.87 | 79.35 | 8.29 | |
22.1 | 23.593 | 521.4 | 3580.96 | 1.1 | 412.46 | 4043.11 | 79.1 | 7.75 | |
21.86 | 35.112 | 767.54 | 4015.19 | 1.42 | 597.02 | 5140.91 | 77.78 | 6.69 | |
21.94 | 35.431 | 777.35 | 4033.88 | 1.45 | 612.47 | 5189.07 | 78.78 | 6.67 |
propeller ( inch ) | Voltage (V) | Current (A) | Input power (W) | Speed (rpm) | Torque (N.m ） | Output power (W) | Thrust (g) | Efficiency (% ） | Force effect | Load temperature in 100% throttle |
EOLO C24*7.5 | 24.94 | 3.049 | 76.04 | 1830.68 | 0.27 | 51.75 | 1034.04 | 68.05 | 13.59 |
|
24.94 | 3.99 | 99.51 | 2023.35 | 0.34 | 72.03 | 1274.48 | 72.38 | 12.8 | ||
24.9 | 5.104 | 127.08 | 2220.71 | 0.41 | 95.33 | 1521.94 | 75.01 | 11.97 | ||
24.91 | 5.802 | 144.52 | 2334 | 0.48 | 117.31 | 1746.4 | 81.17 | 12.08 | ||
24.89 | 7.483 | 186.25 | 2543.59 | 0.57 | 151.81 | 2032.8 | 81.5 | 10.91 | ||
24.86 | 8.86 | 220.25 | 2700.59 | 0.64 | 180.98 | 2294.02 | 82.17 | 10.41 | ||
24.84 | 10.292 | 255.65 | 2841.78 | 0.71 | 211.27 | 2537.79 | 82.64 | 9.92 | ||
24.79 | 11.843 | 293.58 | 2976.83 | 0.77 | 240.01 | 2774.57 | 81.75 | 9.45 | ||
24.77 | 13.411 | 332.19 | 3097.19 | 0.83 | 269.17 | 2993 | 81.02 | 9 | ||
24.7 | 17.165 | 423.97 | 3340.82 | 0.97 | 339.32 | 3534.08 | 80.03 | 8.33 | ||
24.61 | 20.83 | 512.62 | 3549.68 | 1.1 | 408.86 | 4002.53 | 79.75 | 7.8 | ||
24.51 | 26.008 | 637.45 | 3790.19 | 1.25 | 496.09 | 4600.35 | 77.82 | 7.21 | ||
24.42 | 30.073 | 734.38 | 3954.66 | 1.37 | 567.31 | 4984.99 | 77.25 | 6.78 | ||
24.21 | 40.871 | 989.48 | 4281.42 | 1.65 | 739.72 | 5871.2 | 74.75 | 5.93 | 125℃ 10min |
