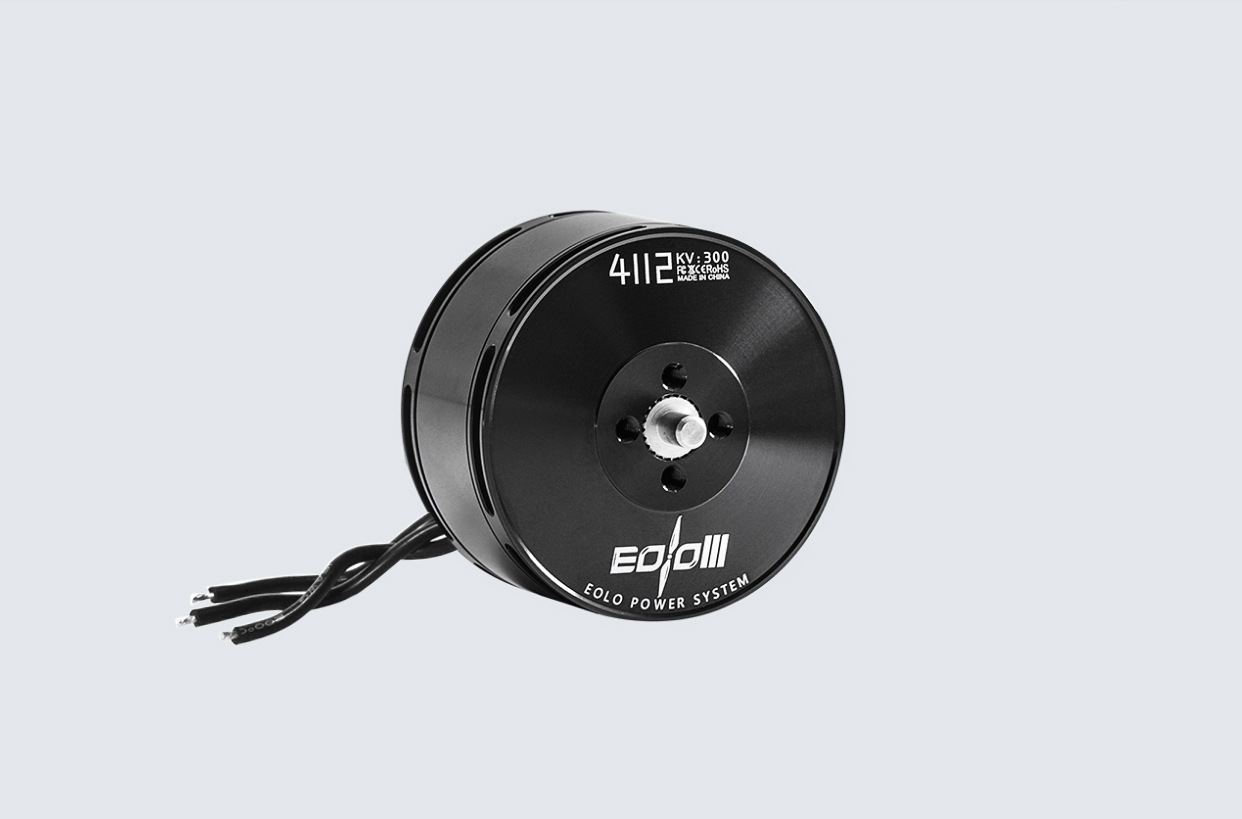

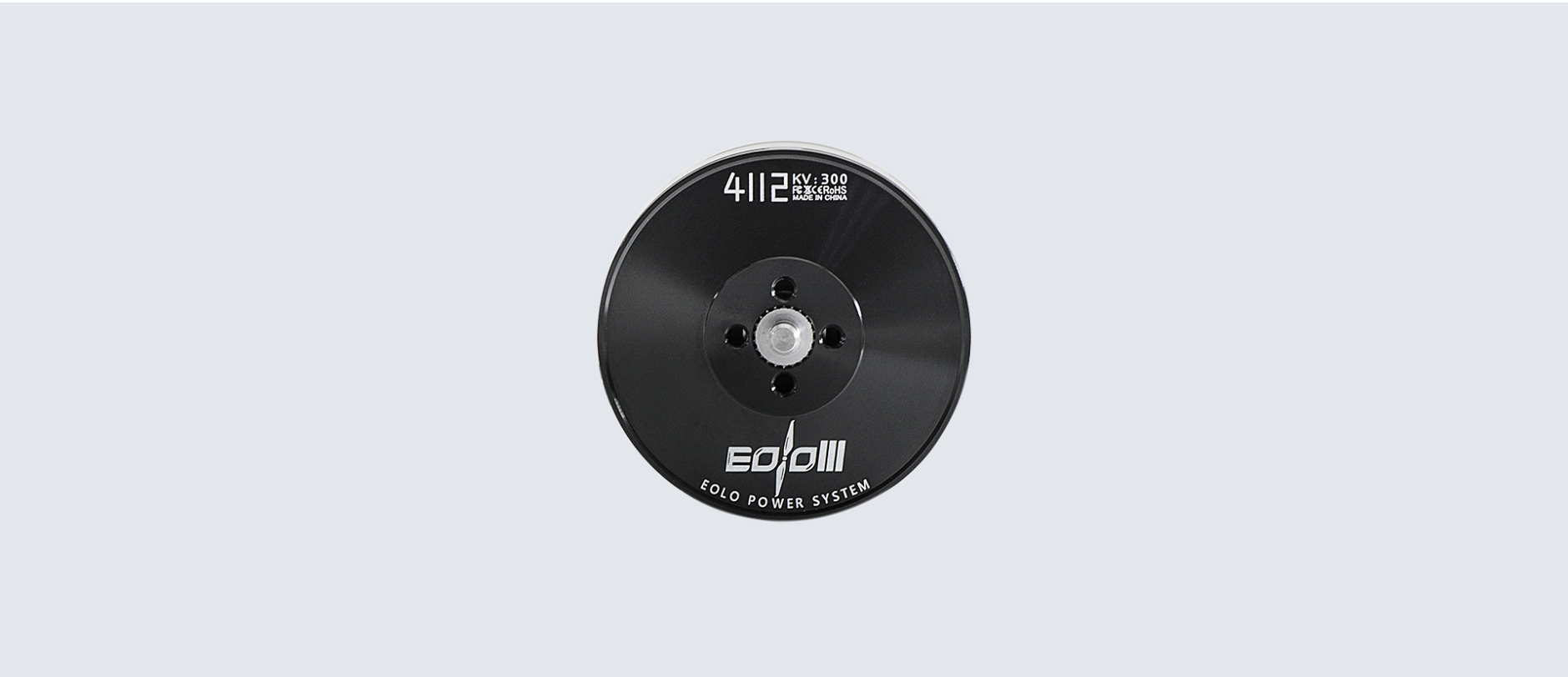

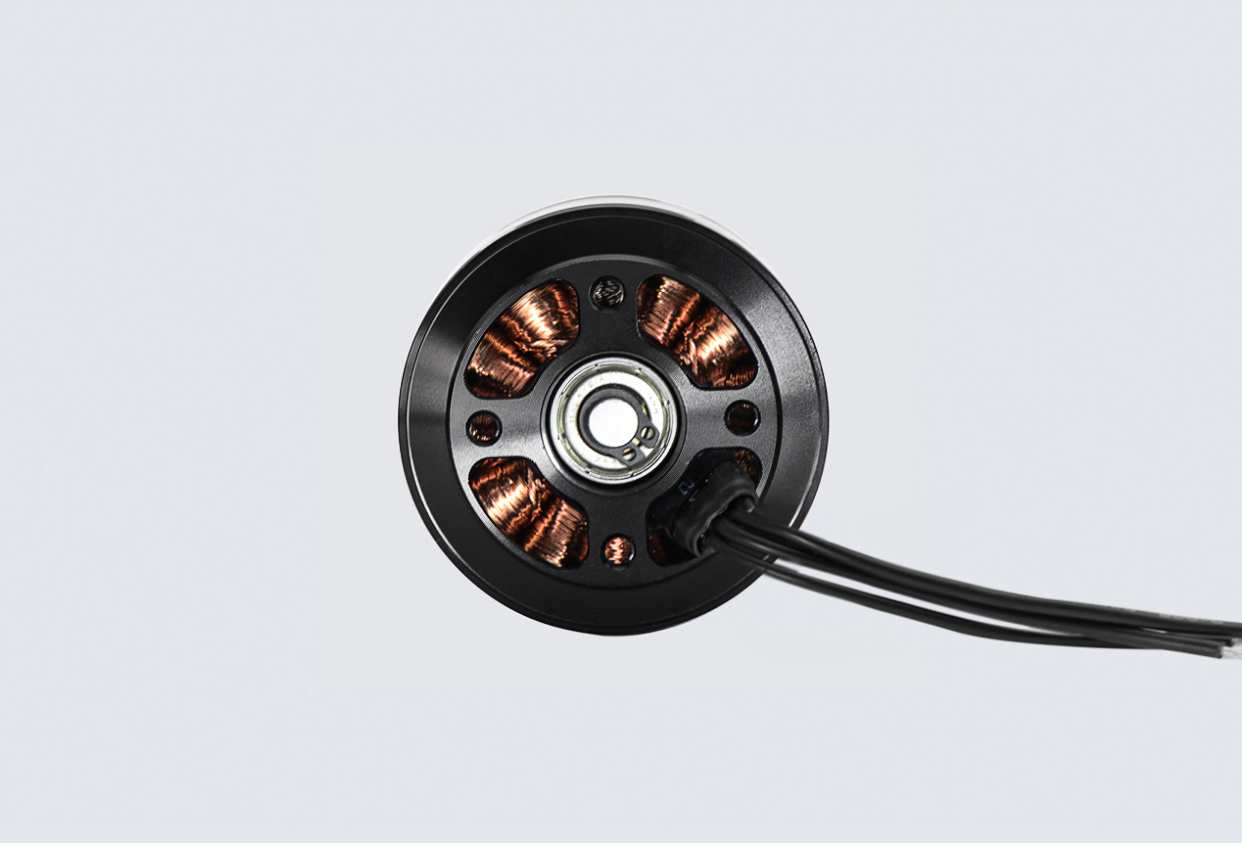

EOLO 4112
Details Technical parameters Test report Package including Photos

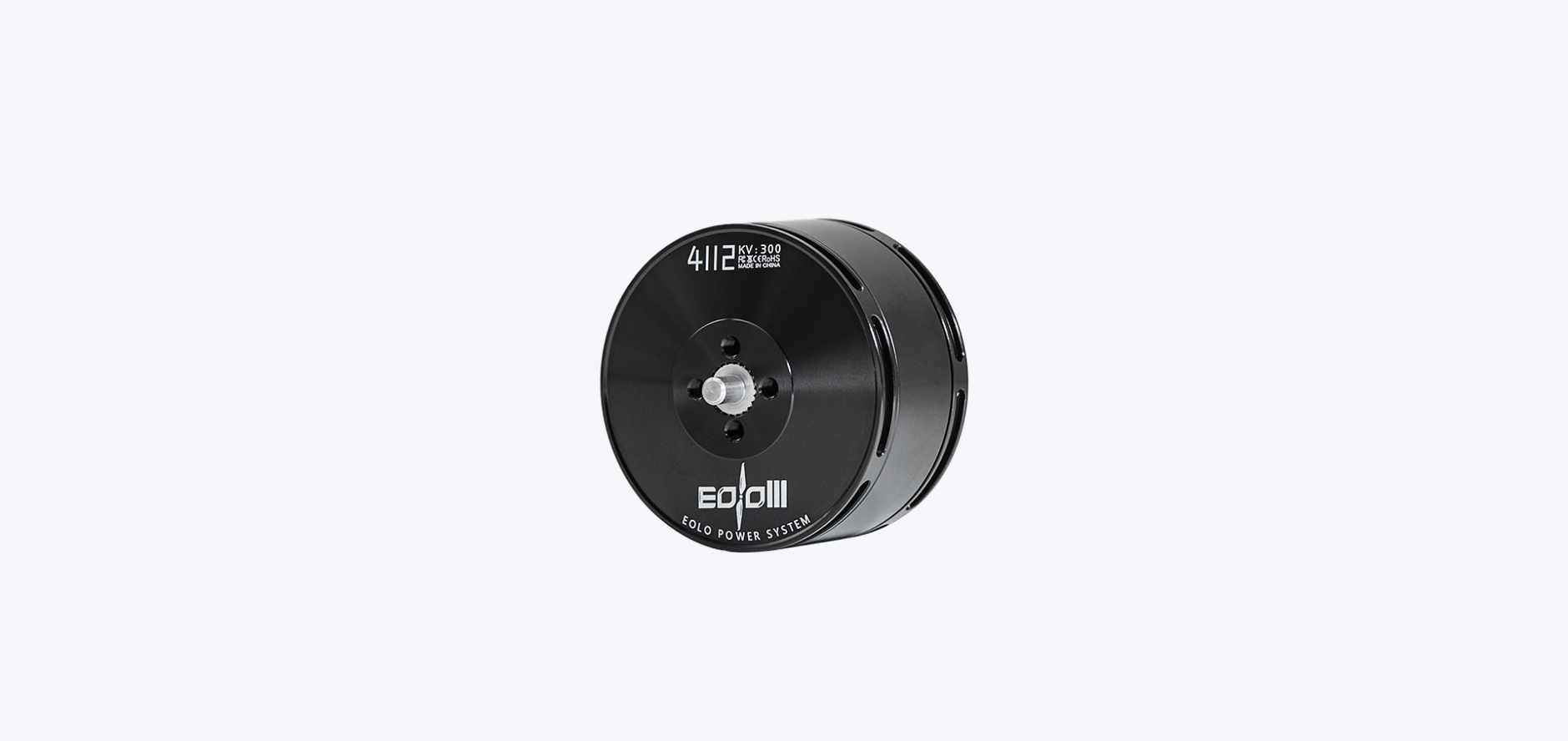

@@title



This product is designed solely for use by RC model enthusiasts and for recreational purposes. It is

not intended for professional, military, commercial, or industrial applications.

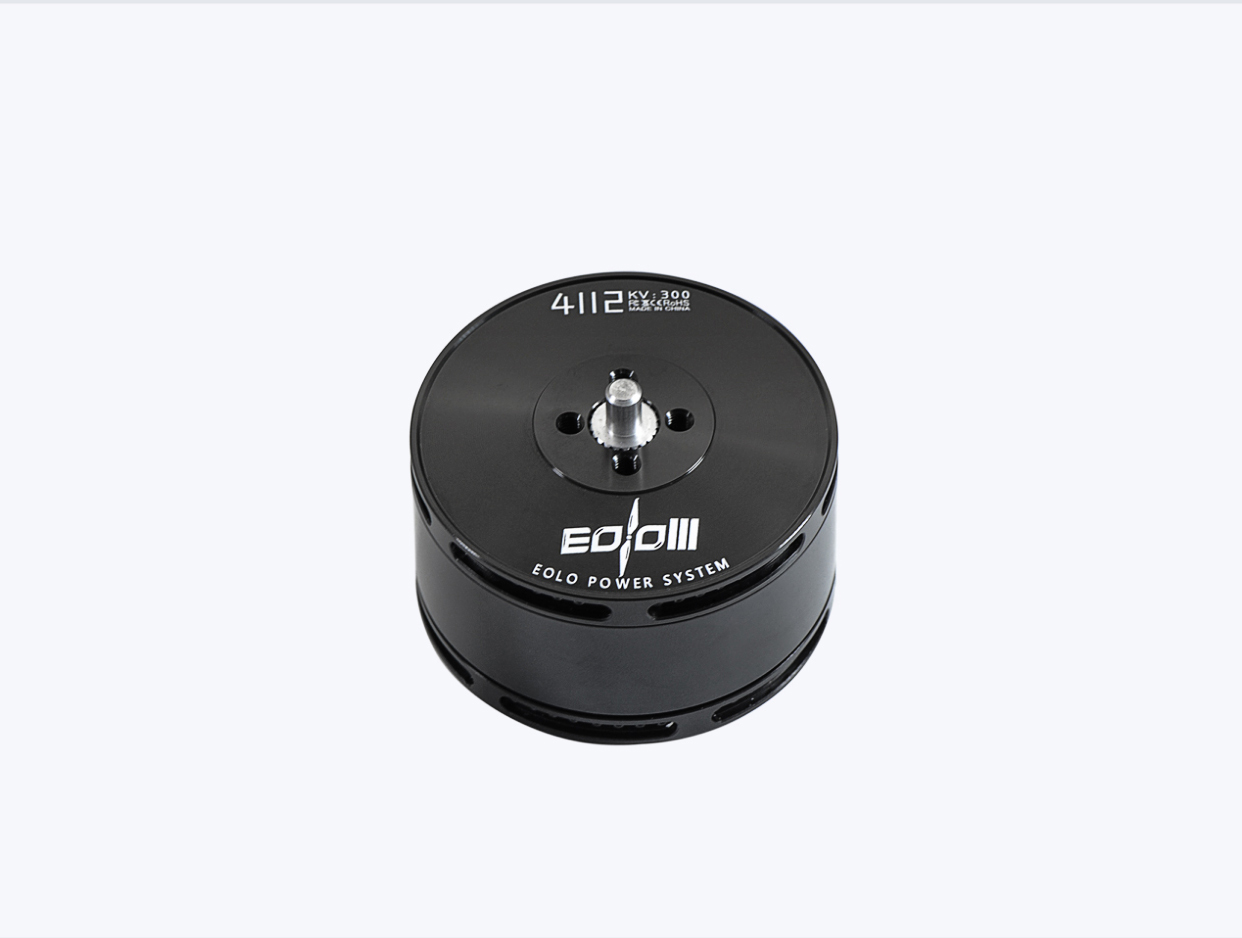

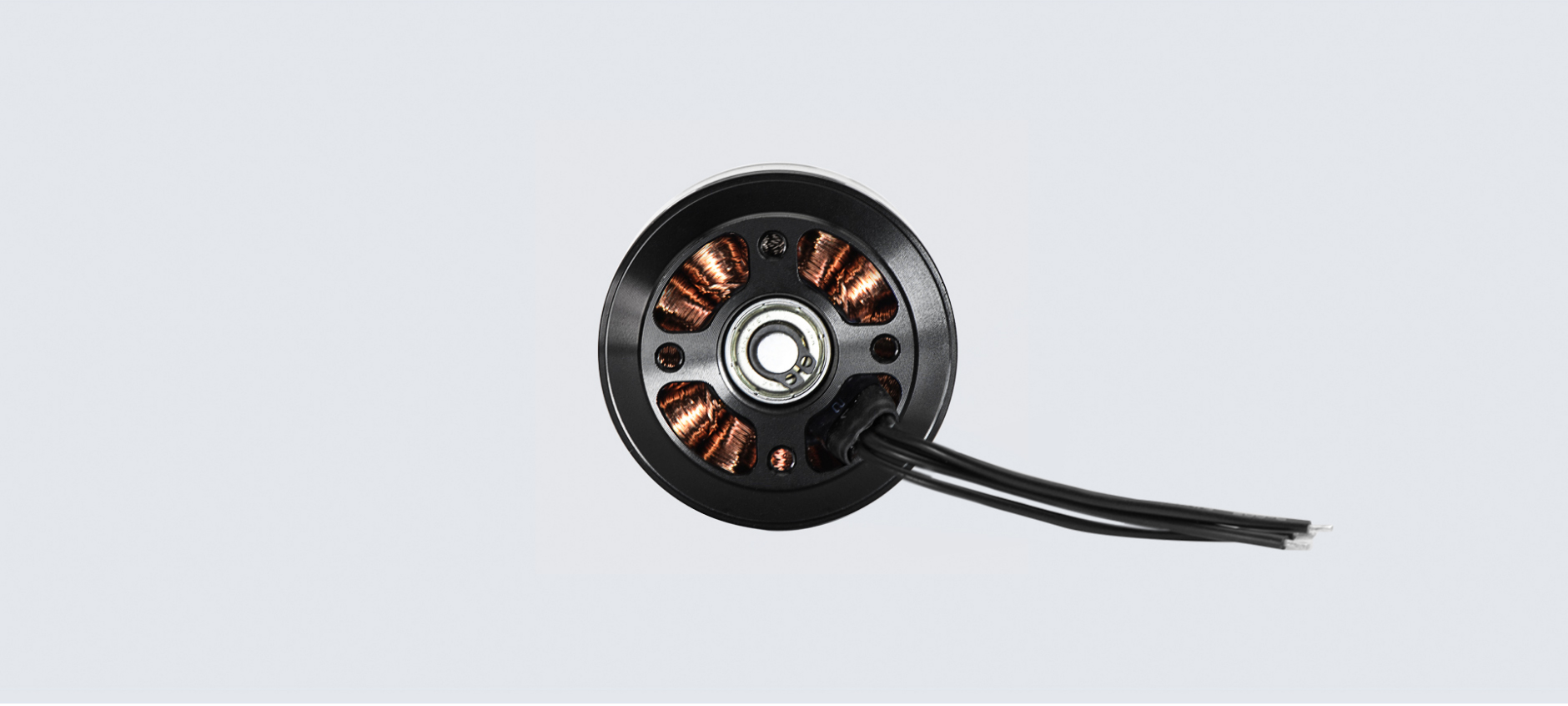

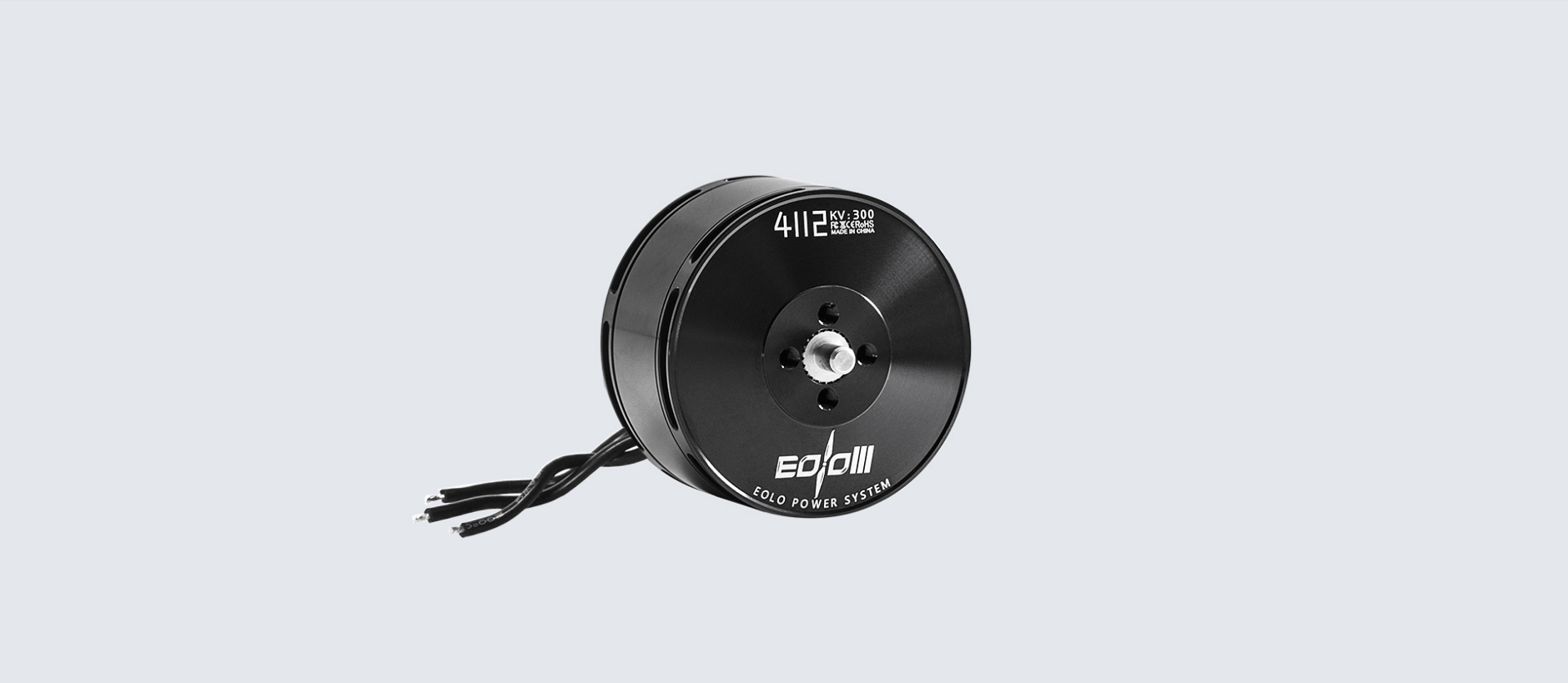

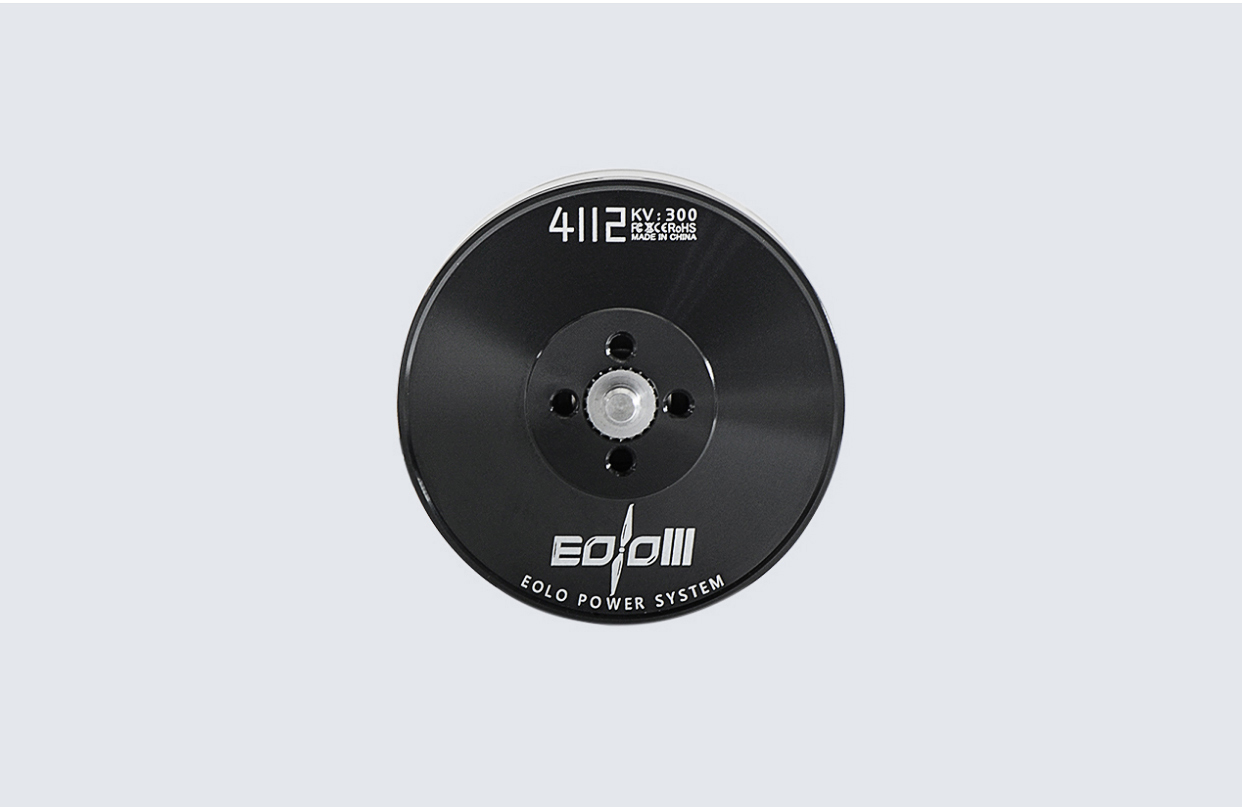

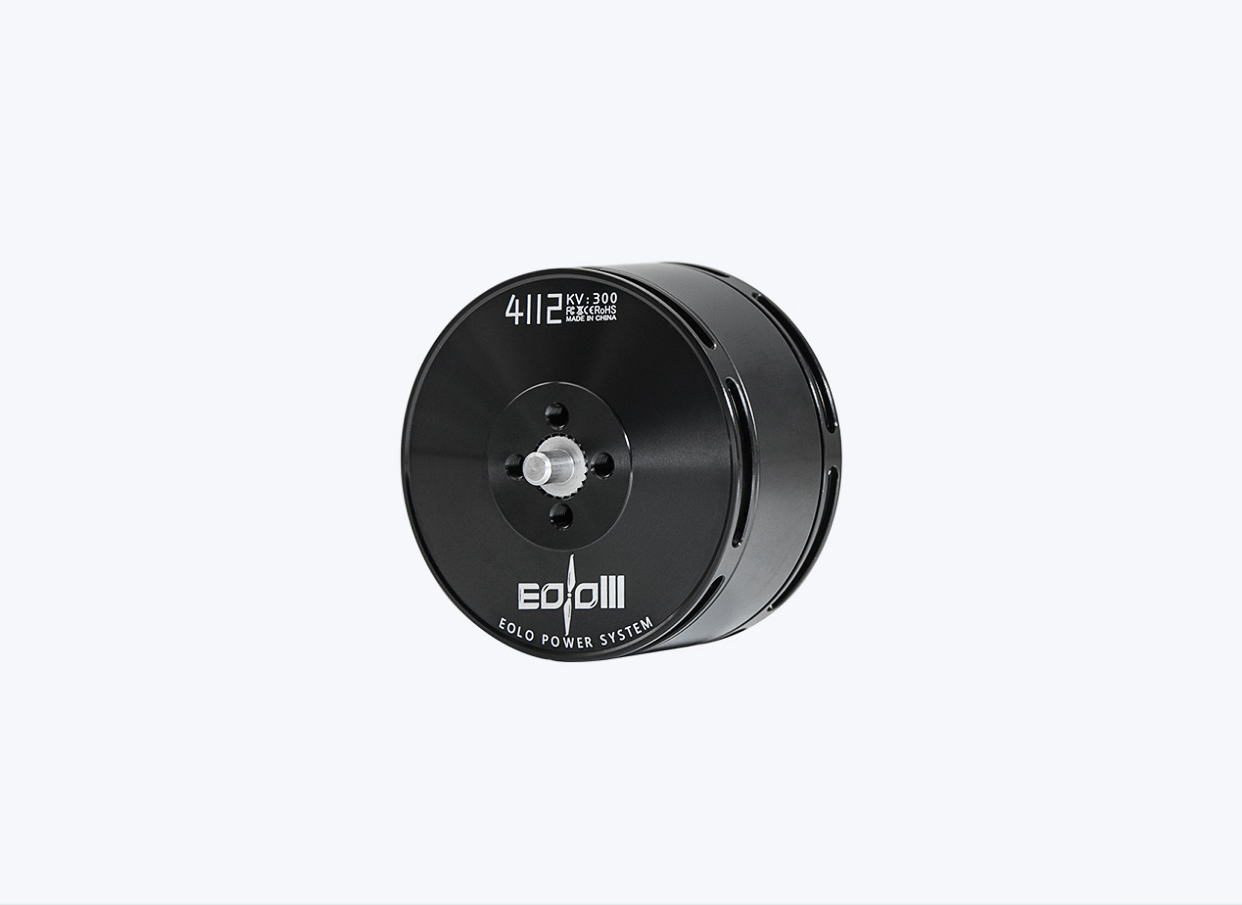

1 拷贝.jpg6370034352838096179273580.jpg3 拷贝.jpg4 拷贝.jpg5 拷贝.jpg

This product is designed solely for use by RC model enthusiasts and for recreational purposes. It isnot intended for professional, military, commercial, or industrial applications.


Motor Model / KV EOLO 4112/ KV320 EOLO 4112/ KV420 EOLO 4112/ KV580
Stator/Rotor Poles 12N14P 12N14P 12N14P
Internal resistance 96mΩ 67mΩ 44mΩ

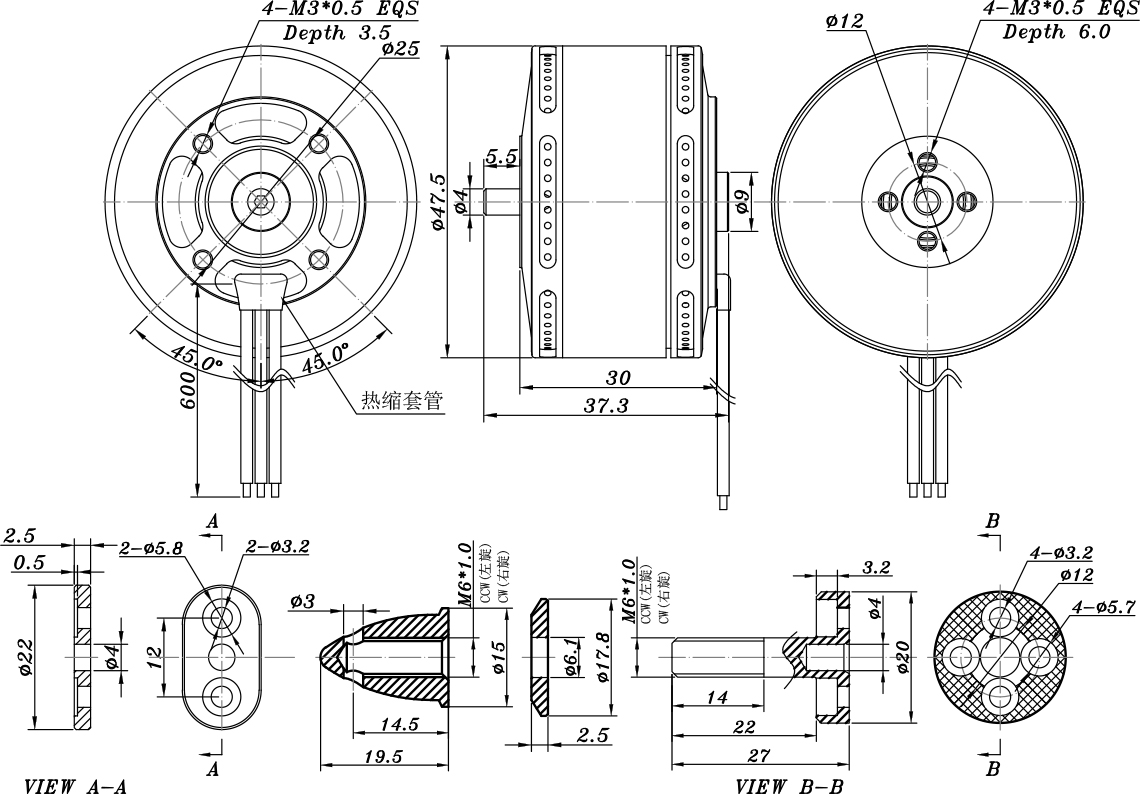

Motor size φ47.5*37.3mm
 φ47.5*37.3mm
 φ47.5*37.3mm
Shaft diameter 4.0mm 4.0mm 4.0mm
AWG 20AWG 600mm 20AWG 600mm 20AWG 600mm
Motor weight(wire included) 197g 199g 200g
Motor weight(wire excluded) 166g 168g 169g
Rated operational voltage 6S 6S 4S
No-load current 0.5A/10V 0.7A/10V 1.1A/10V
Maximum continuous power 825W 1000W 1020W
Maximum continuous current 33A/30s 40A/30s 62A/30s
ESC recommended use EOLO 50A EOLO 50A EOLO 50A
Propeller size recommended use EOLO CN17*6.2 EOLO CN15*5.5/C15*5.5 EOLO CN17*6.2/CN15*5.5

EOLO 4112

KV320 KV420 KV580
Stator Diameter 41mm Weight 197g
Stator Thickness 12mm Weight (Without wire) 166g
No.of Stator Slots 12 Rotor Diameter 47.5mm
No.of Rotor Poles 14 Body Length 30mm
Motor Kv 320 Max Lipo Cell 6S
No-load current 0.5A/10V ESC EOLO 50A
Motor Resistance 96mΩ Recommended Prop(inch) EOLO CN17*6.2
Max Continuous Current 33A/30s Recommended single take-off weight ≤1500g
Max Continuous Power 825W




Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) RPM Load temperature in 100% throttle
EOLO CN17*6.2 22.2 0.6 250 13 18.77 1757 100℃ 10min
1.6 500 36 14.08 2406
2.8 750 62 12.07 2858
4.2 1000 93 10.73 3305
5.7 1250 127 9.88 3660
7.4 1500 164 9.13 4039
9.3 1750 206 8.48 4340
11.4 2000 253 7.90 4658
13.55 2250 301 7.48 4853
16.1 2500 357 6.99 5157
18.8 2750 417 6.59 5429
23.6 3230 524 6.17 5791
25 0.55 250 14 18.18 1760
1.4 500 35 14.29 2378
2.4 750 60 12.50 2891
3.6 1000 90 11.11 3309
5 1250 125 10.00 3650
6.6 1500 165 9.09 4030
8.35 1750 209 8.38 4365
10.1 2000 253 7.92 4617
12.2 2250 305 7.38 4920
14.4 2500 360 6.94 5171
16.6 2750 415 6.63 5383
19.4 3000 485 6.19 5675
25 3500 625 5.60 6121
28.7 3910 718 5.45 6377







Stator Diameter 41mm Weight 199g
Stator Thickness 12mm Weight (Without wire) 168g
No.of Stator Slots 12 Rotor Diameter 47.5mm
No.of Rotor Poles 14 Body Length 30mm
Motor Kv 420 Max Lipo Cell 6S
No-load current 0.7A/10V ESC EOLO 50A
Motor Resistance 67mΩ Recommended Prop(inch) EOLO CN15*5.5/C15*5.5
Max Continuous Current 40A/30s Recommended single take-off weight ≤1800g
Max Continuous Power 1000W




Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) RPM Load temperature in 100% throttle
EOLO CN15*5.5 22.2 1.9 500 42.18 11.85 3186 87℃ 1min30s
3.3 750 73.26 10.24 3808
4.9 1000 108.78 9.19 4446
6.7 1250 148.74 8.40 4871
8.8 1500 195.36 7.68 5270
10.8 1750 239.76 7.30 5772
13.4 2000 297.48 6.72 6170
16.3 2250 361.86 6.22 6430
19.1 2500 424.02 5.90 6853
22.9 2750 508.38 5.41 7079
25.7 3000 570.54 5.26 7371
31 3418 688.2 4.97 7727
25 1.6 500 40 12.50 3138
2.9 750 72.5 10.34 3810
4.4 1000 110 9.09 4360
5.9 1250 147.5 8.47 4890
7.8 1500 195 7.69 5290
9.8 1750 245 7.14 5663
12 2000 300 6.67 6063
14.4 2250 360 6.25 6370
16.9 2500 422.5 5.92 6815
19.9 2750 497.5 5.53 7020
22.6 3000 565 5.31 7360
28.6 3500 715 4.90 7920
37.7 4100 942.5 4.35 8438







Stator Diameter 41mm Weight 200g
Stator Thickness 12mm Weight (Without wire) 169g
No.of Stator Slots 12 Rotor Diameter 47.5mm
No.of Rotor Poles 14 Body Length 30mm
Motor Kv 580 Max Lipo Cell 4S
No-load current 1.1A/10V ESC EOLO 50A
Motor Resistance 44mΩ Recommended Prop(inch) EOLO CN17*6.2/CN15*5.5
Max Continuous Current 62A/30s Recommended single take-off weight ≤1800g
Max Continuous Power 1020W




Prop(inch) Voltage(V) Amps(A) Thrust(gf) Watts(W) Efficiency(g/W) RPM Load temperature in 100% throttle
EOLO CN17*6.2 14.8 1.1 250 16 15.36 1740 92℃ 1min
2.6 500 38 12.99 2392
4.4 750 65 11.52 2844
6.6 1000 98 10.24 3338
9.1 1250 135 9.28 3672
11.9 1500 176 8.52 4066
14.95 1750 221 7.91 4372
18.5 2000 274 7.30 4601
22.3 2250 330 6.82 4928
26.6 2500 394 6.35 5164
30.9 2750 457 6.01 5442
36.4 3000 539 5.57 5654
49 3610 725 4.98 6142
16.5 0.9 250 15 16.84 1800
2.3 500 38 13.18 2377
3.9 750 64 11.66 2826
5.8 1000 96 10.45 3330
8.1 1250 134 9.35 3656
10.55 1500 174 8.62 4008
13.2 1750 218 8.03 4344
16.5 2000 272 7.35 4640
19.6 2250 323 6.96 4956
23.25 2500 384 6.52 5160
27.8 2750 459 6.00 5415
32.25 3000 532 5.64 5670
44 3500 726 4.82 6158
60 4350 990 4.39 6738
