This product is designed solely for use by RC model enthusiasts and for recreational purposes. It is
not intended for professional, military, commercial, or industrial applications.
This product is designed solely for use by RC model enthusiasts and for recreational purposes. It isnot intended for professional, military, commercial, or industrial applications.

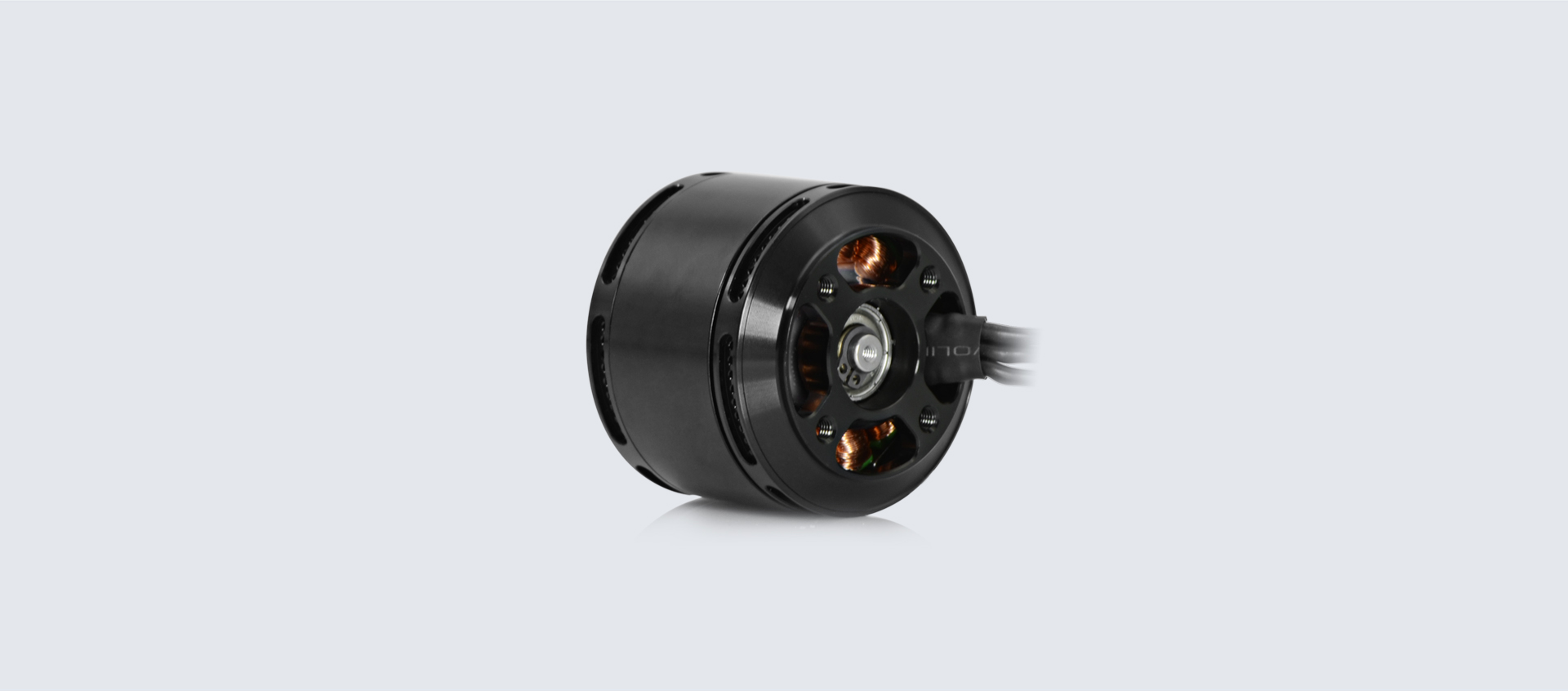

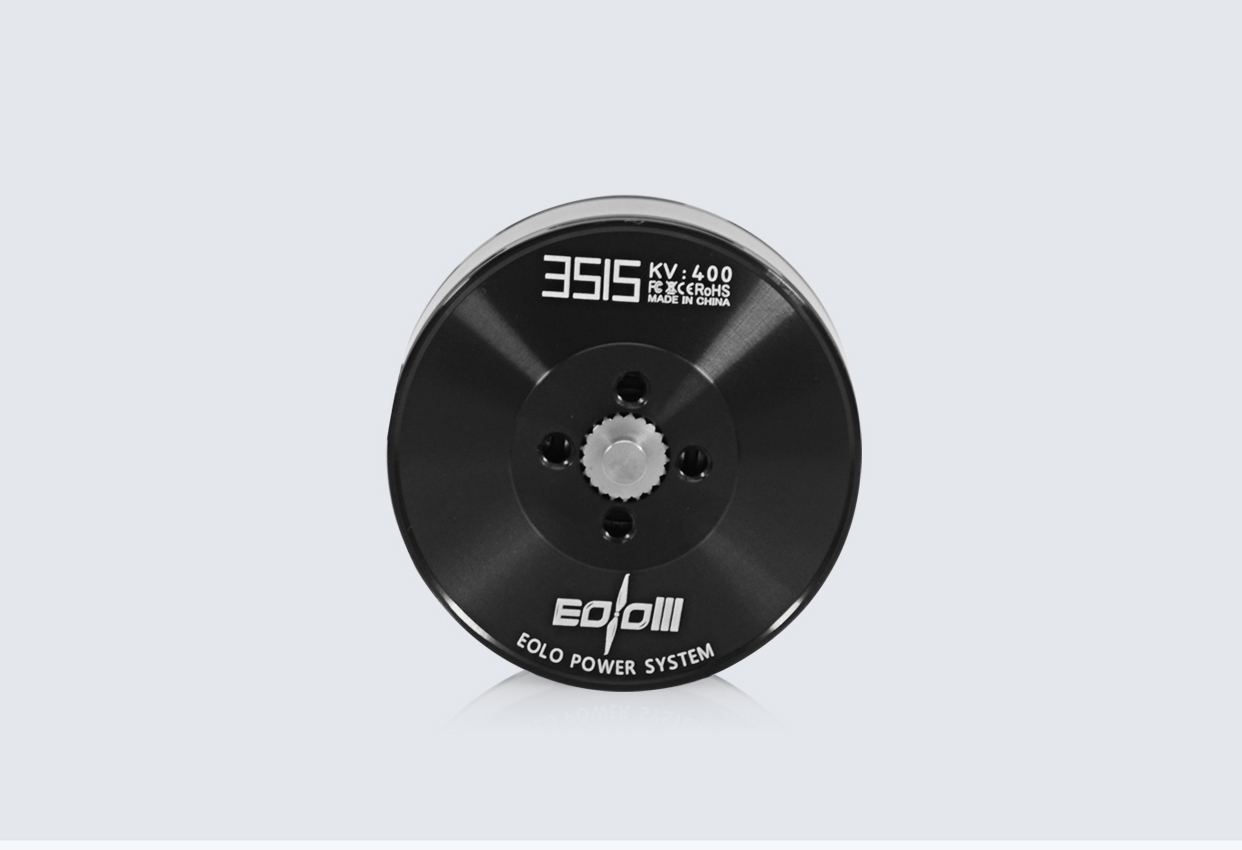

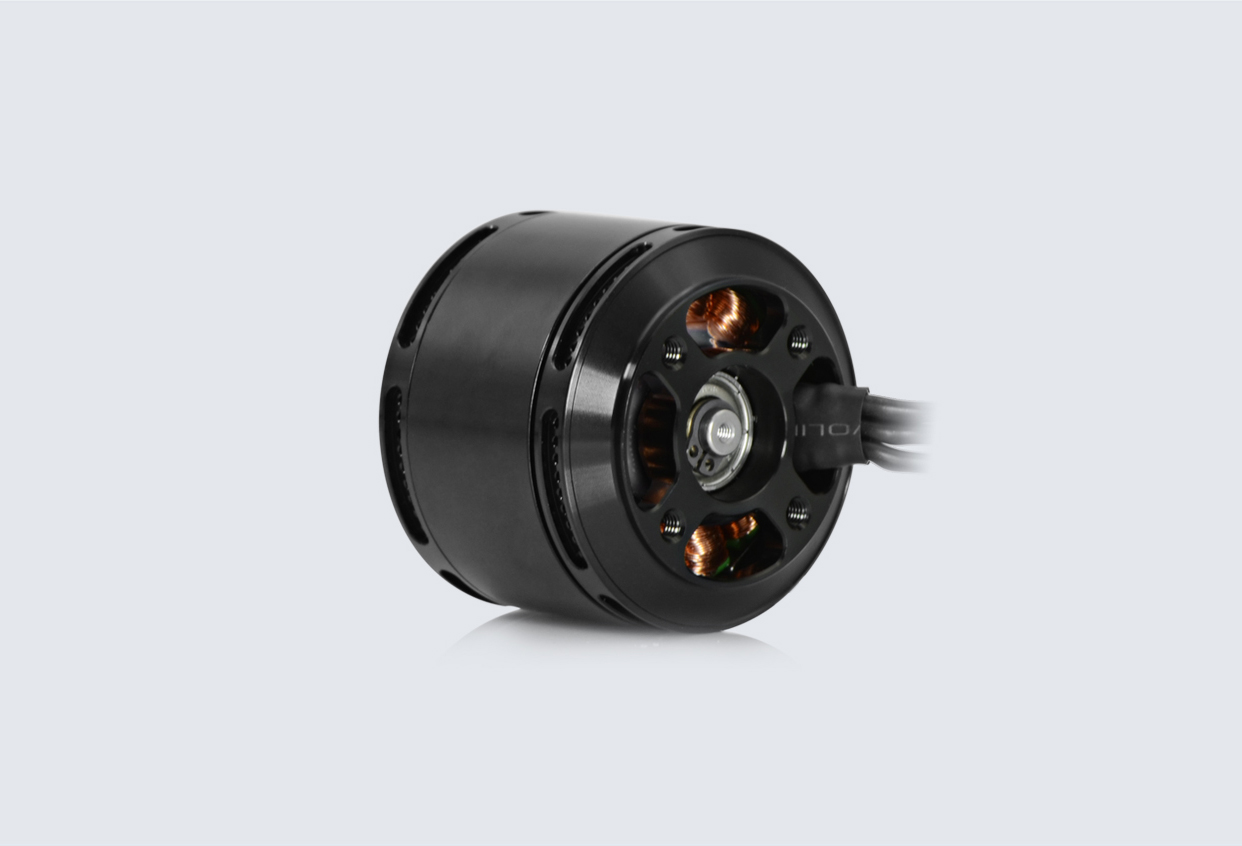

| Motor Model / KV | EOLO 3515/ KV400 |
|---|---|
| Stator/Rotor Poles | 12N14P |
| Internal resistance | 87mΩ |
| Motor size | 33.5mm |
| Shaft diameter | 5mm |
| AWG | 16AWG 600mm |
| Motor weight(wire included) | 170g |
| Motor weight(wire excluded) | —— |
| Rated operational voltage | 6S |
| No-load current | 0.6A |
| Maximum continuous power | 700W |
| Maximum continuous current | 28A/30s |
| ESC recommended use | EOLO 50A |
| Propeller size recommended use | EOLO C15*5.5 CN13*5 |

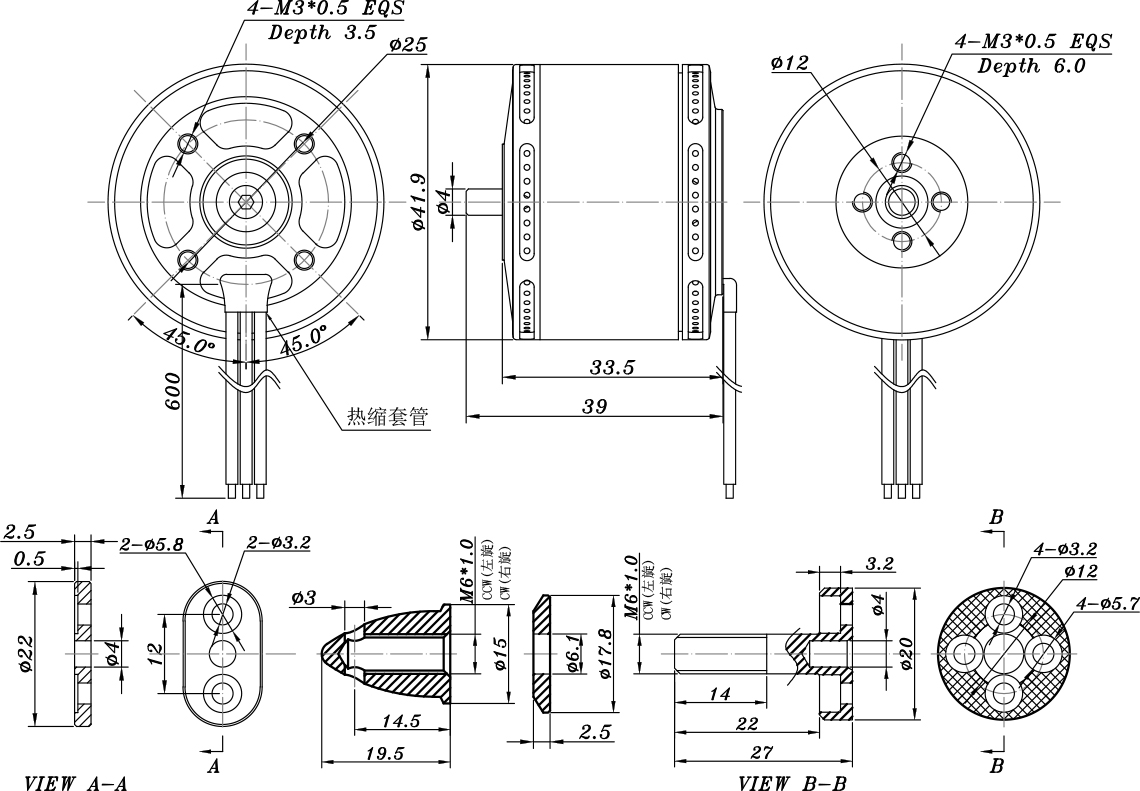

Specifications | EOLO3515 | Max Continuous Current | 28A/30s |
Stator Diameter | 35mm | Max Continuous Power | 700W |
Stator Thickness | 15mm | Weight | 170g |
No.of Stator Slots | 12 | Rotor Diameter | 41.9mm |
No.of Rotor Poles | 14 | Body Length | 33.5mm |
Motor Kv | 400 | Max Lipo Cell | 6S |
NO-Load Current(A/10V) | 0.6 | ESC | EOLO 50A |
Motor Resistance | 87mΩ | Recommend Prop(inch) | EOLO C15*5.5 CN13*5 |
Propeller (inch) | Voltage (V) | Current (A) | Thrust (g) | Watts (W) | Efficiency (g/W) | RPM | Load temperature in 100% throttle |
EOLO C15*5.5 | 22.2 | 0.5 | 200 | 11 | 18.02 | 2038 |
|
0.9 | 300 | 20 | 15.02 | 2438 | |||
1.3 | 400 | 29 | 13.86 | 2780 | |||
1.8 | 500 | 38 | 13.25 | 3100 | |||
2.4 | 600 | 51 | 11.75 | 3370 | |||
2.8 | 700 | 62 | 11.26 | 3690 | |||
3.5 | 800 | 75 | 10.60 | 3915 | |||
4.1 | 900 | 89 | 10.14 | 4180 | |||
4.9 | 1000 | 104 | 9.58 | 4400 | |||
6.7 | 1250 | 142 | 8.80 | 4902 | |||
8.8 | 1500 | 186 | 8.04 | 5410 | |||
11.1 | 1750 | 235 | 7.44 | 5810 | |||
13.5 | 2000 | 289 | 6.93 | 6162 | |||
16.1 | 2250 | 346 | 6.50 | 6568 | |||
19.1 | 2500 | 404 | 6.19 | 6857 | |||
20.4 | 2610 | 453 | 5.98 | 7157 | |||
25 | 0.5 | 200 | 13 | 16.00 | 2011 | ||
0.8 | 300 | 20 | 15.00 | 2450 | |||
1.2 | 400 | 30 | 13.33 | 2729 | |||
1.6 | 500 | 40 | 12.50 | 3090 | |||
2 | 600 | 50 | 12.00 | 3400 | |||
2.5 | 700 | 63 | 11.20 | 3640 | |||
3.1 | 800 | 75 | 10.67 | 3947 | |||
3.7 | 900 | 90 | 10.00 | 4180 | |||
4.3 | 1000 | 105 | 9.52 | 4420 | |||
5.9 | 1250 | 145 | 8.62 | 4956 | |||
7.8 | 1500 | 190 | 7.89 | 5390 | |||
9.7 | 1750 | 238 | 7.37 | 5780 | |||
11.8 | 2000 | 290 | 6.90 | 6190 | |||
14.4 | 2250 | 345 | 6.52 | 6568 | |||
17.1 | 2500 | 413 | 6.06 | 6890 | |||
19.7 | 2750 | 470 | 5.85 | 7200 | |||
24.7 | 3260 | 618 | 5.34 | 7845 | 98℃ 10min | ||
EOLO CN15*5.5 | 22.2 | 0.5 | 200 | 11 | 18.02 | 1903 |
|
0.9 | 300 | 20 | 15.02 | 2375 | |||
1.3 | 400 | 29 | 13.86 | 2760 | |||
1.8 | 500 | 38 | 13.25 | 3040 | |||
2.3 | 600 | 51 | 11.75 | 3260 | |||
2.8 | 700 | 62 | 11.26 | 3540 | |||
3.5 | 800 | 75 | 10.60 | 3800 | |||
4.1 | 900 | 89 | 10.14 | 4020 | |||
4.9 | 1000 | 104 | 9.58 | 4220 | |||
6.7 | 1250 | 142 | 8.80 | 4660 | |||
8.8 | 1500 | 186 | 8.04 | 5070 | |||
11 | 1750 | 235 | 7.44 | 5460 | |||
13.5 | 2000 | 289 | 6.93 | 5796 | |||
16.3 | 2250 | 346 | 6.50 | 6142 | |||
19.4 | 2500 | 404 | 6.19 | 6363 | |||
21.9 | 2760 | 453 | 5.98 | 6845 | |||
25 | 0.5 | 200 | 13 | 16.00 | 1890 | ||
0.8 | 300 | 20 | 15.00 | 2328 | |||
1.2 | 400 | 30 | 13.33 | 2677 | |||
1.6 | 500 | 40 | 12.50 | 3033 | |||
2.1 | 600 | 50 | 12.00 | 3314 | |||
2.6 | 700 | 63 | 11.20 | 3527 | |||
3.1 | 800 | 75 | 10.67 | 3729 | |||
3.7 | 900 | 90 | 10.00 | 4043 | |||
4.3 | 1000 | 105 | 9.52 | 4229 | |||
5.9 | 1250 | 145 | 8.62 | 4650 | |||
7.8 | 1500 | 190 | 7.89 | 5074 | |||
9.8 | 1750 | 238 | 7.37 | 5397 | |||
12 | 2000 | 290 | 6.90 | 5694 | |||
14.8 | 2250 | 345 | 6.52 | 6110 | |||
17.55 | 2500 | 413 | 6.06 | 6323 | |||
26.4 | 3320 | 470 | 5.85 | 7450 | 100℃ 10min | ||
EOLO CN13*5 | 22.2 | 0.6 | 200 | 13 | 15.02 | 2463 |
|
1 | 300 | 22 | 13.51 | 2946 | |||
1.5 | 400 | 33 | 12.01 | 3357 | |||
2 | 500 | 44 | 11.26 | 3760 | |||
2.6 | 600 | 58 | 10.40 | 4150 | |||
3.2 | 700 | 71 | 9.85 | 4420 | |||
3.8 | 800 | 84 | 9.48 | 4705 | |||
4.5 | 900 | 100 | 9.01 | 5006 | |||
5.3 | 1000 | 118 | 8.50 | 5355 | |||
7.2 | 1250 | 160 | 7.82 | 5785 | |||
9.4 | 1500 | 209 | 7.19 | 6410 | |||
11.9 | 1750 | 264 | 6.62 | 6866 | |||
15.3 | 2040 | 340 | 6.01 | 7462 | |||
25 | 0.5 | 200 | 13 | 16.00 | 2537 | ||
0.9 | 300 | 23 | 13.33 | 2946 | |||
1.3 | 400 | 33 | 12.31 | 3393 | |||
1.8 | 500 | 45 | 11.11 | 3806 | |||
2.3 | 600 | 58 | 10.43 | 4151 | |||
2.8 | 700 | 70 | 10.00 | 4460 | |||
3.4 | 800 | 85 | 9.41 | 4748 | |||
4 | 900 | 100 | 9.00 | 4970 | |||
4.6 | 1000 | 115 | 8.70 | 5300 | |||
6.4 | 1250 | 160 | 7.81 | 5830 | |||
8.4 | 1500 | 210 | 7.14 | 6368 | |||
10.6 | 1750 | 265 | 6.60 | 6863 | |||
12.9 | 2000 | 323 | 6.20 | 7298 | |||
18.8 | 2580 | 470 | 5.49 | 8244 | 70℃ 10min |
